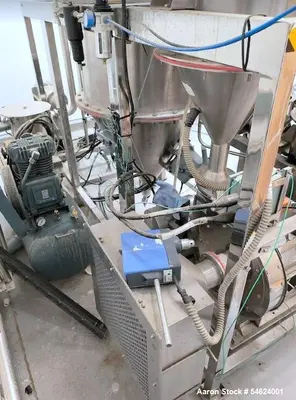

Used Hemraj PSD 02 Stainless Steel Spray Dryer – 22 Lb/Hr Water Evaporation, Two-Fluid Nozzle Atomization

Manufacturer Information
Hemraj
Hemraj manufactures industrial processing equipment for drying and powder-production applications. The PSD 02 spray dryer is designed to convert compatible liquid feeds, solutions, suspensions, or slurries into dry powders through atomization into a controlled stream of heated air.
This unit features 316 stainless steel product-contact parts and 304 stainless steel non-contact components, making it suitable for compatible sanitary, chemical, agricultural, food ingredient, and specialty powder-processing applications.
Description
Available for sale is a used Hemraj Model PSD 02 spray dryer, built in 2014, with a rated water evaporation capacity of approximately 10 kg/hr (22 lb/hr).

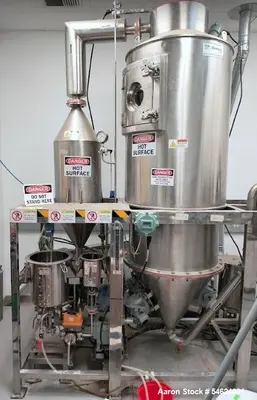

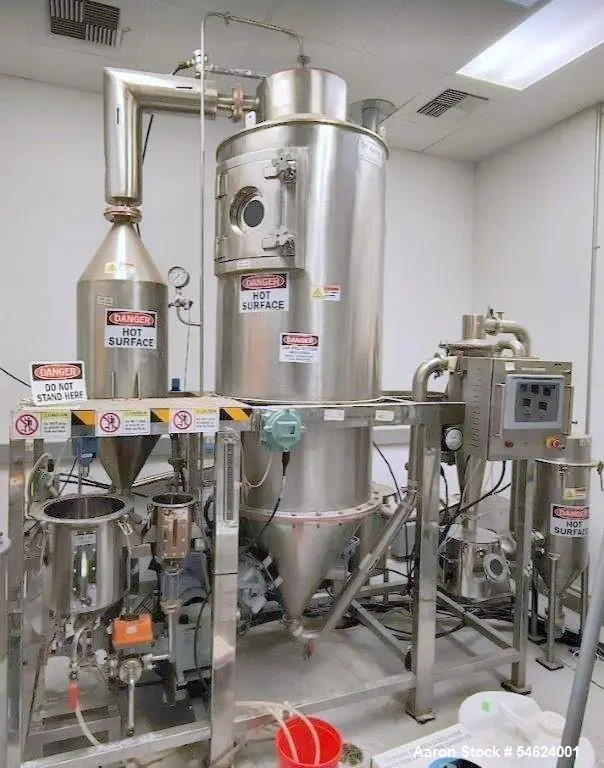

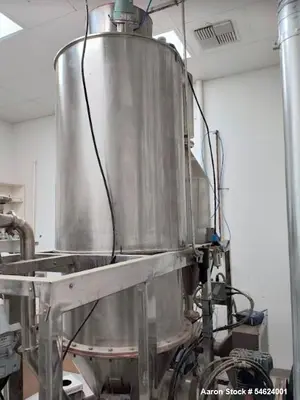

The drying chamber measures approximately 36" diameter x 69" straight side and features 316 stainless steel product-contact parts, with non-product-contact components constructed of 304 stainless steel.
Atomization is accomplished through a two-fluid compressed-air nozzle, creating fine droplets of the liquid feed for rapid moisture evaporation inside the drying chamber. At a feed containing approximately 30% dry solids, the system has a stated feed rate of approximately 14.5 kg/hr (32 lb/hr) and powder production rate of approximately 4.5 kg/hr (10 lb/hr).
The system is designed for an inlet temperature ranging from ambient up to approximately 260°C (500°F), with a stated outlet temperature of approximately 95–100°C (203–212°F). Heat is supplied by an electric air heater.
Powder is recovered using a "blown down" powder collection method. Design conditions include approximately 30–40°C (86–104°F) ambient temperature, 760 mm Hg atmospheric pressure, and 50% relative humidity.
Previously used in the production of organic biopesticides, this Hemraj PSD 02 may be suitable for research, pilot, specialty chemical, agricultural, and other lower-throughput powder-production applications.
Specifications

Specification
Details

Manufacturer
Hemraj

Model
PSD 02

Equipment Type
Spray Dryer

Product Contact Material
316 Stainless Steel

Non-Contact Material
304 Stainless Steel

Drying Chamber Diameter
Approx. 36"

Chamber Straight Side
Approx. 69"

Atomizer
Two-Fluid Compressed-Air Nozzle

Water Evaporation Capacity
10 kg/hr / Approx. 22 lb/hr

Feed Rate
14.5 kg/hr / Approx. 32 lb/hr

Feed Basis
Approx. 30% Dry Solids

Powder Production Rate
4.5 kg/hr / Approx. 10 lb/hr

Inlet Temperature
Ambient to 260°C / 500°F

Outlet Temperature
95–100°C / 203–212°F

Design Ambient Temperature
30–40°C / 86–104°F

Atmospheric Pressure
760 mm Hg

Relative Humidity
50%

Powder Collection
"Blown Down" Method

Heat Source
Electric Air Heater

Electrical
3 Phase / 50 Hz / 440V

Year Built
2014

Previous Use
Organic Biopesticides

Condition
Used

Typical Applications

Spray drying
Powder production
Liquid-to-powder conversion
Slurry drying
Solution drying
Suspension drying
Specialty chemical processing
Agricultural product processing
Pilot-scale powder production
Research and product development
Ingredient drying
Controlled moisture removal

Products This Spray Dryer Could Be Used For

Biopesticide formulations
Agricultural powders
Specialty chemical powders
Compatible food ingredients
Botanical products
Nutritional ingredients
Water-based formulations
Suspensions and slurries
Solutions and emulsions
Specialty additives
Research and development formulations
Other compatible heat-stable liquid feeds

Actual feed rate, evaporation capacity, powder yield, moisture content, and product suitability depend on feed solids, viscosity, density, heat sensitivity, inlet/outlet temperatures, atomization conditions, ambient conditions, and desired finished-powder properties.
Frequently Asked Questions

What is the evaporation capacity? The Hemraj PSD 02 has a stated water evaporation capacity of approximately 10 kg/hr, or 22 lb/hr.

How much finished powder can it produce? At the stated design basis of approximately 30% dry solids, the specified powder rate is approximately 4.5 kg/hr (10 lb/hr) from a 14.5 kg/hr feed rate.

What type of atomizer does it use? The dryer uses a two-fluid compressed-air nozzle atomizer, which atomizes the liquid feed into fine droplets for rapid drying.

What materials are used in construction? Product-contact components are 316 stainless steel, while non-product-contact components are 304 stainless steel.

What was the spray dryer previously used for? The unit was previously used for organic biopesticides. Buyers should evaluate cleaning requirements and material compatibility before introducing a new product.

Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with dismantling and rigging coordination, loading, domestic and international freight, and logistics planning for spray dryers and other industrial process equipment.
