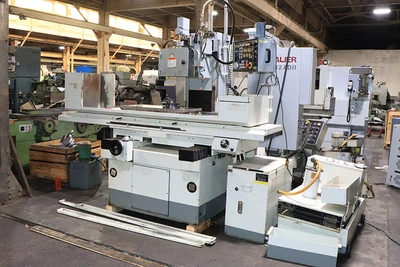

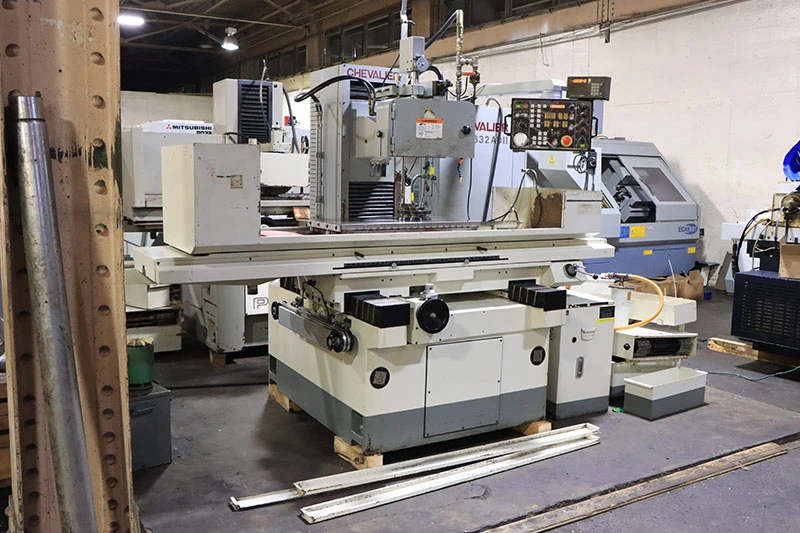

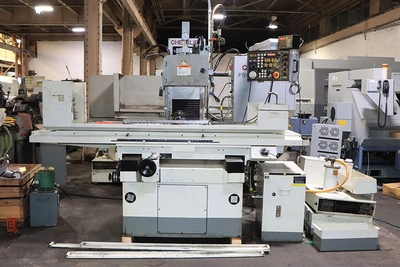

USED 2006 Chevalier FSG-1632ADII, 2006, AUTO IDF, 3X AUTO FEEDS,

16" X 32" CHEVALIER PRECISION SURFACE GRINDER

 W/PROGRAMMABLE MICROPROCESSOR AUTOMATIC

 INCREMENTAL DOWNFEED CONTROL (PENDANT MOUNTED)

MODEL: FSG-1632ADII

S/N: GB95A005

NEW: 2006

TABLE SIZE........................... 15-3/4" x 31-1/2"

MAX. GRINDING CAPACITY .................. 16" X 32"

MAX. LONGITUDINAL TABLE TRAVEL, HYD. .... 32-5/8"

MAX. LONGITUDINAL TABLE TRAVEL, MANUAL .. 33-3/8"

MAX. CROSSFEED TRAVEL, AUTOMATIC ........ 16"

MAX. CROSSFEED TRAVEL, MANUAL ........... 18"

DIST. FROM SPINDLE CENTER TO TABLE ...... 24-3/8"

VARIABLE TABLE SPEED, HYDRAULIC ......... 16' TO 82' FPM

AUTOMATIC CROSSFEED INCREMENT ........... 1/8" TO 2"

CROSSFEED HANDWHEEL, PER GRADUATION ..... 0.0025"

PER REVOLUTION .......................... 0.25"

MICROFEED, PER REVOLUTION ............... 0.005"

PER GRADUATION .......................... 0.00005"

AUTOMATIC INCREMENTAL DOWNFEED ...... 0.000050" TO .002"

AUTO DOWNFEED DIAL PER GRADUATION ....... 0.0005"

PER REVOLUTION .......................... 0.05"

MICROFEED ........................... 0.00005"/.0001"

RAPID TRAVERSE RATE ..................... 8" IPM

SPINDLE MOTOR ........................... 5 HP

STANDARD GRINDING WHEEL ............. 14"DIA. x 2"W x 5"B

APPROX. WEIGHT .......................... 6,400 LBS

APPROX. DIMENSIONS .................. 102" x 69" x 75"H

  EQUIPPED WITH:

HYDRAULICALLY ACUTATED LONGITUDINAL TABLE FEED

ELECTROMECHANICALLY ACTUATED FEED OF SADDLE

AC SERVO VERTICAL DRIVE

PENDANT MOUNTED AND MICROPROCESSOR CONTROLLED AUTOMATIC

  INCREMENTAL DOWNFEED OF GRINDING WHEELHEAD FROM 0.00005"

  T0 0.002" IN SURFACE OR PLUNGE MODES OF OPERATION.  FULLY

  AUTOMATIC GRINDING CYCLE INCLUDING RAPID ADVANCE OF

  GRINDING WHEELHEAD, 0 T0 7 SPARKOUT PASSES, AND RETRACTION

  OF WHEELHEAD TO A PRE-SET DISTANCE AT THE COMPLETION OF

  THE CYCLE.

TABLE AND SADDLE GUIDE WAYS MADE OF SPECIAL STEEL RAILS

  WITH HIGH ACCURACY STEEL ROLLERS

PRECISION NEEDLE ROLLER BEARINGS USED ON THE ELEVATING

  GUIDE WAYS

FINE (MICRO) FEEDS GRADUATED TO .00005" FOR VERTICAL &

  CROSS FEEDS

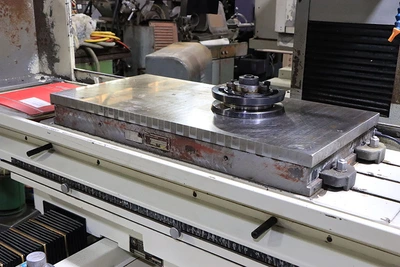

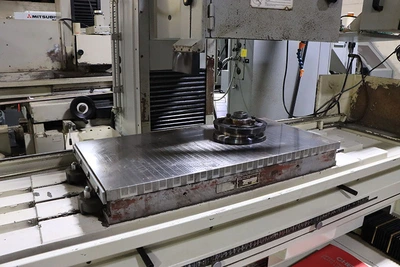

15-3/4" X 31-1/2" KANETSU "CROSS POLE"

  ELECTRO-MAGNETIC CHUCK WITH A PENDANT MOUNTED

  POTENTIOMETER FOR VARIABLE HOLDING POWER AND A

  SELECTOR SWITCH FOR AUTOMATIC DEMAGNETIZATION

  OF WORK PIECE.

COOLANT SYSTEM w/PAPER FILTRATION

"SONY" 1-AXIS DIGITAL READOUT

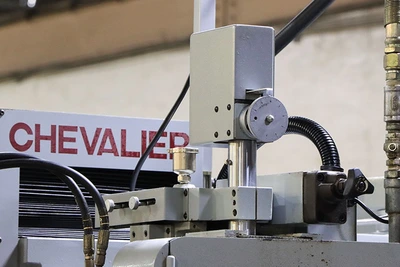

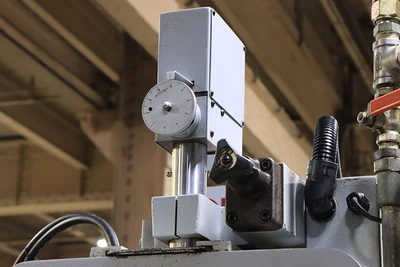

POWER "OVER-THE-WHEEL" DRESSER, .00025" GRADUATION

EXTERNAL HYDRAULIC PUMP AND TANK

5 HP 3/60/230-460 VOLT DRIVE SPINDLE MOTOR

MACHINE IS PRESENTLY WIRED FOR 3/60/230 VOLTS

LINK TO VIDEO: https://youtu.be/tAt0ih7pZDc?si=RtJVza6L-kXVdIGr

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT  **

FOR MORE INFORMATION: Call Andy at 973-497-7600
