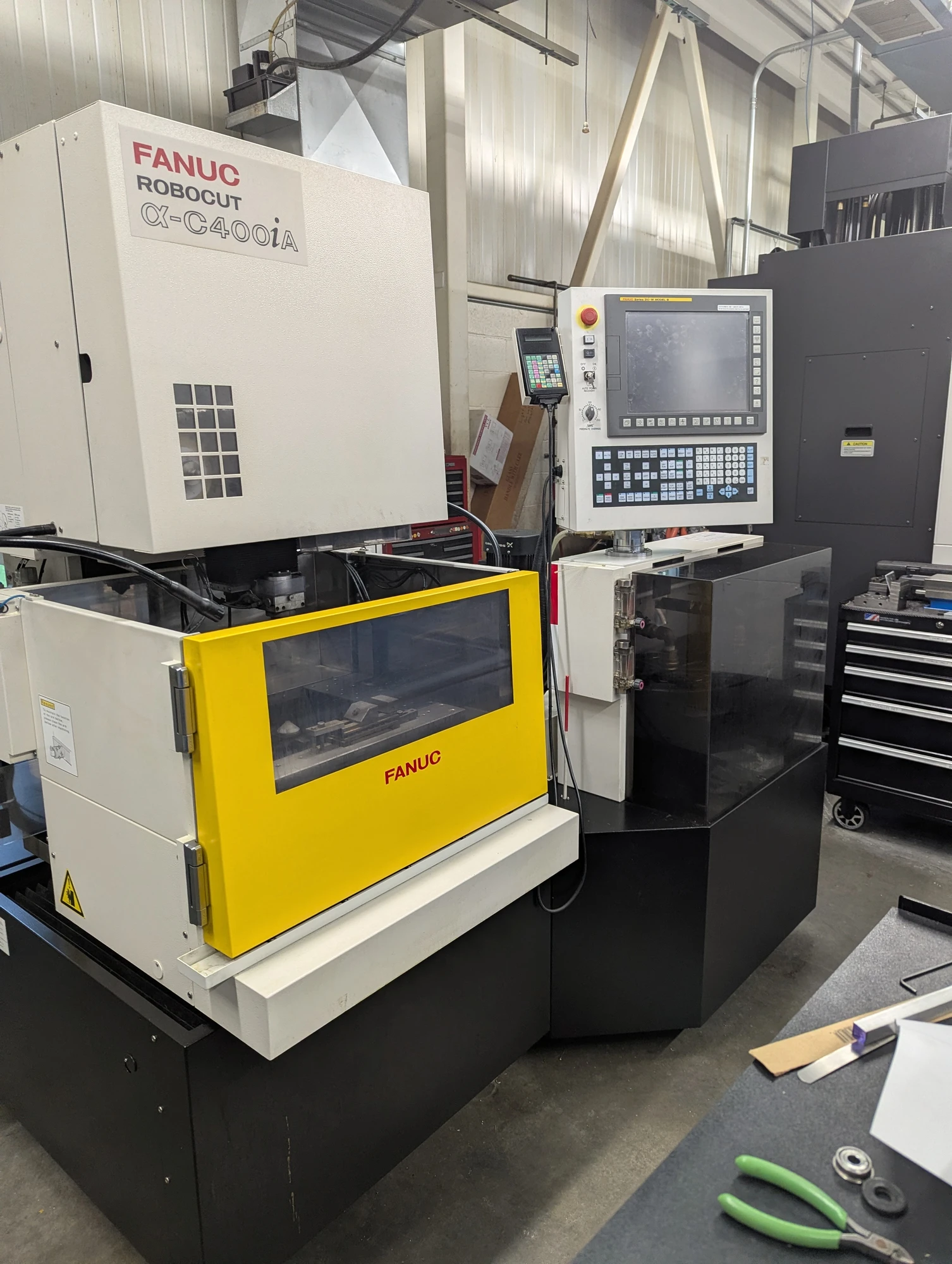

USED 2012 Fanuc Robocut Alpha C-400iA, 2012, AWT, 31iB CNC

  Fanuc Robocut Alpha C400iA CNC Wire EDM

     with Fanuc 31i-WB CNC Control

** This Machine has the "Micro Fine Finish

   Power Supply Option.  This Means you can

        do up to 6 Passes on a Part."

        *** Made in Japan ***

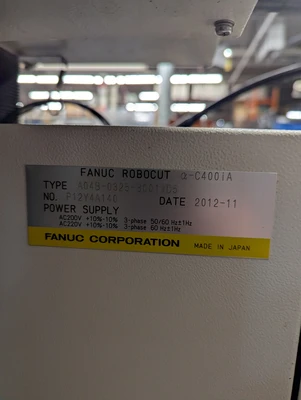

    S/N:  P12YA140     New: 2012

Special Note, Hours on Machine:

22,861 Hours Cutting Time

Machine Tool Features:

• Travel

   X Axis............................... 14.6”

   Y Axis............................... 10.6”

   Z Axis .............................. 10.2”

   UV axes travel ...................... ± 2.362”

   Rapid traverse ...................... 1 ~ 50/ min.

   Work piece thickness @ taper Angle .. ± 12 @ 10 in

   Manual threading (jet nozzle removed) ± 30 @ 3.26 in

    * Requires optional Diamond guides ± 45 @ 1.6 in

• Positioning accuracy (X, Y) .......... ± 0.0001

• Repeatability (X, Y )................. ±0.000050

• Axes drive motors..................... AC Servo Motors

                                          Direct coupled to ball screw

• Maximum cutting speed***

   0.012” brass wire guides 2.4 in.

     thick tool steel .................. 31 square in./hour

   0.012” Coated wire 2.4”

     thick D2 tool steel ............... 33.5 square in./hour

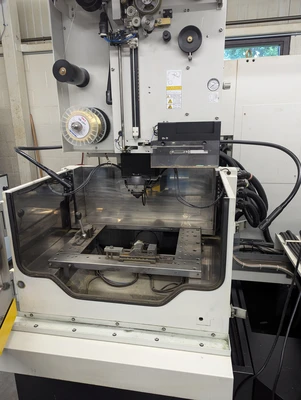

• Internal Worktank Size (X x Y x Z) ... 30.5” x 23.6” x 9.8”

• Maximum submerged cutting depth ...... 9.84”

• Maximum work piece weight ............ 1,100 lbs

• Wire feed system

    Wire feed rate ..................... 0 ~ 590 IPM

    Wire tension ....................... 200 ~ 2,500 g

    Maximum wire spool weight .......... 35 lbs

    Wire diameter (min. to max.) ....... 0.004 to 0.012”

• Wire guide – upper & lower guide ..... Round diamond die guide

• Dielectric fluid system

    Tank cap. .......................... 145 gal

    Chiller ............................ Standard

    Dielectric fluid ................... Deionized water

    Resin bottle (one plus a spare) .... 1 cu. ft

    Filters (2 each).................... Cartridge

    Filtering precision ................ 3 Micron

    Dielectric fluid,

     resistively control ............... NC Controlled

• Cutting conditions

  Auto selection of 9 choices for 1 Cut ... Standard

  Automatic selection of 9 choices

   for multiple cut .................... Standard

  Automatic selection of 3 choices

    for micro finish cut ............... Standard

• Programming methods

  G-Code Programming.................... Standard

  Built-in easy conversational ......... Standard

  Off-line system via RS232 or

    Ethernet interface ................. Standard

Power Supply Features:

* Power Supply

   Pulse generator type ................ Transistor driven

  AC or DC.............................. Switchable

  Power supply circuit ................. Transistor pulse circuit

  No loading voltage ................... Setting range 0 – 13

  Cutting voltage....................... Setting range 3 – 18

  On time .............................. Setting range 1 – 255

  Off time ............................. Setting range 2 – 300

  Servo voltage ........................ Setting range 0 – 255

  Programmable flushing ................ Setting range 1 - 18

  Pulse mode............. Setting range – 1, 2, 3, 4, 11, 12, 13,

                                          14 21, 31, 33, 41, 43

• Total power required ................. 13 KVA

    (200/220 V ± 10%, 3 Phase, 60 Hz)

• Floorpace............................. 92” x 105”

• Machine weight........................ 4,000 lbs.

• Controlled axes ...................... X, Y, U, V, Z

                                   Plus optional rotary axis

• Least input increment ................ 0.000004”

• Least command increment .............. 0.00000004”

• Interpolation ........................ Linear, Circular

Additional Features of the FANUC C400iA Series

• Fanuc series 31i-WB CNC control with (1) 64bit and

   (3) 32 bit processors

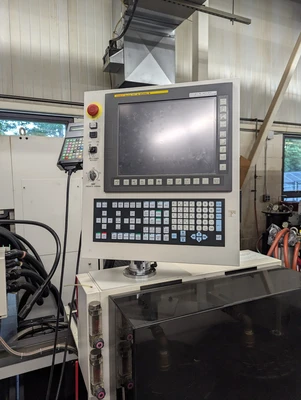

• 15” Color LCD with advanced Touch Screen technology

• Swivel Control Panel for easier operation

• Heidenhain linear glass scales – X and Y Axis only

• Fanuc serial/digital AC servo motors

• NC Command Resolution of 0.00000004”

• Seven (7) controlable axes (X, Y, U, V, Z, A & B)

• 30 degree + taper cutting capability (optional guides required)

• Absolute position encoder system for X, Y, U, V & Z axes

   (no need to home the machine after start-up)

• Wire Tension Controlled via Twin Servo Motors (no powder brakes)

• Independent column mounted U and V axis slides

• Anti-Crash protection (X, Y, U, V, Z)

• Fanuc high speed fully digital / AC power supply

• Full Function Hand Held Pendant

• Simple and Quick On-Board Conversational Programming

• Servo Controlled automatic water level control in work tank

• Operator guidance screens for operation, alarms,

   maintenance and parts

• (1) RS232C • (1) Ethernet port • (2) USB Ports

• (1) PCMCIA slot • Part program storage capacity

    4 Megabyte (in control memory)

• Automatic power recovery

• Automatic restart

• Wire center path calculation G41/42

• Programmable Flushing

** This Machine has the "Micro Fine Finish

   Power Supply Option.  This Means you can

        do up to 6 Passes on a Part."

• AWF2 Function:

  Fanuc is world renowned for having the

  best AWF system on the market. The simplicity and

  reliability make unattended operation a true reality.

  Further upgraded for the iE series, the AWF2 offers the

  following enhancements: ü Submerged initial threading up

  to 200mm thick work pieces ü Improved Ai Automatic Wire

  Repair in the cutting gap up to 150mm thick work pieces

  AWF monitor screen allows easy set-up of the following

  advanced functions: ü AWF skip function ü Retry skip

  function ü AWF result screen ü RE-machining function

  ü Pecking retry function ü Full-Retry function ü Retry

  locations display ü Wire breakage locations display.

 Properly De-Installed by Fanuc/Methods

  EDM Including with Shipping Brackets

** Superior Condition & Appearance **

** F.O.B. Our Harrison, NJ warehouse **

FOR MORE INFORMATION: Call Andy at 973-497-7600
