USED 2024 UNIVERSAL 2024 UNIVERSAL UNI 25

General Description:

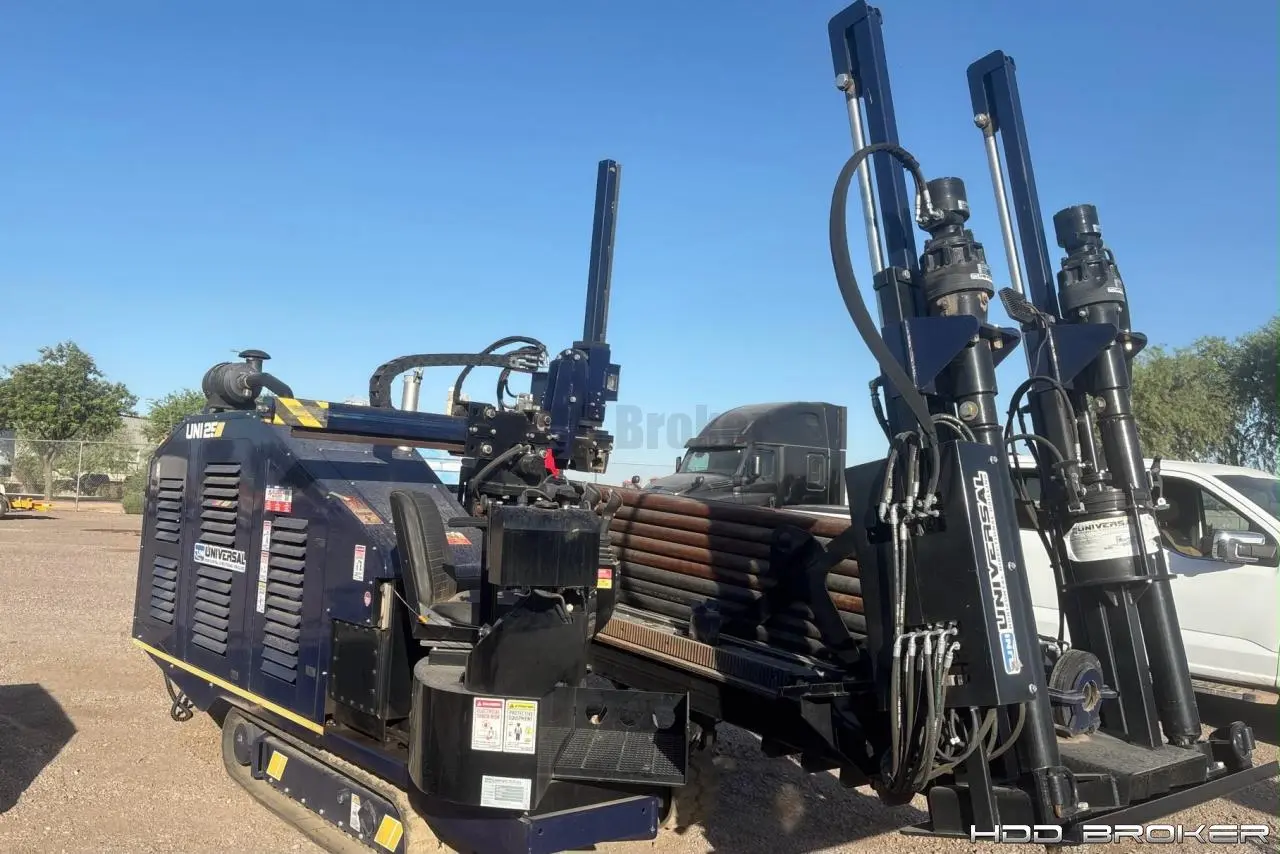

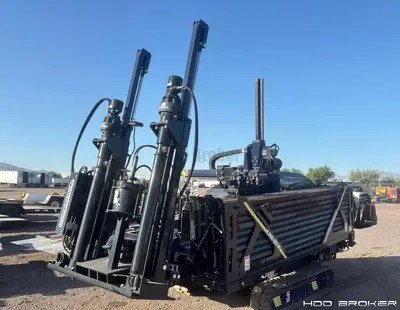

2024 Universal UNI-25 Directional Drill.
Seller States: 28 Hours only!
Pipe:
(50) Rods / 500 Feet of Drill Pipe is included.
Recent Work/Modifications:
Seller States: One owner, well-maintained, stored and operated with minimal use since new.
Additional Information:
MANUFACTURES EQUIPMENT SPECIFICATIONS:
-Max Thrust/Pullback: 25,000 lbs.
-Max Spindle Torque: 4,000 ft-lbs.
-Max Spindle Speed: 180 RPM.
-Max Carriage Speed: 340 ft/min.
-Operating Angle: 18 degrees.

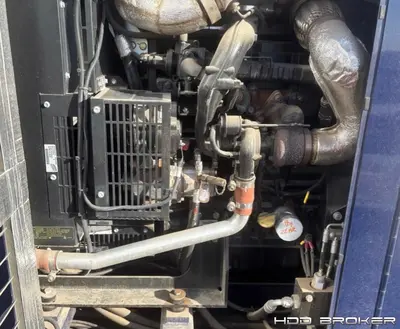

-Engine: Turbo diesel, 132 HP @ 2,500 RPM, Tier IV certified.
-Mud Pump: Kerr KM-3300PT, up to 72.9 GPM, 1,000 PSI max.
-Drill Pipe: 2.375" diameter, 10 ft length, Firestick I #600 connection.
-Rod Rack Capacity: 50 rods (500 total feet).
-Operating Weight: 17,220 lbs (with rods).
-Overall Length: 220 in.
-Overall Width: 94 in.
-Overall Height: 98 in.
-Fuel Tank Capacity: 30 gallons.
-Hydraulic Tank Capacity: 35 gallons.
Seller States:
-Like-New HDD Ready to go straight to work.
-Full Rack of drill rods included (500 ft total capacity).
-Tier IV Certified Turbo Diesel engine for job-site compliance.
-High-output Kerr Mud Pump for reliable fluid delivery on longer bores.
-Strong Thrust and torque output suited for utility and pipeline installation work.
NOT INCLUDED - A Drill Head is available at an additional cost.
