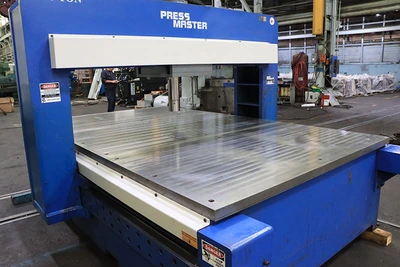

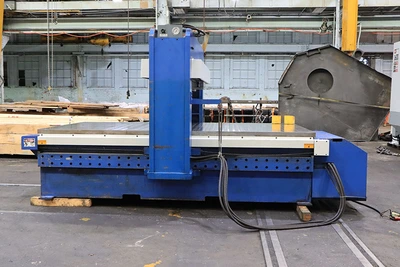

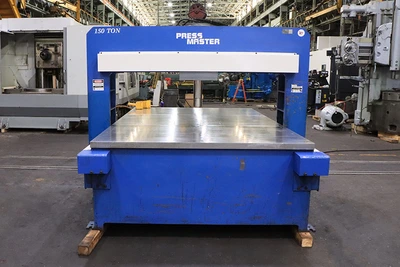

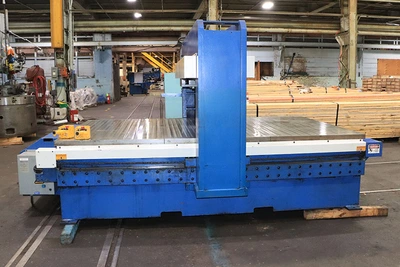

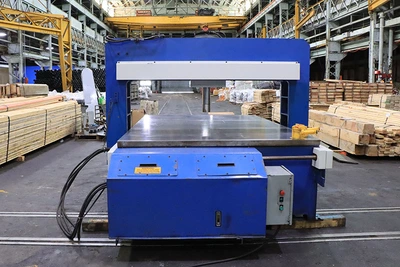

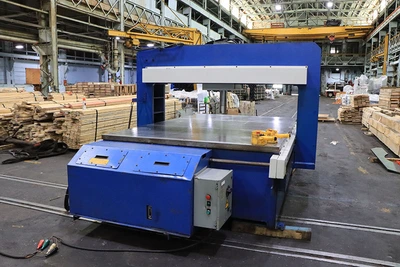

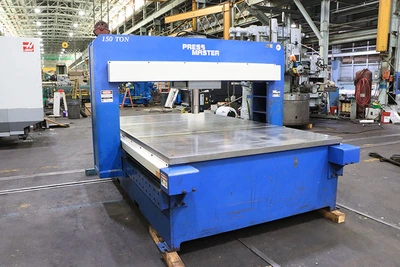

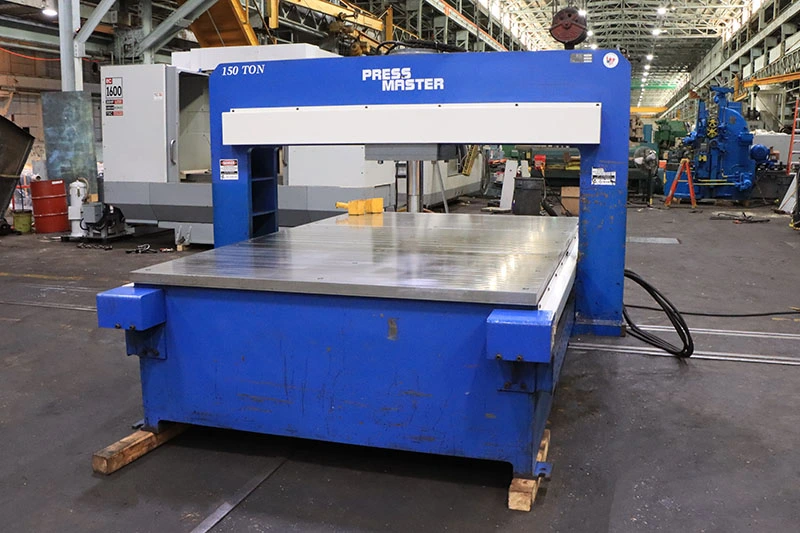

USED 2015 Pressmaster GST-150-6/10

6' X 10' 150 TON PRESSMASTER GANTRY

STYLE HYD. STRAIGHTENING PRESS

MDL GSP-150T-6/10   S/N 915016-02   NEW 2015

RATED CAPACITY, TONNAGE ................. 150

STROKE .................................. 16"

BORE .................................... 11"

RAM SPEED PRESS ......................... 6 IPM

          ADVANCE ....................... 24 IPM

          RETURN ........................ 28 IPM

TABLE SIZE (RIGHT TO LEFT) .............. 72"

TABLE SIZE (FRONT TO BACK)............... 120"

DAYLIGHT ................................ 15.5"

RAM TRAVEL (LEFT TO RIGHT) .............. 56.5"

MOTOR SPECS HP .......................... 10 HP

AMP DRAW ................................ 14

VOLTAGE ................................. 460 / 3 PH

WEIGHT ....................... 16,000 LBS.

SHIPPING DIMENSIONS .......... 130"L X 106"W X 93"H

STANDARD FEATURES:

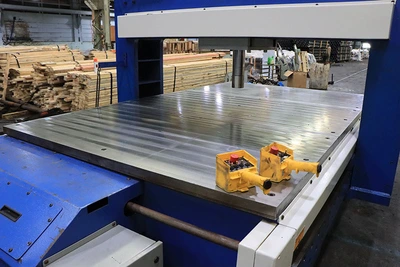

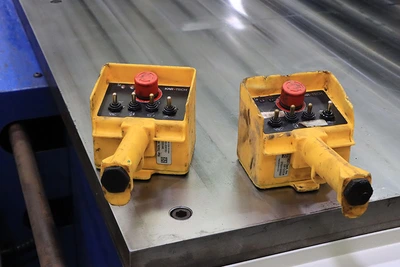

- HAND HELD REMOTE

- POWERED MOVEABLE WORKHEAD - FOR OFF CENTER WORK ALLOWS OPERATOR TO POSITION THE CYLINDER FROM LEFT TO RIGHT AND FRONT TO BACK WITH THE TOUCH OF A LEVER.

- CYLINDER ACTIVATION - IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE MORE THE RAM MOVEMENT IS ACCELERATED. THIS ALLOWS THE OPERATOR TO CONTROL THE PROPER SPEED FOR THE TASK.

- PRESSURE REGULATOR - LIMITS RAM PRESSURE.

- FLAT RAM NOSE - CAN BE EASILY CHANGED TO ALLOW THE USER TO ADAPT THE PRESS TO A SPECIFIC JOB.

- LOW PRESSURE - HYDRAULIC SYSTEM MAINTAINS LOWER OIL TEMPERATURES, RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION.

- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY, AND AVAILABLE THROUGHOUT NORTH AMERICA.
