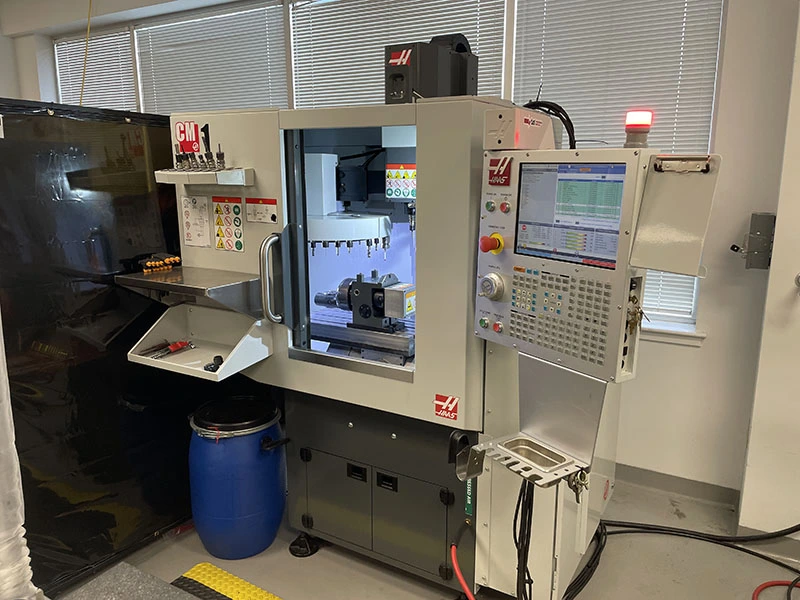

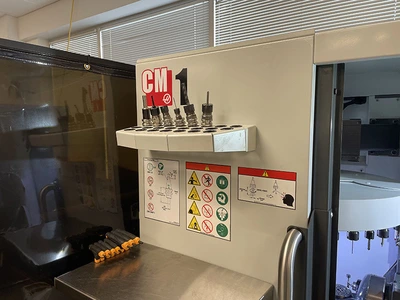

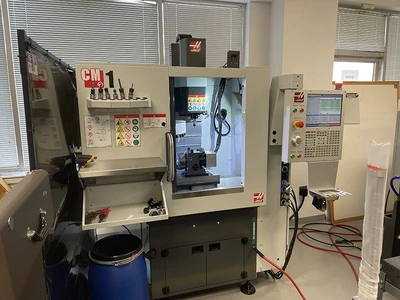

USED 2020 Haas CM-1 5-Axis, NextGen, TRT70 Tbl, 50,000 RPM

HAAS COMPACT MILL

5-AXIS MACHINING CENTER

MODEL: CM-1 w/TRT70 TABLE

S/N: 1177715, MFG: 2020

SPECIFICATIONS:

TABLE DIMENSIONS ...................... 22.5" X 10"

TABLE LOAD CAPACITY ................... 150 LBS.

X - AXIS TRAVEL ....................... 12"

Y - AXIS TRAVEL ....................... 10"

Z - AXIS TRAVEL ....................... 14"

SPINDLE NOSE TO TABLE ................. 2.6" - 16.6"

SPINDLE SPEED ......................... 50,000 RPM

MAIN MOTOR ............................ 5 HP

SPINDLE TAPER ......................... ISO/20

RAPID TRAVERSE ........................ 757 IPM

MAX. CUTTING .......................... 500 IPM

TOOL CHANGER .......................... 36 ATC

MAX. TOOL DIAMETER  ................... 2.3"

MAX. TOOL WEIGHT ...................... 5 LBS.

TOOL CHANGE TIME....................... 3.2 SECS

APPROXIMATE MACHINE WEIGHT ............ 2500 lbs.

EQUIPPED WITH:

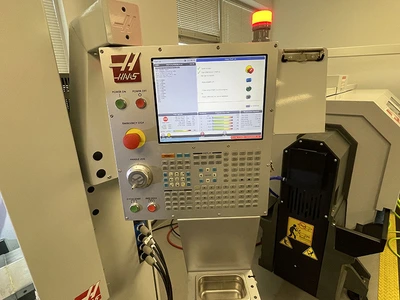

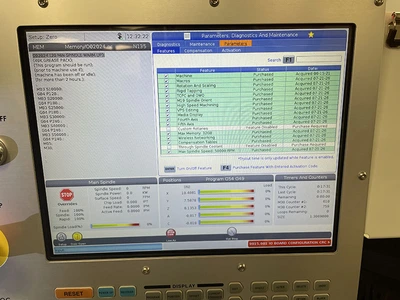

HAAS NEXTGEN 5-AXIS CONTROL:

  HIGH SPEED MACHINING, ROTATION & SCALING, MACROS,

  RIGID TAPPING, DYNAMIC WORK OFFSET & TOOL CENTER POINT

  MEDIA DISPLAY M-CODE, VISUAL PART PROG. (VPS EDITING)

  ETHERNET, USB PORT, 32GB MEMORY, WIFI CAMERA

  HAAS CONNECT:REMOTE MONITORING, WIFI CONNECTION

4TH & 5TH AXIS DRIVES & WIRING

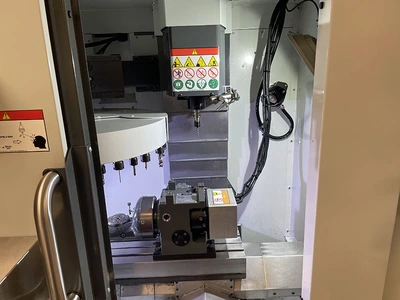

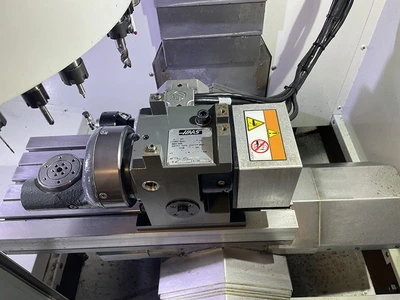

HAAS TRT70 DUAL AXIS TILTING ROTARY TABLE

RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)

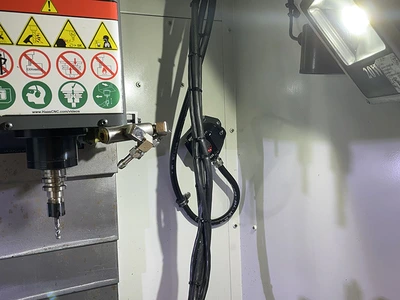

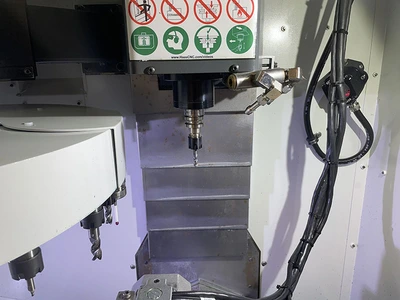

50,000 RPM SPINDLE (ISO 20 TAPER)

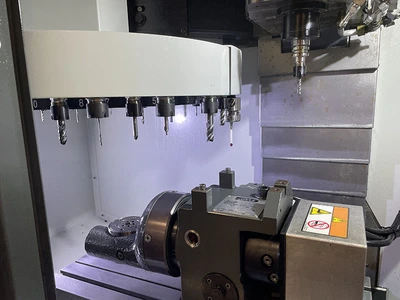

36 STATION AUTOMATIC TOOL CHANGER

WINDOW AIR BLAST

ASSORTMENT OF TOOLHOLDERS & TOOLING

REPLACEMRNT COST, AS EQUIPPED $155,000

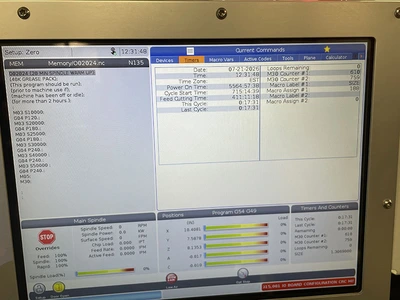

AS OF AUGUST 2026 CUTTING TIME 411 HOURS

MACHINE IS IN LIKE NEW CONDITION!

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call Sales at 973-497-7510
