USED ALFA LAVAL NX314

Manufacturer Information
Alfa Laval
Alfa Laval is a globally recognized manufacturer of separation, heat-transfer, and fluid-handling equipment. Its horizontal decanter centrifuges are used for continuous liquid-solid separation, clarification, dewatering, and solids concentration across wastewater, food and beverage, chemical, pharmaceutical, biotechnology, rendering, and other industrial processes.
The Alfa Laval NX314 uses high-speed centrifugal force and a continuous scroll conveyor to separate solids from liquid in compatible process streams.
Description

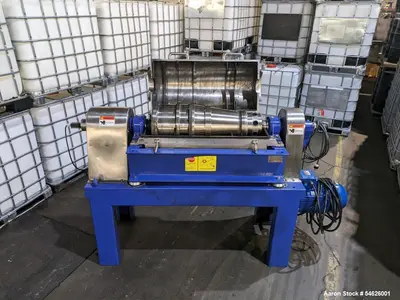

Available for sale is a used Alfa Laval Model NX314 horizontal decanter centrifuge, built in 2018, with less than 10 reported operating hours.
The centrifuge features a 14" diameter bowl with stainless steel product-contact surfaces and a maximum bowl speed of approximately 3,250 RPM. Its stated hydraulic capacity is up to 20 cubic meters per hour (approximately 88 GPM), depending on feed characteristics and required separation performance.
For improved wear resistance in abrasive applications, the internal conveyor features tungsten carbide hard-surfaced flights.

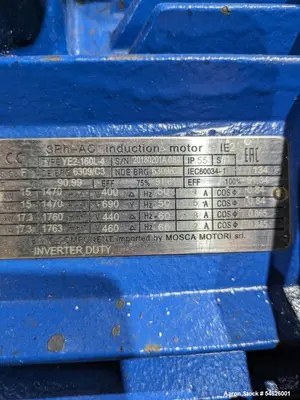

The centrifuge is driven by a 15 HP motor with variable-frequency drive (VFD). A planetary gearbox with torque limiter controls the relationship between the bowl and conveyor, while integrated vibration and over-torque protection provide additional equipment safeguards.
The package includes a 25 GPM progressive cavity feed pump for controlled introduction of feed material into the centrifuge. Separated liquid and solids utilize gravity discharge.
A NEMA 4 local control panel is also included, providing a protected operator-control interface suitable for compatible industrial environments.
With less than 10 reported hours, stainless steel contact surfaces, wear-resistant conveyor flights, VFD drive, feed pump, and controls, this NX314 presents an attractive option for facilities requiring continuous liquid-solid separation or dewatering capacity.
Serial Number: 2929895.
Specifications

Specification
Details

Manufacturer
Alfa Laval

Model
NX314

Equipment Type
Horizontal Decanter Centrifuge

Bowl Diameter
14"

Product Contact Surfaces
Stainless Steel

Maximum Bowl Speed
3,250 RPM

Maximum Hydraulic Capacity
20 m³/hr / Approx. 88 GPM

Conveyor Flights
Tungsten Carbide Hard Surfaced

Main Motor
15 HP

Speed Control
VFD

Feed Pump
Progressive Cavity

Feed Pump Capacity
25 GPM

Gearbox
Planetary

Torque Limiter
Included

Vibration Protection
Included

Over-Torque Protection
Included

Liquid Discharge
Gravity

Solids Discharge
Gravity

Control Panel
NEMA 4 Local Panel

Reported Operating Hours
Less Than 10 Hours

Serial Number
2929895

Year Built
2018

Condition
Used

Typical Applications

Liquid-solid separation
Sludge dewatering
Solids concentration
Liquid clarification
Process-water treatment
Wastewater treatment
Product recovery
Byproduct separation
Industrial effluent processing
Food processing
Chemical processing
Continuous centrifugal separation

Products & Process Streams This Centrifuge Could Be Used For

Wastewater sludge
Biological sludge
Industrial process slurries
Food-processing solids
Fermentation streams
Starch-containing slurries
Protein-bearing process streams
Mineral slurries
Chemical suspensions
Biomass slurries
Process-water solids
Other compatible liquid-solid mixtures

Actual throughput and separation efficiency depend on solids concentration, particle size and density, liquid viscosity, feed temperature, differential speed, bowl speed, feed rate, and required cake or centrate characteristics.
Frequently Asked Questions

What is the capacity of the Alfa Laval NX314? The centrifuge has a stated maximum hydraulic capacity of approximately 20 m³/hr, or 88 GPM. Actual processing capacity depends heavily on the feed and desired separation results.

How many operating hours are on this centrifuge? The unit has less than 10 reported operating hours, making runtime an important feature of this particular machine.

What size and speed is the bowl? The NX314 features a 14" bowl with a stated maximum operating speed of approximately 3,250 RPM.

Does it have wear protection? Yes. The conveyor flights have tungsten carbide hard surfacing, which provides additional wear resistance for compatible abrasive feed materials.

What auxiliary equipment is included? The package includes a 25 GPM progressive cavity feed pump, planetary gearbox with torque limiter, VFD, vibration and over-torque protection, and NEMA 4 local control panel.

Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with loading and rigging coordination, domestic and international freight, and logistics planning for decanter centrifuges, pumps, controls, and other industrial separation equipment.
