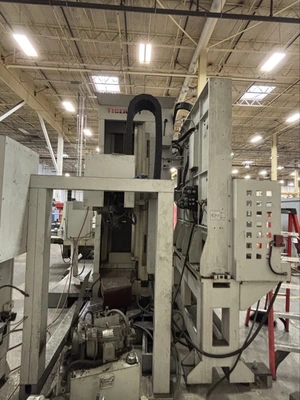

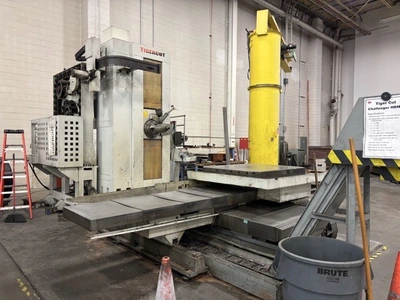

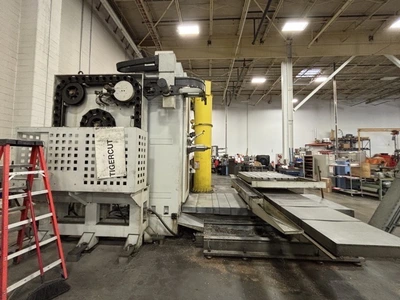

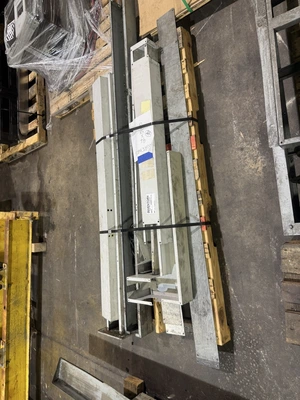

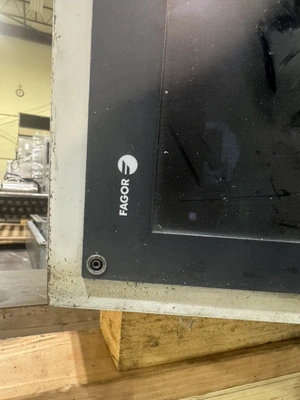

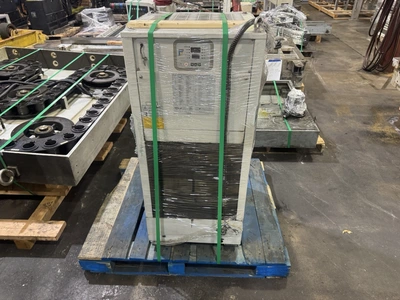

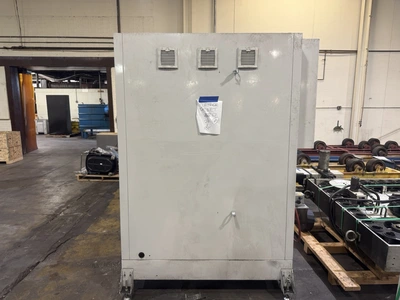

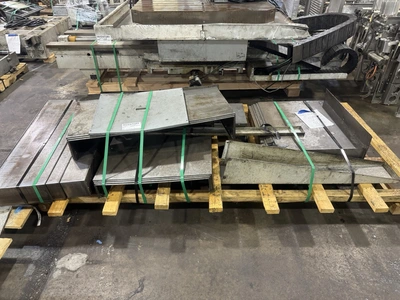

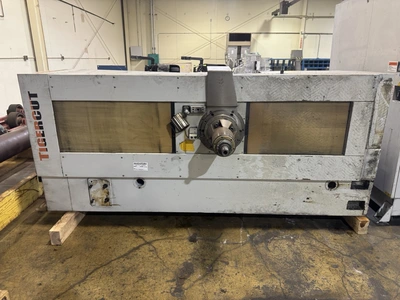

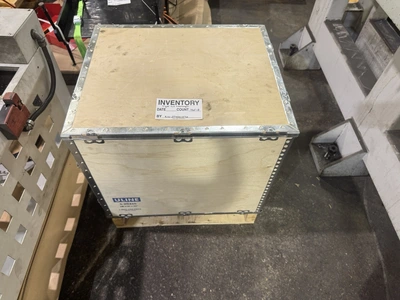

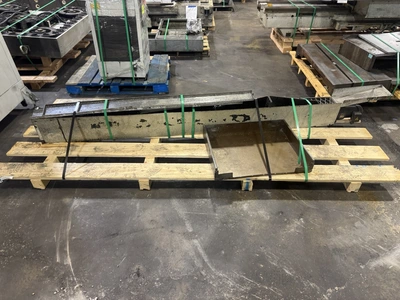

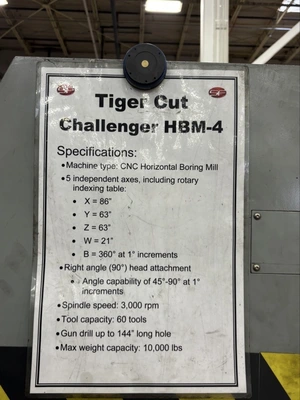

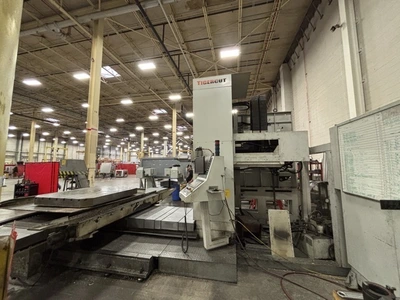

USED 2007 CHALLENGER HBM-4

X axis travel 86.61”
Y axis travel 62.99”
Z axis travel 62.99”
W axis travel 21.65”

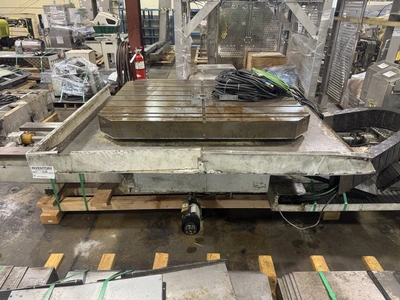

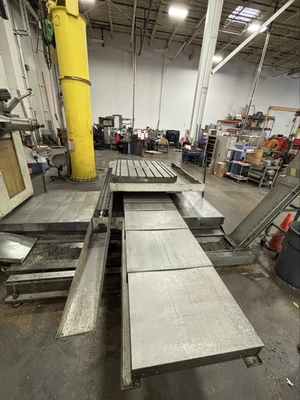

Table: 47.54”×59.05”
Table max loading weight: 1100 lbs.
Table index: 1°
Spindle taper: ISO No.50
Spindle speed: 35~3000rpm
Spindle step 2 steps(auto.)
Quill diameter (W axis) Ø4.3”
FEED
X axis rapid feed 472.44”/min
Y axis rapid feed 472.44”/min
Z axis rapid feed 472.44”/min
3 axes cutting feed 39.37” ~ 196.85”/min
B axis cutting speed: 11rpm

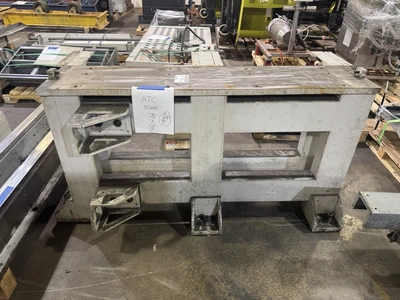

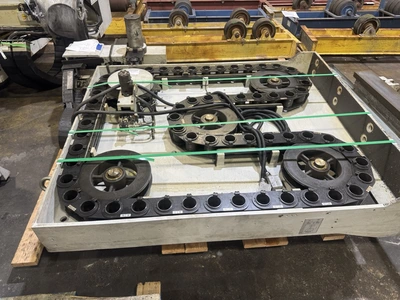

ATC: 60 PC
Max. tool diameter 4.92”/9.84”
Max. tool length 11.81”300mm
Max. tool weight 55.11 Lbs.
Spindle motor: 25 hp
Floor space: 185.63” x 296.96” x 145.90”
Total weight: 49604.00 Lbs.
