USED CLIPPER 632-S

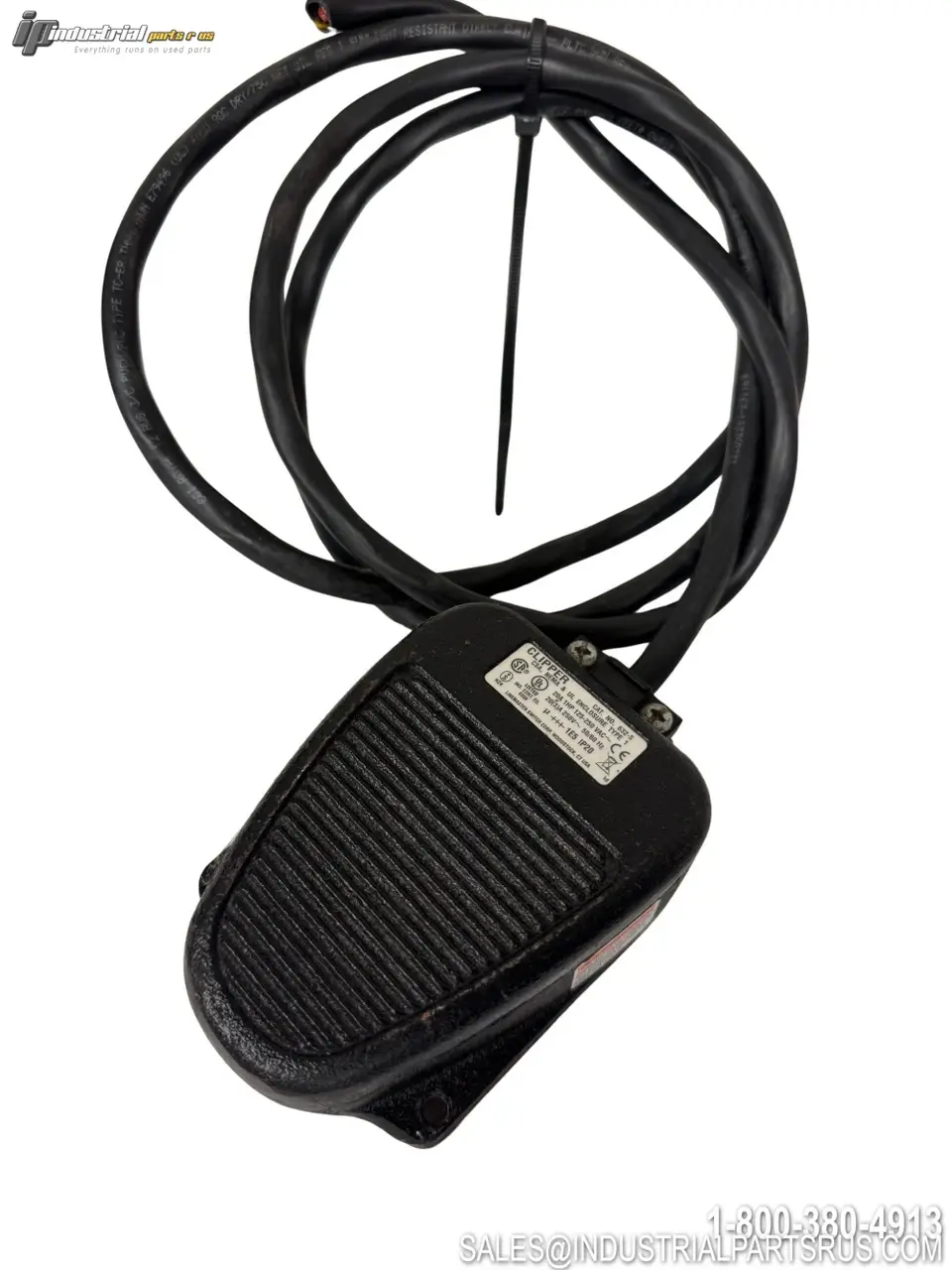

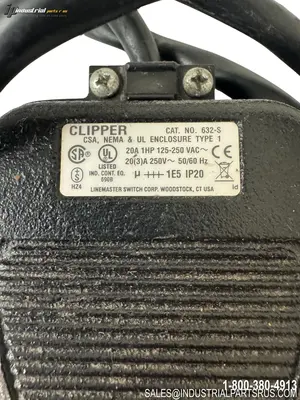

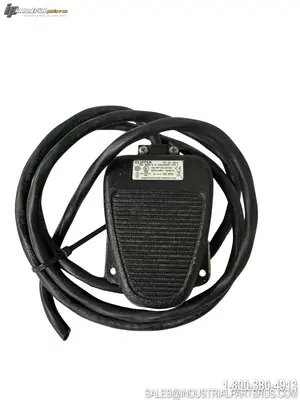

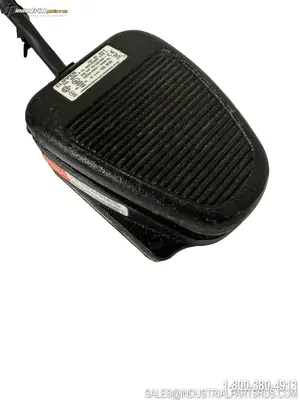

The Linemaster 632-S is a single-pedal, momentary-action Clipper Series foot switch designed for medium-duty general purpose industrial applications. It features a durable cast iron housing with a non-skid base pad, adjustable strain relief connector, and a splash-resistant interior switch. The SPDT (Form C) contact configuration makes it suitable for a wide range of machine control, welding, and automation uses.
Specification
Value
Brand
Linemaster
Model / Part Number
632-S
Series
Clipper
Product Type
Foot Switch
Switch Operation
Momentary (Off-(On))
Contact Configuration
SPDT (Form C)
Number of Poles
1
Number of Pedals
1 (Single)
AC Contact Rating (Current)
20A @ 125–250 VAC
Horsepower Rating
1 HP @ 125–250 VAC
Voltage Rating
125/250 VAC
Housing Material
Cast Iron
Color
Black
Switch Connection
Screw Terminal
NEMA Enclosure Rating
NEMA Type 1
IP Rating
IP20
Dimensions (L x W x H)
4-1/2 in x 3-1/2 in x 1-1/2 in (114.3 mm x 88.9 mm x 38.1 mm)
Weight
2-1/4 lbs
Foot Guard Included
No
Mounting
2 Mounting Holes (floor or equipment)
Base
Non-skid base pad
Strain Relief
Adjustable strain relief connector
Hazardous Location Rating
Not Rated
Certifications
UL, CSA, EN 60529
We warranty all items for 30 days from date of purchase.
