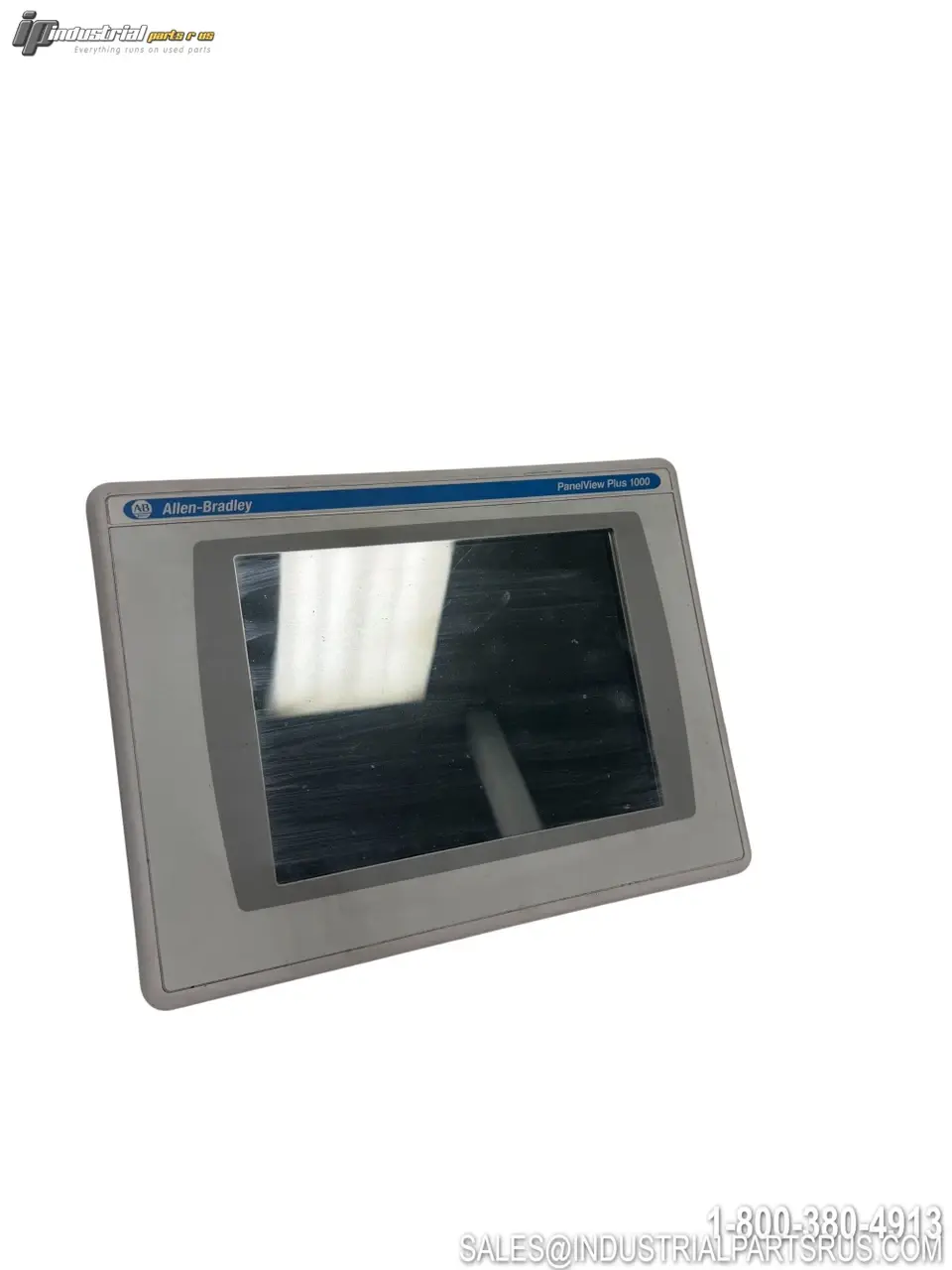

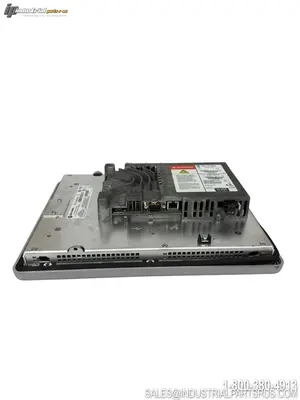

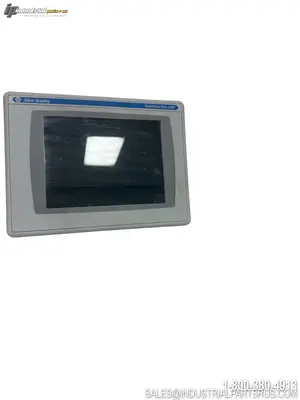

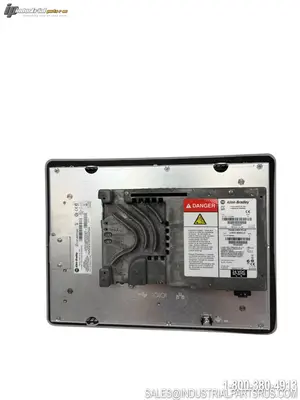

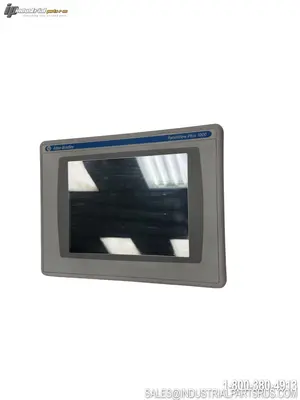

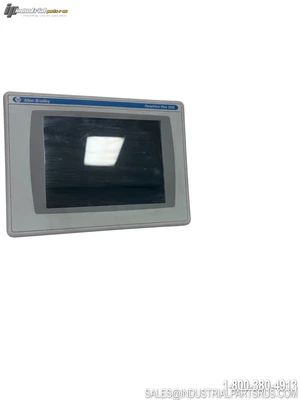

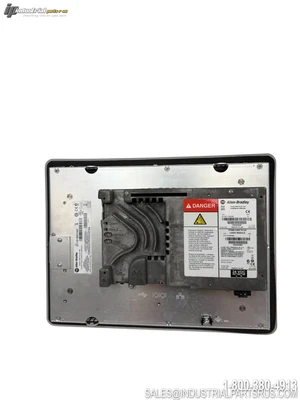

USED ALLEN-BRADLEY 2711P-RDT10C

The Allen-Bradley 2711P-RDT10C is a replacement display module designed for PanelView Plus and PanelView Plus 6 1000-series operator interface terminals. It features a 10.4-inch TFT color LCD with 640×480 (VGA) resolution, 18-bit color depth, and an analog resistive touchscreen for reliable industrial human-machine interface (HMI) operation. Running Windows CE 4.1, this module is compatible with PanelView Plus, PanelView Plus 6, and PanelView Plus CE logic modules that mount to the rear of the terminal, and supports optional communication modules for EtherNet/IP, DH+/DH-485, or ControlNet connectivity. It accepts both AC and DC power input and includes a CompactFlash slot for expanded storage.
Specification
Value
Brand
Allen-Bradley
Model / Part Number
2711P-RDT10C
Platform / Product Family
PanelView Plus 1000
Assembly Type
Display Module Only (Replacement)
Display Size
10.4 in (diagonal)
Display Type
TFT Color LCD
Resolution
640 x 480 pixels (VGA)
Color Depth
18-bit
Active Display Area
211 x 158 mm (8.31 x 6.22 in)
Luminance
300 cd/m² (Nits)
Backlight Type
CCFL
Backlight Life (Min.)
50,000 hours
Touchscreen Type
Analog Resistive
Touch Actuation Force
10–110 g
Touch Actuations (Rated)
1,000,000 (1 million)
Stylus Compatibility
Finger, gloved finger, or plastic stylus (min. 1.3 mm tip radius)
Input Voltage (AC)
85–264V AC
Power Consumption (Max AC)
160 VA maximum
Power Consumption (Typical DC)
39 W / 1.6 A at 24V DC
Power Consumption (Max DC)
70 W / 2.9 A at 24V DC
Line Frequency
47–63 Hz
Physical Dimensions (W x H)
329 x 248 mm
Depth
55 mm
Panel Cutout Dimensions
224 x 305 mm
Weight (approx.)
2.6 kg (approx. 3.99–6.38 lbs)
Max External CompactFlash
512 MB
Enclosure Rating
NEMA Type 12, 13, 4X (indoor); C-TICK, CCC
Certifications / Standards
C-TICK, CCC
Lifecycle Status
Discontinued (December 30, 2021)
Compatible Platforms
PanelView Plus, PanelView Plus 6, PanelView Plus CE (AC or DC Logic Modules)
Series
See label
We warranty all items for 30 days from date of purchase.
