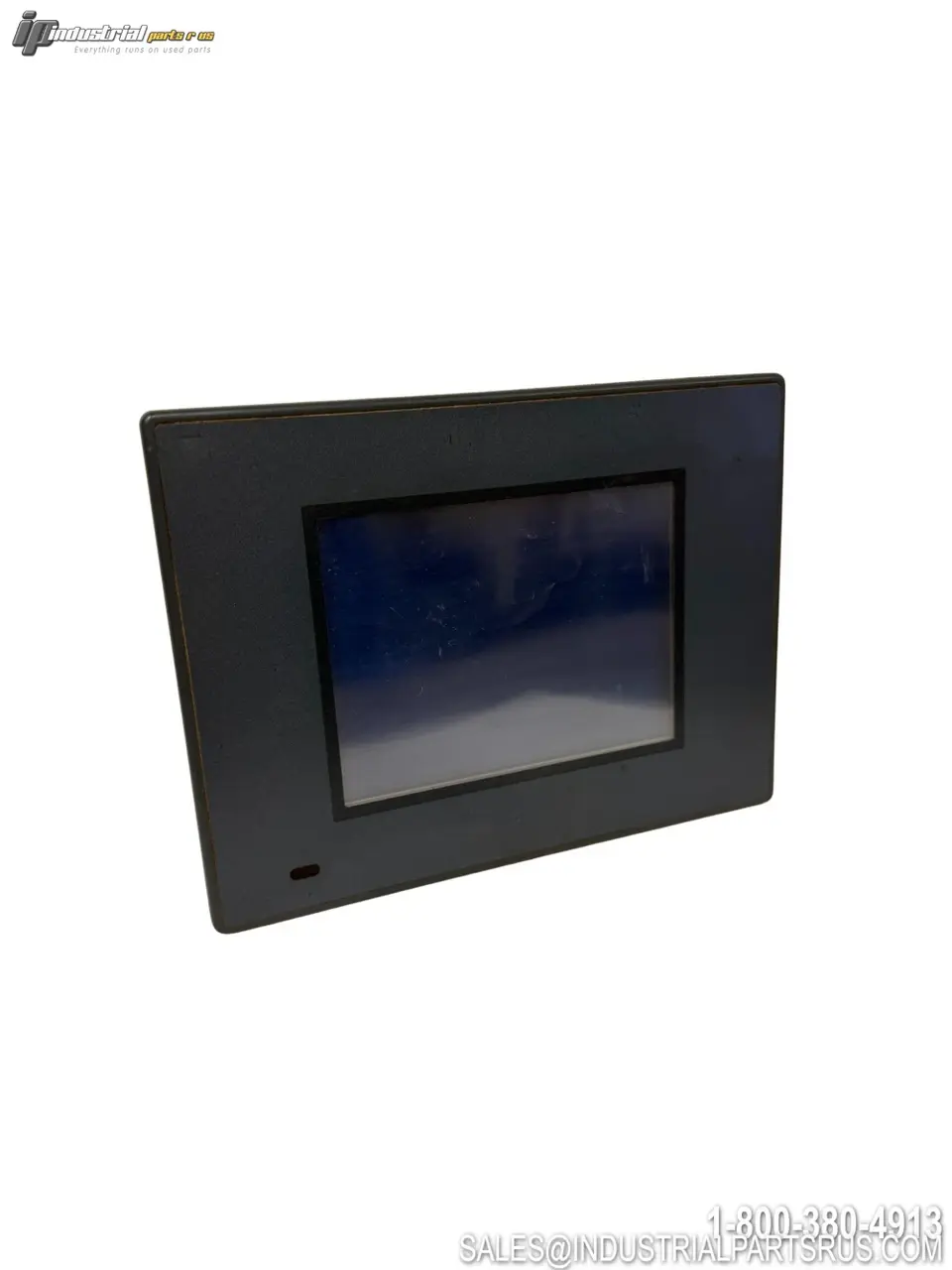

USED PRO-FACE 3080060

The Pro-Face 3080060 (catalog number GLC150-BG41-XY32KF-24V) is a Type B+ LT LogiTouch Series integrated graphic logic controller and HMI. It combines a 5.7-inch monochrome blue-and-white LCD touchscreen with onboard 32-point discrete I/O (16 sink/source inputs, 16 sink outputs) and a Flex Network port for distributed I/O expansion. The unit operates on 24VDC and is designed for factory-floor machine control and operator interface applications.
Specification
Value
Brand
Pro-Face
Model / Part Number
3080060
Catalog Number
GLC150-BG41-XY32KF-24V
Global Code
PFXGLC150BDBP
Series
LT LogiTouch Series
Controller Type
Type B+ Graphic Logic Controller
Display Size
5.7 inch
Display Type
Monochrome STN LCD (Blue Mode)
Resolution
320 x 240 pixels
Backlight Type
CCFL (CFL, lifespan: 36,000+ hours continuous)
Input Voltage (Rated)
24VDC
Allowable Voltage Range
DC 20.4V to DC 28.8V
Power Consumption
20W or less
In-Rush Current
30A or less
Input Points
16 (Sink/Source)
Output Points
16 (Sink Transistor)
Total I/O Points
32 Points
I/O Connector
20-pin (A and B column configuration)
Communication / Network Port
Flex Network (FN) Port, 6-pin
Memory
1 MB Flash EPROM (128KB program / 32KB variable)
Touch Panel Type
Resistive Touch Screen
Dimensions (W x H x D)
8.15 in x 6.18 in x 2.98 in (approx. 207 x 157 x 76 mm)
Insulation Resistance
Above 20 MΩ at DC 500V (between charging and FG terminals)
Voltage Endurance
AC 1000V at 10mA for 1 minute
Sales Status
End of Sales (2013-09-30)
Recommended Replacement
AGP3300-T1-D24-FN1M (GP3000 Series)
We warranty all items for 30 days from date of purchase.
