USED PRO-FACE 2980070-04

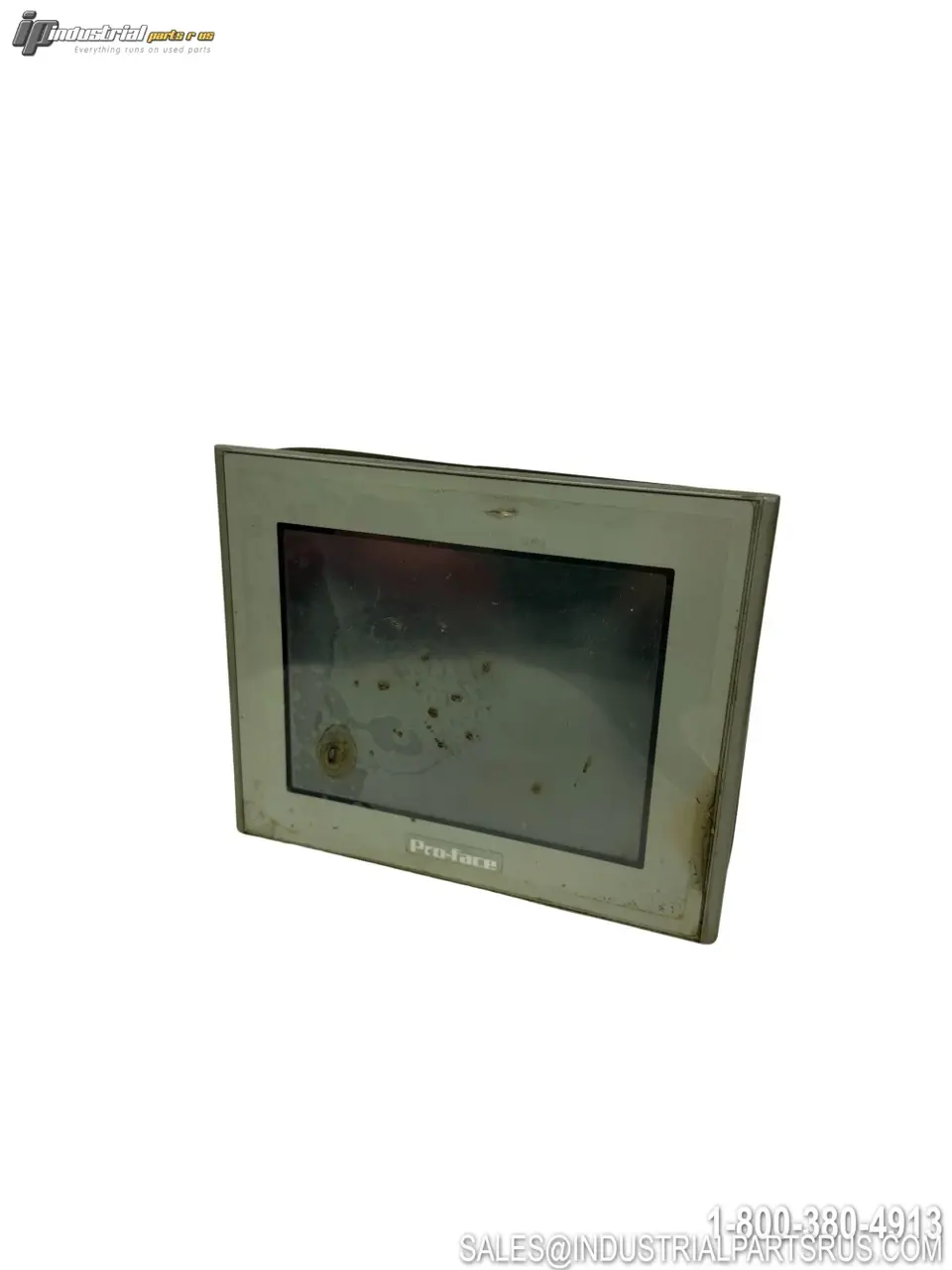

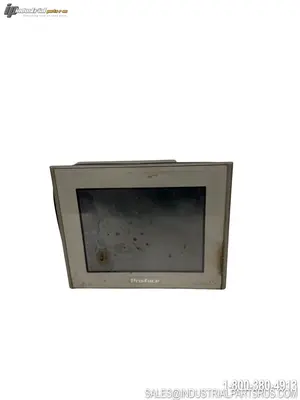

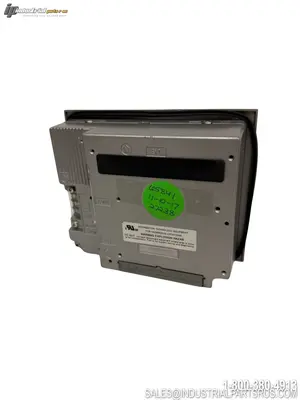

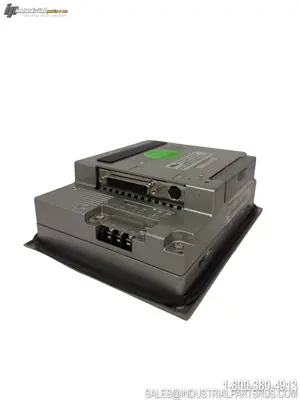

The Pro-Face 2980070-04, catalog number GP2301-LG41-24V (global code PFXGP2301LD), is a 5.7-inch monochrome LCD graphic operator interface (HMI touch panel) belonging to the GP2000 Series. It features a resistive analog touchscreen with 320×240 pixel resolution, CCFL backlight, and communicates via RS-232C/RS-422 serial interface for direct connection to PLCs, temperature controllers, inverters, and other serial devices. This unit is powered by 24VDC, is UL/c-UL Listed and Class I Division 2 rated, and is compatible with Pro-face GP-PRO/PBIII C-Package HMI development software.
Specification
Value
Brand
Pro-Face
Model / Part Number
2980070-04
Catalog Number
GP2301-LG41-24V
Global Code
PFXGP2301LD
Series
GP2000
Product Type
Operator Interface / HMI Touch Panel
Screen Size
5.7 inch
Display Type
Monochrome LCD
Display Colors
Black & White / 2 levels of gray
Resolution
320 x 240 pixels (QVGA)
Backlight Type
CCFL
Backlight Service Life
50,000 hours at 25°C (24-hr operation)
Brightness Adjustment
4 levels
Input Voltage
24 VDC
Input Current
0.92 A
Application Memory
1 MB Flash EPROM
Backup Memory
128 KB SRAM
Serial Interface
RS-232C / RS-422 (asynchronous)
Data Transmission Speed
2,400 – 115,200 bps
Data Length
7 – 8 bits
Stop Bits
1 or 2 bits
Optional Communication
DH+, Remote I/O, Modbus Slave (optional modules)
Font / Character Sizes
8x8, 8x16, 16x16, 32x32 dot fonts
Programming Software
GP-PRO/PBIII C-Package (GP-PRO 03)
UL Model Number
2980070-04
End of Sales
2013/09/30 (Discontinued)
End of Repair
2019/12/27
Weight
~2.03 lbs (0.92 kg)
We warranty all items for 30 days from date of purchase.
