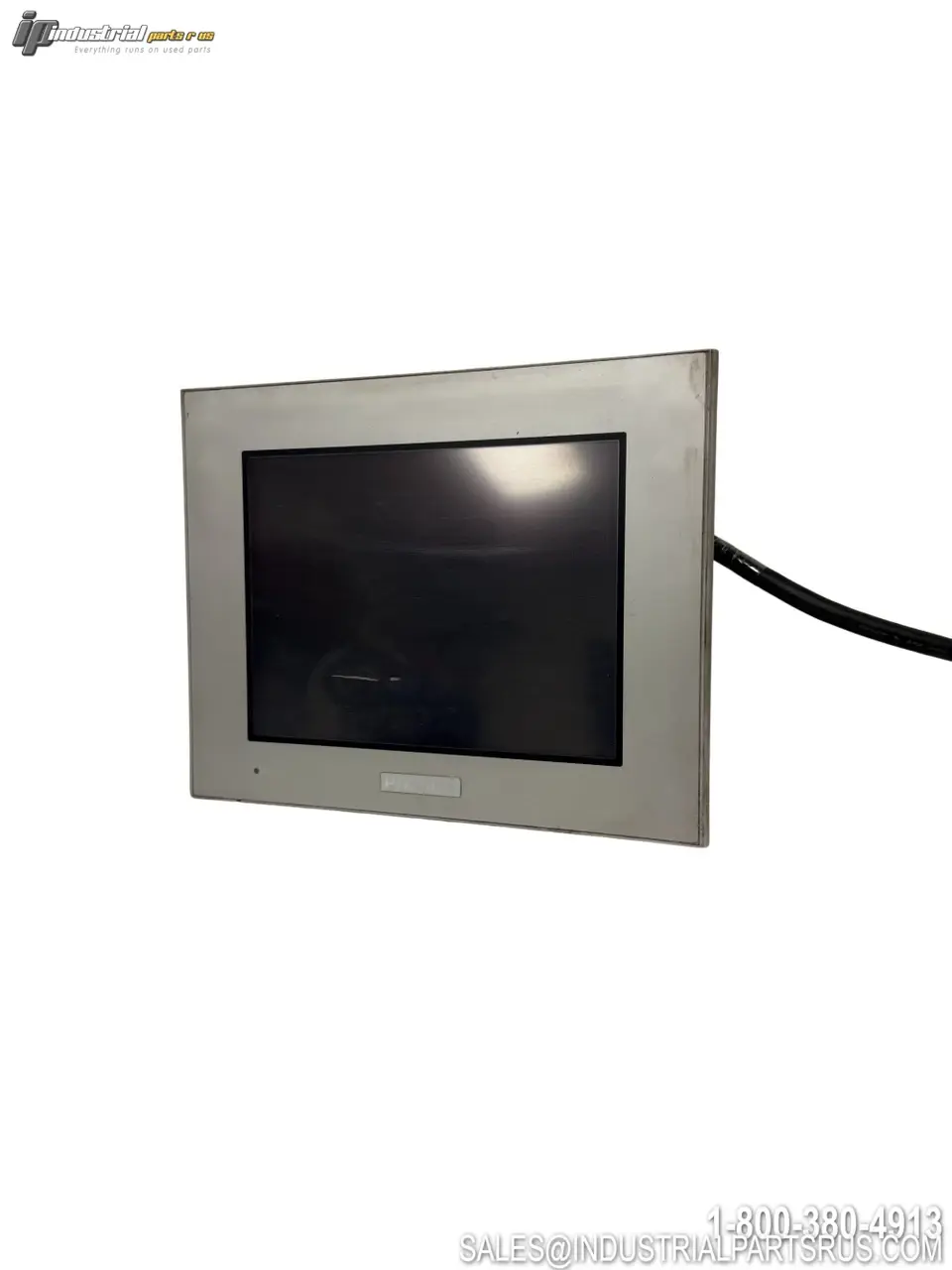

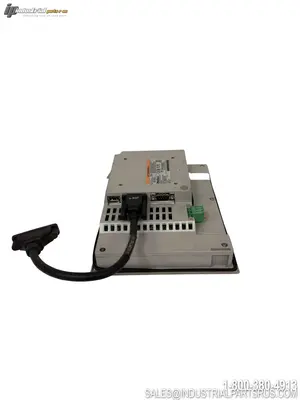

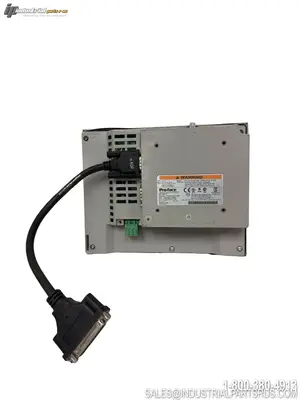

USED PRO-FACE GP-4401T

The Pro-Face PFXGP4401TAD (GP-4401T) is a 7.5-inch analog resistive touchscreen Human Machine Interface (HMI) belonging to the GP4000 Series. It features a TFT color LCD display with 640x480 VGA resolution and 65,536 colors, designed for industrial operator interface applications. The unit supports multiple communication protocols including RS-232C, RS-422/485, and 10/100BASE-TX Ethernet, and operates on a 24VDC nominal power supply with an IP65-rated front panel for wash-down and dust protection. Programmed using GP-Pro EX software and certified CE, UL, RoHS, ABS, and DNV.
Specification
Value
Brand
Pro-Face
Model / Part Number
PFXGP4401TAD
Order Code
GP-4401T
Series
GP4000 Series
Product Type
Analog Touchscreen Operator Interface (HMI)
Display Type
TFT Color LCD
Display Size
7.5 inches
Resolution
640 x 480 pixels (VGA)
Display Colors
65,536 (No blink) / 16,384 (Blink)
Effective Display Area
W153.7 x H115.8 mm (W6.05 x H4.56 in.)
Backlight
White LED
Backlight Service Life
50,000 hours or more
Brightness Control
16 Levels
Touch Screen Type
Resistive Film Analog
Touch Panel Resolution
1024 x 1024
Rated Input Voltage
24VDC (nominal)
Supply Voltage Range
19.2 – 28.8 VDC
Power Consumption
3.4 W or Less
Memory
32 MB Flash EPROM
Data Backup
320 KB SRAM
COM1 Serial Port
RS-232C, D-Sub 9-pin, 2,400 – 115,200 bps
COM2 Serial Port
RS-422/RS-485, D-Sub 9-pin, 2,400 – 115,200 bps (187.5 kbps MPI)
Ethernet
IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX, RJ-45 x 1
USB Ports
USB Type-A (2.0) x 1 + USB Mini-B (2.0) x 1
SD Card Slot
SD Card slot x 1 (max 32 GB SD/SDHC)
Number of Ports
6
IP Rating
IP65F (front panel)
NEMA Rating
NEMA 4X / NEMA 13
Mounting Type
Flush Panel Mount
Bezel / Overlay Color
Silver Overlay / Gray Bezel
Cooling Method
Natural Air Circulation (Passive)
Dimensions
218 x 60 x 173 mm
Weight
Approximately 2.65 lbs (approx. 1 kg)
Operating Temperature
0°C to +55°C (32°F to 131°F)
Insulation Resistance
500 VDC
Degree of Pollution
2
Certifications
CE, UL Listed Cl 1 Div 2 (Rev. B only), RoHS, ABS, DNV
Compliant Standards
IEC 61131-2, IEC 61000-4-2
Programming Software
GP-Pro EX
Replacement Model
PFXGP6400TAD (GP6000 Series)
We warranty all items for 30 days from date of purchase.
