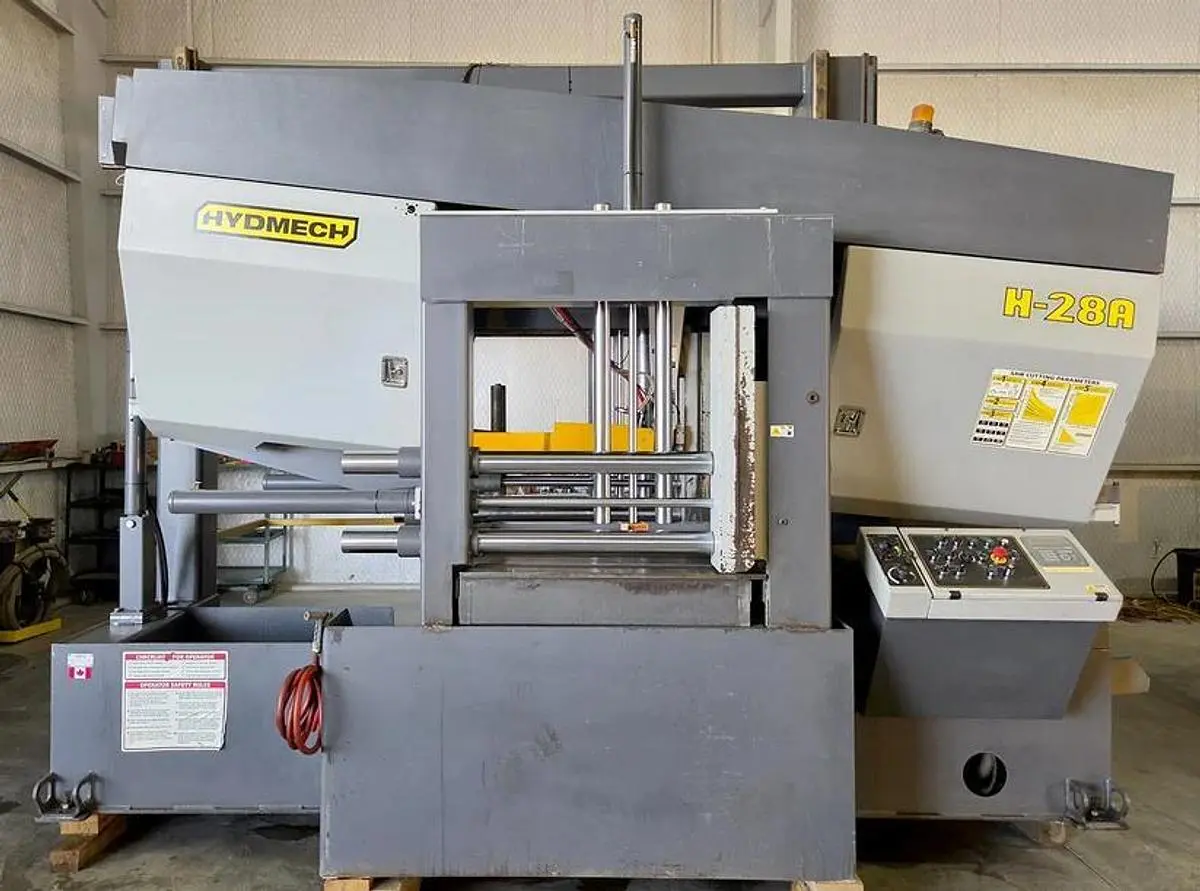

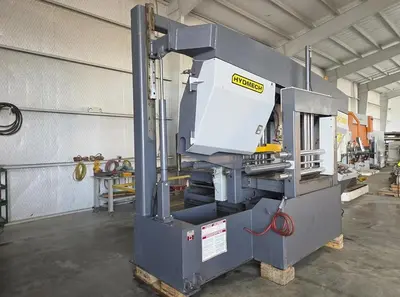

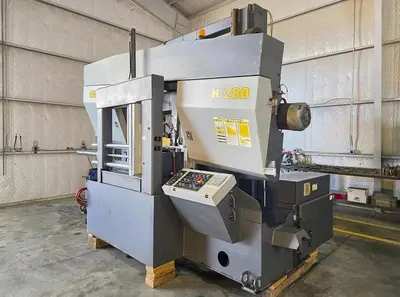

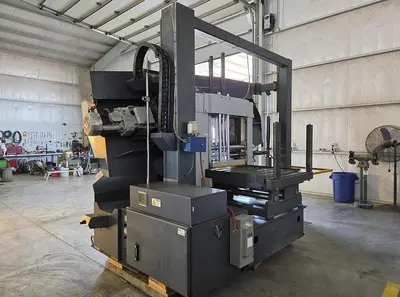

USED 2014 HYDMECH H-28A

The H-28A is fast, with its high speed shuttle feed indexing up to 32″ in a single movement.
The H-28A is an
automatic horizontal band saw
providing accurate 90° metal cutting for heavy-duty applications.
A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.
HYDMECH’s direct down feed system provides easy adjustment of both head feed rate and cutting pressure.
Featuring a 28″ x 28″ capacity, 10 HP motor, and 2″ blade, the H-28A is a reliable choice for all your heavy-duty horizontal metal cutting applications.

Standard Machine Features
·    One piece design – no alignment necessary
·    Shuttle features automatic multi-indexing up to 34” in a single stroke with automatic kerf compensation.

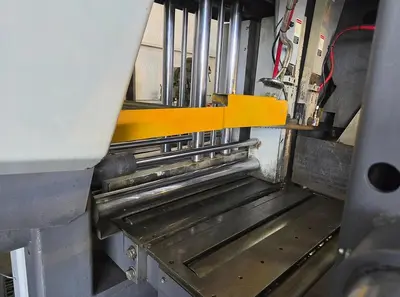

·    Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times.
·    10 HP VFD. True direct blade drive – no belts/pulleys Full capacity, full stroking hydraulic vises
·    Robust steel base
·    Blade chamber separates material from cut part
·    Hydraulic positive down feed
·    High resolution feed rate valve allows for constant feed rate when cutting special alloys
·    Cast iron band wheels
·   Mitsubishi PLC. 999 jobs, 10 jobs in queue.
·    Replaceable blade brush
·    Automatic chip removal auger
·    Easy access electrical panel and hydraulics Blade breakage switch
·    Hydraulic band tensioning with digital readout
·    5 HP hydraulic pump provides system pressure
·    Hydraulic carbide guide tensioning
·    Hardened, replaceable wear plates
·    Safety door interlocks
·    Flood coolant with wash down hose
·    Work light

Optional Equipment on Saw

Out Feed Vise with bundling
Full Capacity Bundling
6° Canted Head for Structural cutting
Mist Lube

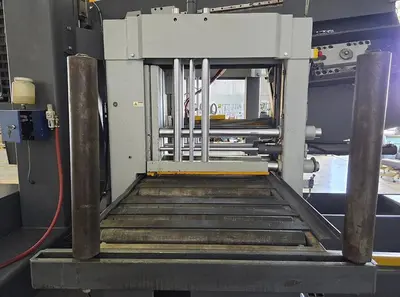

Vertical Rollers

New Replacement Cost with option:

Standard Machine $ 132,000
Out Feed Vise with bundling $ 18,900
Full Capacity Bundling $ 8,500
6° Canted Head for $ 7,900

Structural cutting

Mist Lube $ 1,900
Vertical Rollers $ 1,800

Total new Replacement Cost Machine $ 171,000
