USED FANUC M-900IB/280L

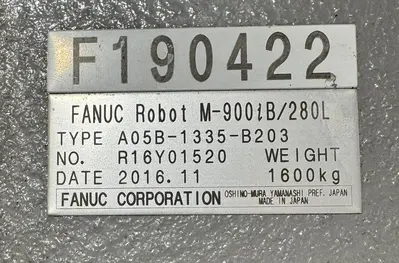

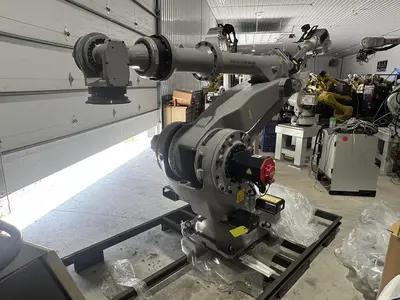

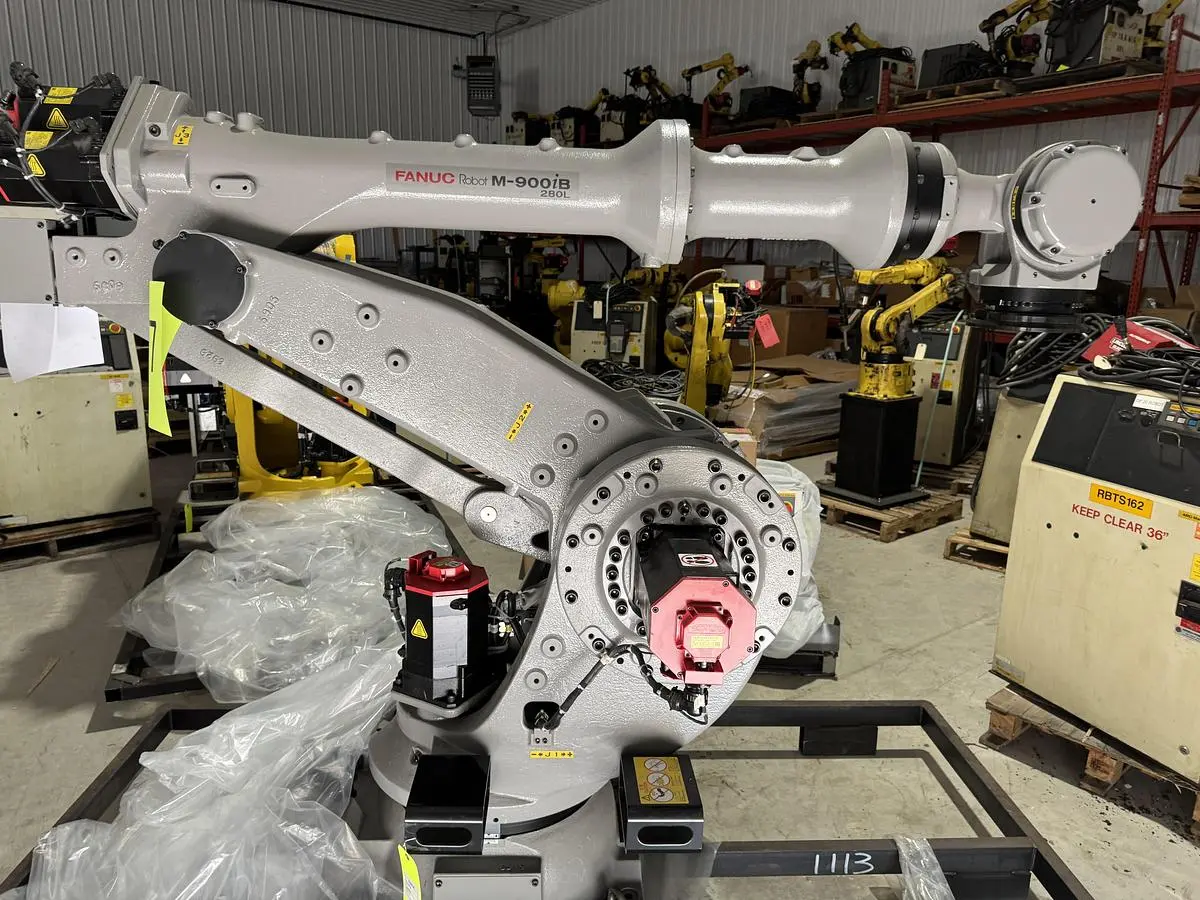

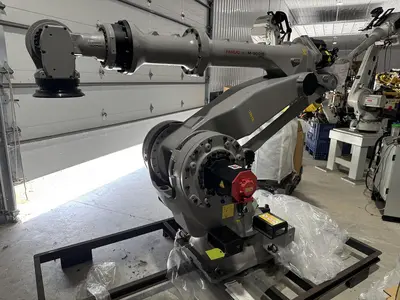

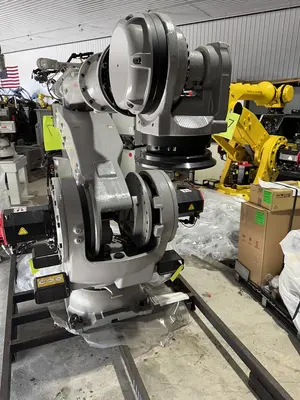

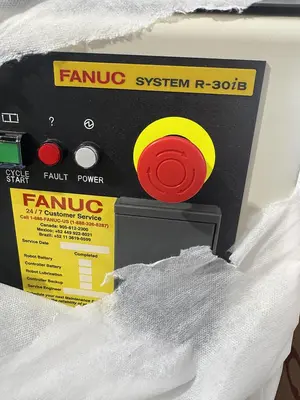

The 2016 FANUC M-900iB/280L is a 6-axis articulated industrial robot designed with a link structure instead of a counterbalance, providing an expansive working envelope. It features a maximum payload capacity of 280 kg, an extended horizontal reach of 3,103 mm, and a repeatability of ±0.3 mm. The robot has a mass of 1,600 kg and supports both floor and inverted mounting configurations. Compatible with the FANUC R-30iB or R-30iB Plus controller in either an A or B cabinet, it provides wide motion ranges across all six axes: J1 at ±370°, J2 at ±151°, J3 at ±224°, J4 at ±720°, J5 at ±250°, and J6 at ±720°. Axis motion speeds reach 110 °/s for J1, 105 °/s for J2, 100 °/s for J3, 125 °/s for J4 and J5, and 205 °/s for J6. Suitable applications include spot welding, dispensing, machine loading, machine tending, part transfer, assembly, coating, and material removal.
