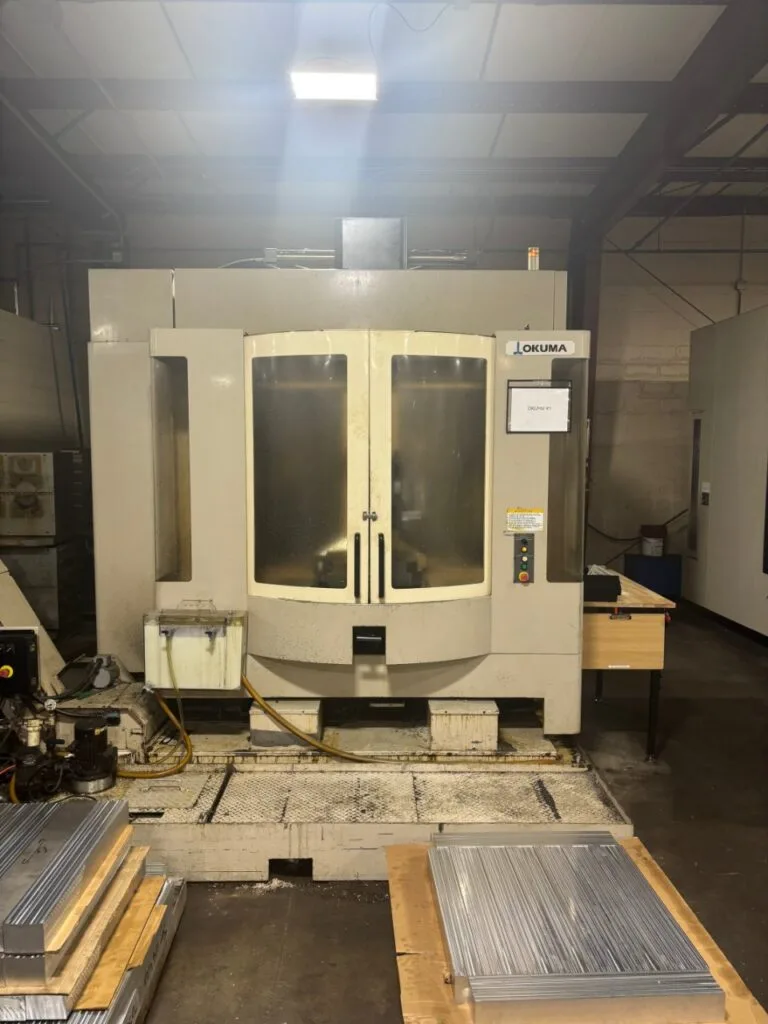

USED 2006 OKUMA & HOWA MILLAC-550H
Overview
Machine is currently under power and can be demoed upon request. Kurt Milling Vise and Assorted 50-Taper Tooling In The ATC are not included.
Specs
X-Axis Travel: 31.5″
Y-Axis Travel: 31.5″
Z-Axis Travel: 27.56″
B-Axis Travel: 360°
Pallet Size: 21.65″ x 21.65″
Pallet Changer: Automatic (APC)
Spindle Speed: 10,000 RPM
Spindle Taper: 50 Taper

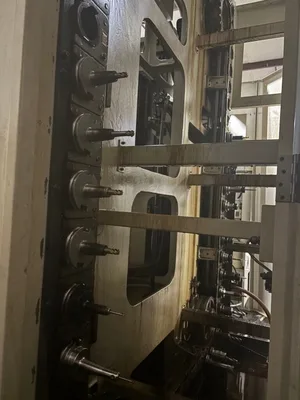

Tool Capacity: 60 ATC
Max Tool Diameter: 4.92″ / 7.87″ (adjacent pocket empty)
Max Tool Weight: 44 lbs
Max Tool Length: 15.75″ (from gage line)
Tool Change Time (Tool To Tool): 2 sec
Tool Change Time (Chip To Chip): 8.5 sec
Rapid Traverse: 1,575 IPM
Max Cutting Feedrate: 1,575 IPM
Positioning Accuracy: ±0.0004″
Repeatability: ±0.0002″
Floor Space: 126″ x 172″
Machine Weight: 32,975 lbs

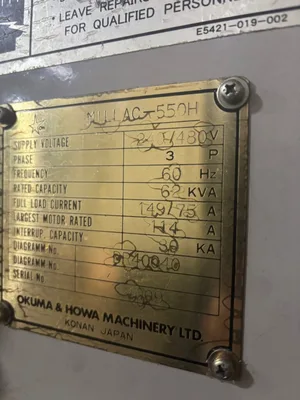

Rated Capacity: 62 kVA
Full Load Current: 149/75 A

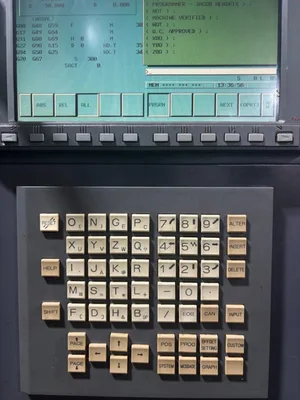

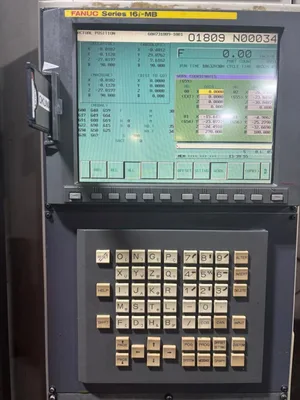

Control: Fanuc Series 16i-MB
Spindle Motor: 40 HP
Electrical: 240/480 V / 3 PH

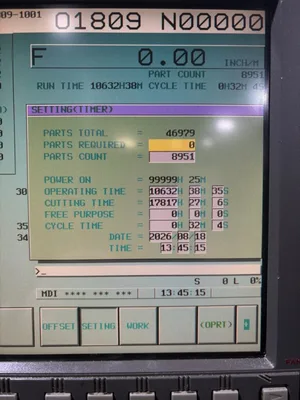

Operating Hours: 10,632
Equipped With
Avt Tombstone City Tombstone Fixture
