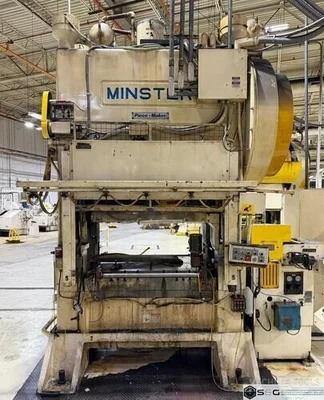

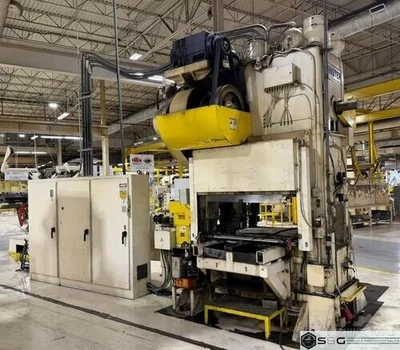

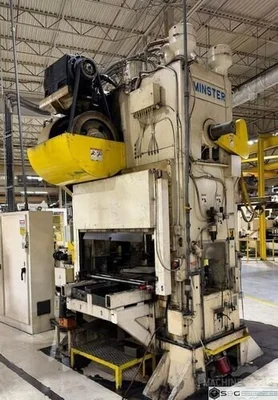

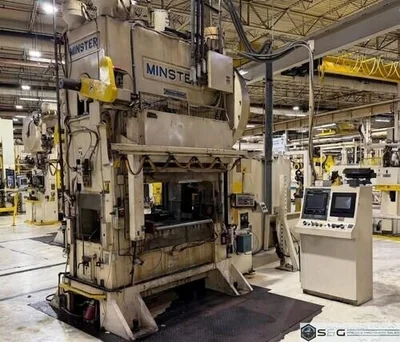

USED 1996 MINSTER P2-150-60 PIECEMAKER

Tonnage: 150
Stroke: 5 inches
Shut Height: 29.5 inches
Adjustment: 5.5 inches
Bed Size: 60" x 40"
Ram Area: 60" x 40"
SPM: 45-120 VSPM

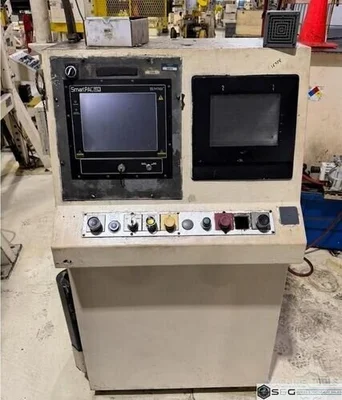

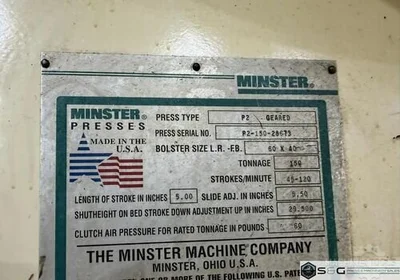

150-ton Minster P2-150-60 Geared Press For Sale"Piece-Maker" Straight Side Metal Stamping PressYear 1996 - Can be Seen Under Power! Standard Press SpecificationsMinster Press Serial Number P2-28673 Geared150-ton Capacity5" Stroke29.5" Shut Height on Bed (SDAU)23.5" Shut Height on Bolster (SDAU)5.5" Motorized Adjustment60" LR x 40" FB Bed Area60" LR x 40" FB Slide Area45-120 Variable Stroke Per MinuteEquipment and FeaturesMinster Combination Pneumatic Clutch and BrakeAir CounterbalancesMinster Monitor Flow Lubrications SystemSingle GearedAir Operated Flywheel BrakeTwo Point Eccentric ShaftEight adjustable bronze gibsT-Slotted Ram25 HP, 1800 RPM, 60 Cycle Main MotorHydraulic Tie Rod NutsPress Controls Include: Toledo Transducer PW4 Load Analyzer with four (4) strain links mounted on uprightsAllen Bradley PLC-5/30 programmable controllerAllen Bradley "Panel View" operator interface for the press and ancillary equipment

Tool storage (8 digit number) for 50 tools.
Limit switch settings stored with tool number.
Automatic press shut height and speed (SPM)  adjustment set from tool number.
All feed parameters including feed length, feed timing to press stroke, material acceleration, stock guide width, and material pass line setting set from tool number.
Straightener work roll and stock guide settings set from tool number.
Programming of die protection inputs (8 channels) to match die sensing for tool number
Programming of parts counters for tool numbers.
Programming of auxiliary equipment timing to press stroke such as air blowoffs, spray lubrication, and die functions.
Operator prompting and diagnostic capability.
Controls die clamping.

6" Thick Bolster Plate20" Wide WindowsFloor Standing with Vibro-Dynamic Floor Pads

Optional: Press can be purchased with fully integrated Minster 10,000 lbs. x 20" Servo Coil Feed Line - Ask your sales professional for more details.
Invest in precision and high-tonnage durability with the 150-ton Minster P2-150-60 "Piece-Maker" Geared Press (Serial No. P2-28673). Engineered for heavy-duty metal stamping, this 1996 straight-side mechanical press delivers exceptional rigidity, top-tier performance, and repeatable accuracy for demanding automotive, aerospace, and custom stamping applications.
This premium press features a 150-ton capacity, a 5-inch stroke, and a 45–120 variable SPM speed range. It boasts an expansive 60" LR x 40" FB bed and slide area, along with a 29.5" shut height on the bed and 23.5" on the bolster (SDAU) with 5.5" motorized adjustment. Built for heavy production, it includes a Minster combination pneumatic clutch and brake, 8-point adjustable bronze gibs, a two-point eccentric shaft, hydraulic tie-rod nuts, and a Toledo Transducer PW4 load analyzer. Powered by an Allen-Bradley PLC-5/30 controller, it supports 50-tool memory storage, automatic shut-height settings, and complete die protection.
Metal stampers choose S&G Press as their trusted industry partner for used metalworking machinery and production-ready equipment. S&G Press offers expert technical guidance, competitive pricing, and seamless integration, giving stampers total confidence with presses available to view under power. Upgrade your manufacturing operations today.
