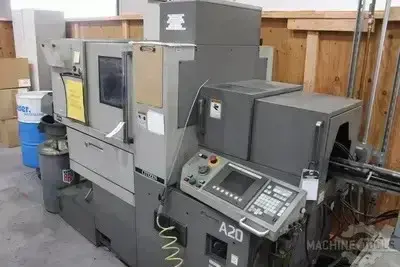

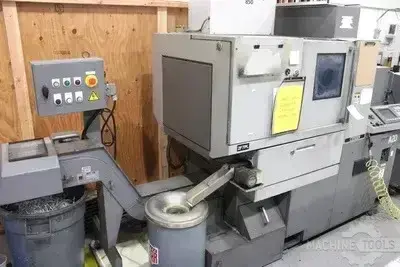

USED 2009 CITIZEN A20VIIPL

Request a Quote
Add to Cart
Max Machining Diameter: 20mm
Max Machining Length: 165mm/1 chucking
Main Spindle Speed: 100-8000 RPM
main-spindle-c-axis: Full C-axis (.001 Deg)
Sub Spindle Speed: 100-8,000 RPM
Rotary Spindle Speed: 6,000 Max. RPM

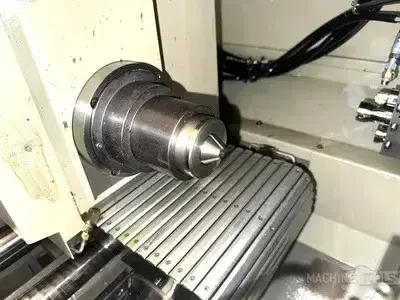

Sub Spindle Chuck Size: 20mm
Tool Shank Size: 1/2" Square Shank 1" Diam. Sleeves
Rapid Traverse Rate: 32mm/min X2, Y1,Z1 Z2 & 18 m/min on X1
Main Spindle Drive: 5 HP/3 HP
Sub Spindle Motor: 2 HP

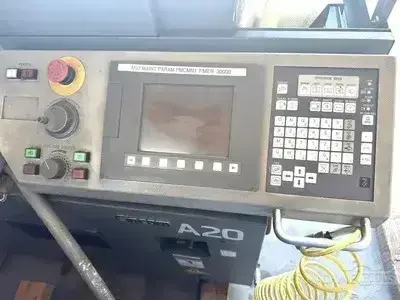

Control: Fanuc 32iA CNC Controls

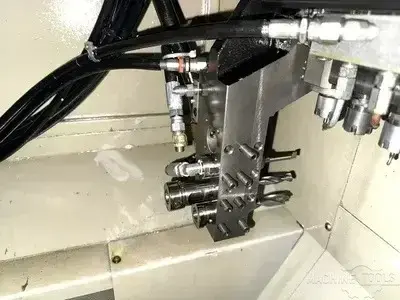

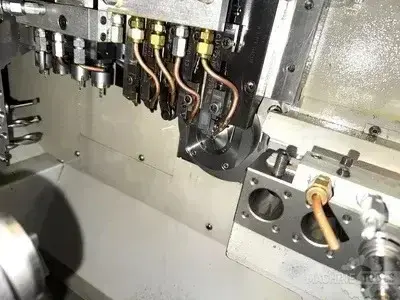

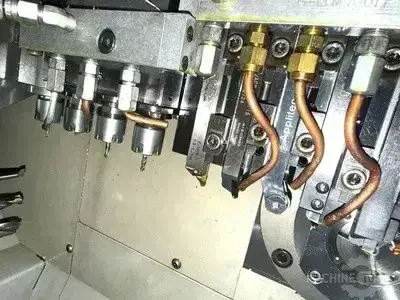

Live Tooling: (4) Live Cross Milling Spindles
Sub-Spindle: Yes
C-Axis: C-Axis on Main & Sub Spindles

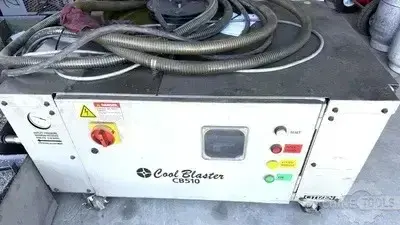

Coolant System: Coolant System with Coolblaster high pressure pump
Parts Catcher: Yes
Chip Removal: Chip Conveyor

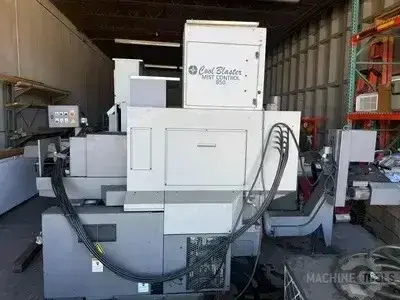

Mist Collector: Yes

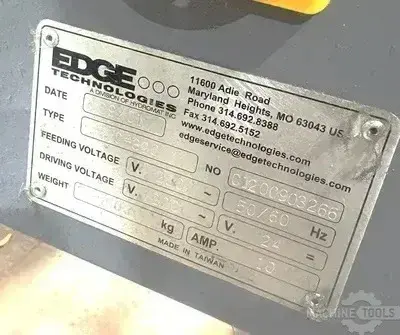

Barfeeder: EDGE TECHNOLOGIES C-320 MAGAZINE FEED 12' BAR FEEDER
Rigid Tapping: Yes
