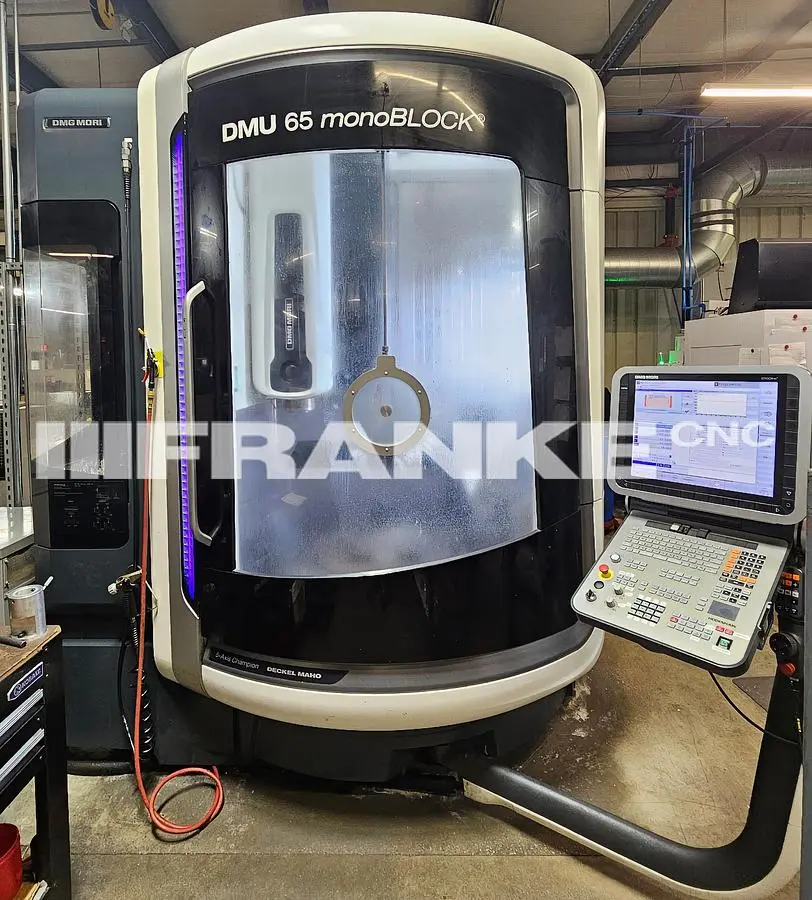

USED 2016 DMG MORI DMU 65 MONOBLOCK

MACHINE OVERVIEW:

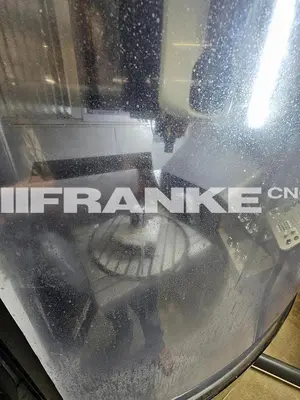

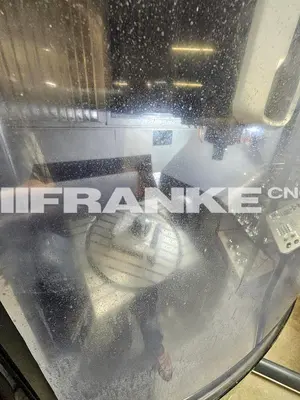

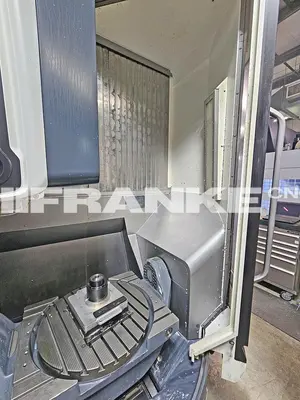

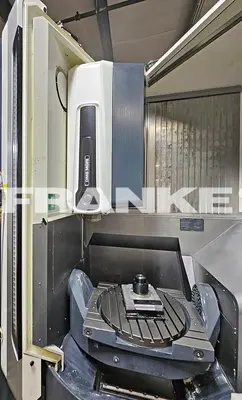

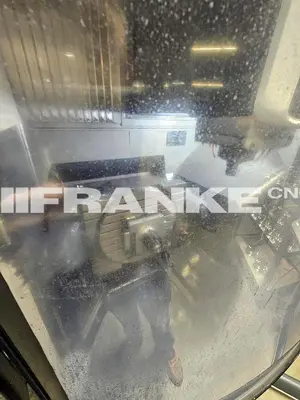

The 2016 DMG MORI DMU 65 monoBLOCK is a versatile 5-axis universal milling machine designed to meet various industrial requirements, from high-speed milling to heavy part machining in both 3- and 5-axis configurations. It features a swivelling rotary table with a 650 mm diameter that can handle workpieces up to 840 mm in diameter, 500 mm in height, and 600 kg in weight. The machine boasts an extremely compact footprint of under 8 m², allowing efficient use of space without compromising access to the working area.

Equipped with a speedMASTER high-tech motor spindle, it achieves maximum rotational speeds of 20,000 rpm and provides a spindle power of 35 kW with a torque of 130 Nm. The DMU 65 monoBLOCK supports a vertical chain tool magazine that can hold up to 60 tools, enhancing productivity with a chip-to-chip time of approximately 4.9 seconds. The machine's linear axes offer rapid traverses of 40 m/min with an acceleration of 6 m/s², ensuring fast and precise operations.

Constructed with a robust design, this model features stainless steel cladding to maintain long-term value and stability. The DMU 65 offers excellent machining performance attributed to the quality build by DECKEL MAHO. Its control system utilizes DMG MORI's ERGOline with a 19" monitor and 3D control, supported by the renowned HEIDENHAIN functionality, ensuring user-friendly operation and maximum process efficiency.

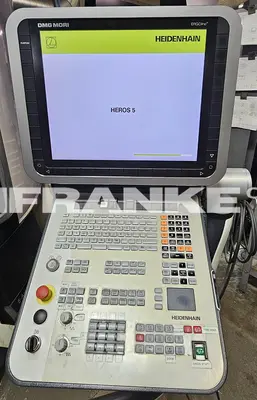

DMG MORI ERGOline Control with 19" monitor and 3D control system
3D Control HEIDENHAIN TNC 640

Options for HEIDENHAIN control
Electronic handwheel
Safety package for power failure

Spindle
speedMASTER motor spindle 20,000 rpm HSK-A63

Tool Magazine
Chain vertical, 60 pockets HSK-A63

Cooling Supply/Chip Removal
Production Package 40 bar/23 l/min, 600 l tank
Rotating clear-view window
Coolant ring jet
Spray pistol with pump 2 bar/40 l/min
Oil and emulsion mist separator

Measuring/Monitoring
Infrared measuring probe Renishaw
Tool measuring in machining area Blum Laser

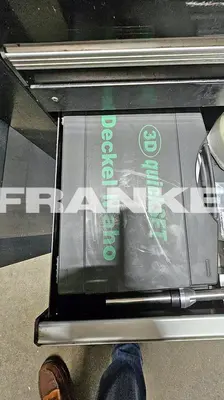

3D quickSET
MPC Machine Protection Control

General Options
Machine version 60 Hz
Machine version Inch
CSA Specification

Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
