USED 2013 MIKRON MILL HEM 1000
Overview
Subject to availability, prior sale, and terms and conditions of FRANKE CNC Sales Agreement, we offer for your consideration:

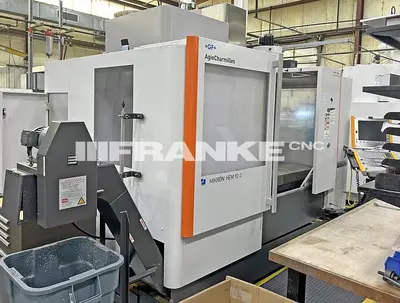

One used 2013 +GF+ MIKRON HEM 1000 4-Axis VMC:
Machine was manufactured at +GF+ 5/2013
Machine was first installed new in the USA 5/2013
-Equipped With-
HEIDENHAIN TNC 620 control with 15" TFT color monitor
HEIDENHAIN moveable hand wheel for control
ITC (Intelligent Thermal Control) smart machine software module
HEIDENHAIN linear glass scales measurement system
External spindle chiller
Electric cabinet air conditioner
Flood coolant
Coolant wash down system

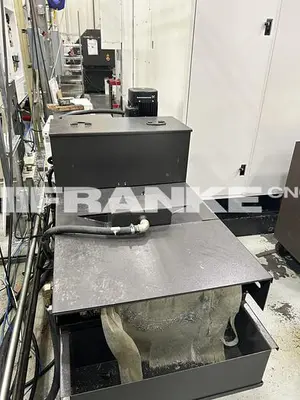

High pressure Coolant Thru The Spindle (CTS) with paper band micro filter
RENISHAW TS27R tool setter for length & radius checking & broken tool detection
RENISHAW OMP 40 touch probe
Front lift up chip conveyor
4th Axis precision dividing head DETRON GX255P

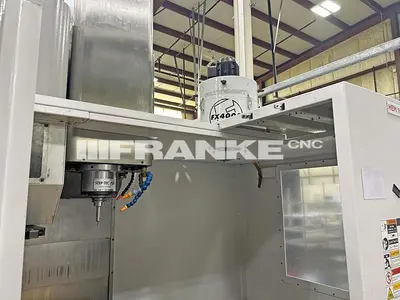

Oil mist extraction unit
Two (2) integrated sliding windows on both lateral enclosure sides
Specs
Working Range Longitudinal X: 1050 mm (41.3")
Working Range Transverse Y: 530 mm (20.9")
Working Range Vertical Z: 600 mm (23.6")

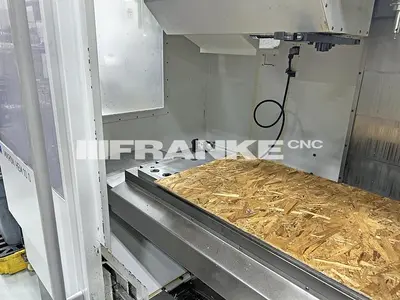

Table Size: 1250 x 560 mm (49.2" x 22")
Maximum Weight On Table: 1000 kg (2200 lbs)
Distance Table to Spindle: 150-750 mm (5.9"-29.5")
Maximum Feed Rate: 15 m/min (591 in/min)
Rapid Traverse Speed (X,Y,Z): 35 m/30 m/24 m/min (1378/1181/945 in/min)
Maximum Feed Force X/Y/Z: 3000 N (675 lbf)
STEP TEC Swiss made Spindle Speed: 14,000 rpm
Spindle Taper: CAT 40
Spindle Power: 9.5 kW (12.7 HP)
Spindle Torque: 42 Nm (31 lb/ft)
Tool Magazine, Drum Type: 30 position
Maximum Tool Length: 300 mm (11.8")
Maximum Tool Diameter: 125 mm (4.9")
Maximum Tool Weight: 6 kg (13 lb)
Machine Total Weight: 7600 kg (16,755 lbs)
Machine Base: Cast Iron
