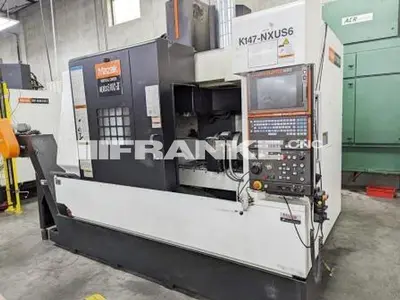

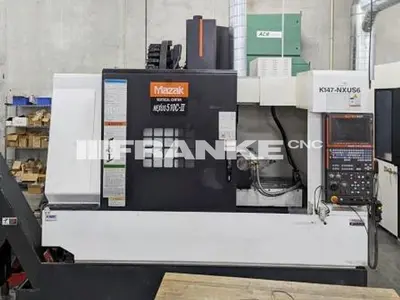

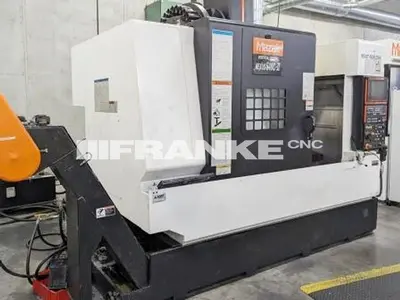

USED 2013 MAZAK VCN-510C

Manufacturer: Mazak
Model: VCN-510C
Control: Mazatrol Matrix Nexus
Manufactured: 2013

Specifications
Table Size 51.2" x 21.6"
Max Table Load Capacity 2646 lbs
X Axis Travel 41.3"
Y Axis Travel 20"
Z Axis Travel 20"
Main Spindle RPM 12,000 RPM
Rapid Traverse Rate X 1417.3 IPM
Rapid Traverse Rate Y 1417.3 IPM
Rapid Traverse Rate Z 1417.3 IPM
Number of Tool Stations 30 ATC
Maximum Tool Diameter 3.15"
Max Tool Dia Adjacent Pocket Empty 4.92"
Maximum Tool Length 13.78"
Maximum Tool Weight 17.64 lbs
Spindle Taper CAT 40
Main Spindle HP AC 10/20

Equipped With:

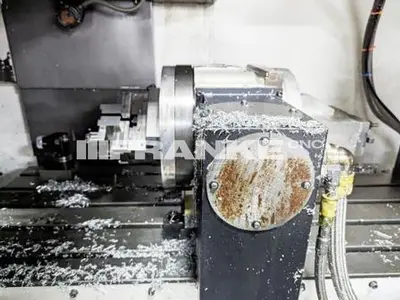

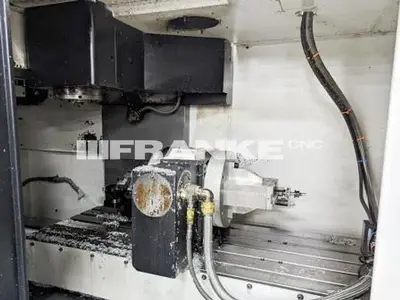

Mazak MR320 Rotary Table

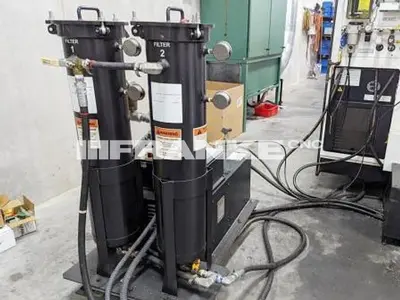

Superflow T8 Hi-Pressure Coolant (1000PSI)
Renishaw Dual Probe
3D High Speed
Chip Conveyor
