USED 2007 HERMLE C50U DYNAMIC

5-AXIS MACHINING CENTERS
C50U dynamic

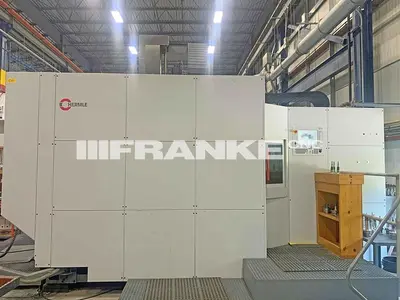

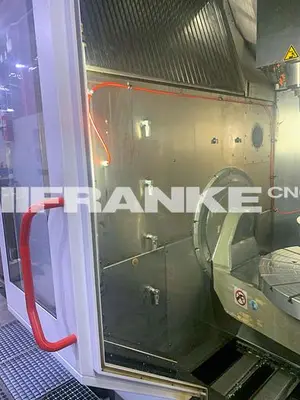

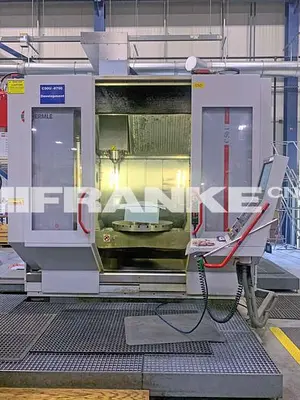

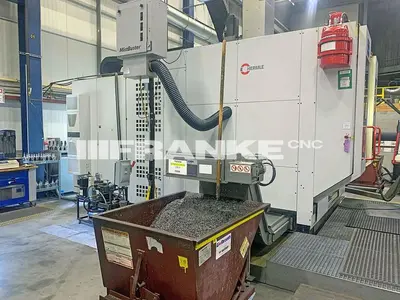

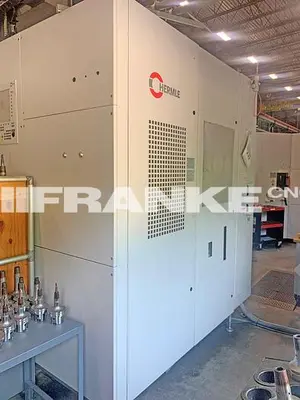

One used 2007 HERMLE C50U dynamic Full 5-Axis Simultaneous Gantry Style VMC:
May be inspected in plant under power by appointment.
Machine was produced in the Black Forest at Maschinenfabrik Berthold Hermle AG-Gosheim, Germany

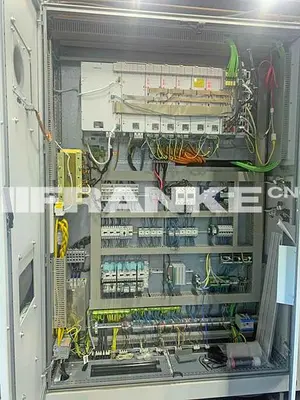

HEIDENHAIN iTNC 530 CNC Control with hand-held electronic handwheel control unit
TECHNICAL DATA:
X-Axis................................................. 39.4" (1,000 mm)
Y-Axis................................................. 43.3" (1,100 mm)
Z-Axis................................................. 29.5" (750 mm)
Maximum workpiece diameter…………39.4” (1,000 mm)
Maximum workpiece height…………….31.9” (810 mm)
Maximum workpiece weight……………4,409 lbs (2,000 kg)
Spindle speed range...................................... 20-12,000 rpm
Machine equipped with external spindle chiller
Spindle taper.................................................. HSK-A100
Spindle output........................................... 75 HP (56 kW)
