USED 1995 MORI SEIKI ZL-15SMC

CNC LATHES
ZL-15SMC

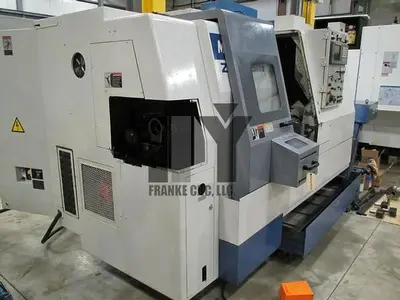

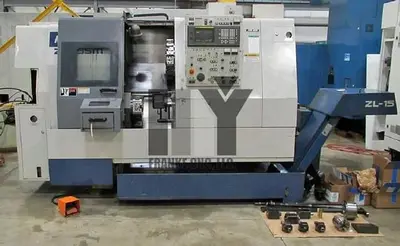

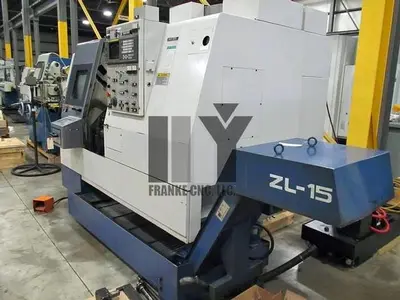

(1) USED MORI SEIKI MODEL ZL-15SMC 5-AXIS CNC LATHE WITH TWIN TURRETS, LIVE TOOLING, SUB-SPINDLE, C-AXIS AND FANUC CONTROL, 6” 3-JAW CHUCK ON MAIN, 4” 3-JAW CHUCK ON SUB
S/N 343
NEW 1995
SPECIFICATIONS
CAPACITIES
SWING OVER BED:
18.9"
SWING OVER CROSS SLIDE:
14.6"
MAXIMUM MACHINING DIAMETER:
6.3”
STANDARD MACHINING DIAMETER:
1.6”
MAXIMUM MACHINING LENGTH:
3.9”
TRAVELS
X-AXIS TRAVEL (UPPER / LOWER)
8.7" / 7.7"
Z-AXIS TRAVEL (UPPER / LOWER)
17.7" / 15.4"
SPINDLE
SPINDLE SPEED:
50 – 5,000 RPM
SPINDLE NOSE:
A2-5
HOLE TROUGH SPINDLE (MAIN):
2.0”
HOLE TROUGH SPINDLE (SUB):
1.4”
MAXIMUM INDEXING ANGLE:
FREE INDEXING
FRONT BEARING (ID - MAIN):
3.5”

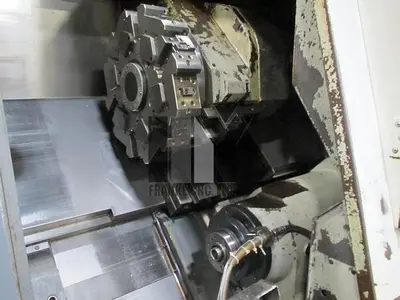

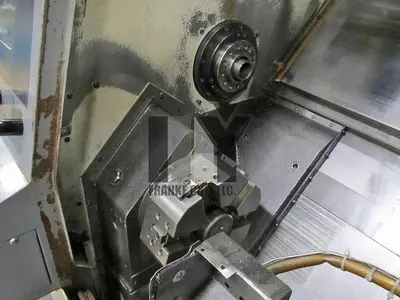

TURRET
NUMBER OF TOOL POSITIONS (MAIN):
12 (6 ROTARY)
NUMBER OF TOOL POSITIONS (SUB)
6
SHANK HEIGHT FOR SQUARE TOOL:
3/4”
SHANK DIAMETER FOR BORING BAR:
1-1/4”
TURRET INDEXING TIME (MAIN):
.7 SECONDS
TURRET INDEXING TIME (SUB):
.5 SECONDS
FEEDS
RAPID TRAVERSE (X-AXIS):
472 IPM
RAPID TRAVERSE (Z-AXIS):
590 IPM
MOTOR
MAIN SPINDLE:
10/7 HP
SUB-SPINDLE:
7/5 HP
DRIVE MOTOR FOR ROTARY TOOLS:
3/2 HP
GENERAL
DIMENSIONS:
9'7" LR X 6'6" FB x 7' H
WEIGHT:
12,300 LBS
ELECTRICS:
220 VOLT, 60 CYC, 3 PH
EQUIPPED WITH

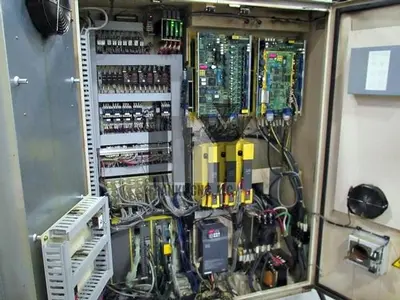

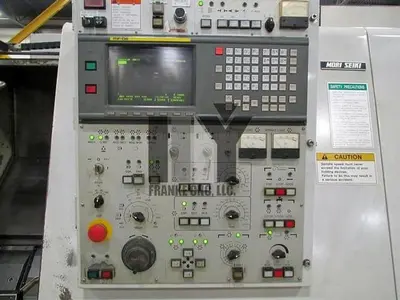

FANUC 16TTA CONTROL (MORI MF-D6)

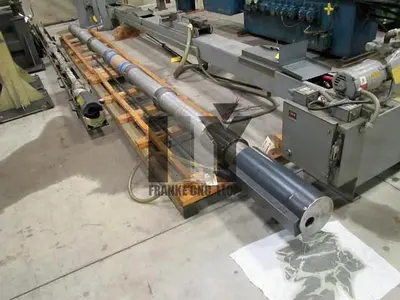

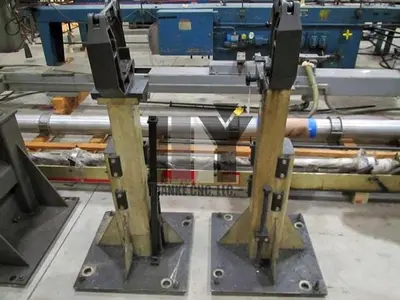

LNS HYDROBAR BARFEEDER

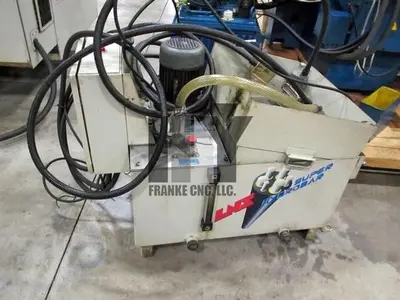

CHIP CONVEYOR WITH COOLANT PUMP
6” 3-JAW CHUCK
4” 3-JAW CHUCK

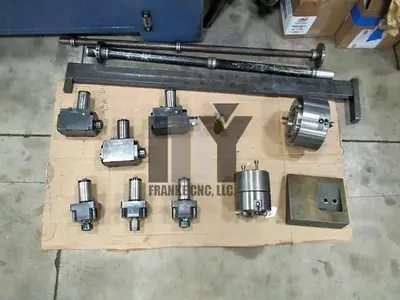

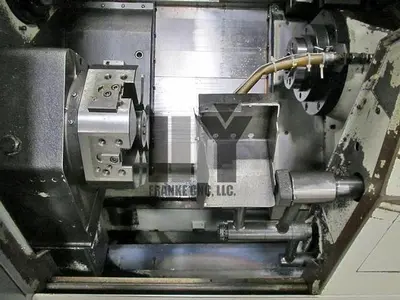

(3) FRONT WORKING LIVE TOOLS
(3) SIDE WORKING LIVE TOOLS
PARTS CATCHER
