USED 2002 HERMLE C600U

5-AXIS MACHINING CENTERS
C600U
One used

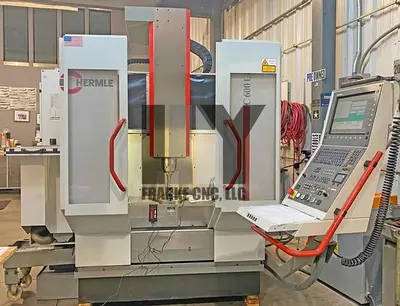

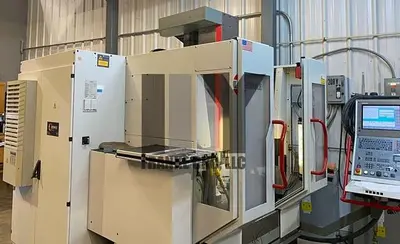

2002 HERMLE C600U
Full 5-Axis
Simultaneous Gantry Style VMC:
May be inspected under power in our Wisconsin showroom by appointment. Fly into MKE or ORD.
Machine was produced in the Black Forest at Maschinenfabrik Berthold Hermle AG-Gosheim, Germany

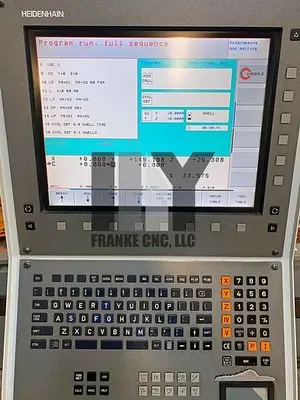

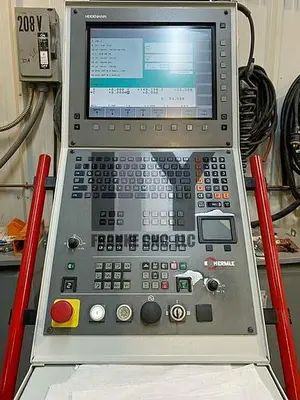

HEIDENHAIN iTNC 530 CNC Control with HEIDENHAIN HR410 electronic handwheel
TECHNICAL DATA:
X-Axis................................................. 23.62" (600 mm)
Y-Axis................................................. 17.72" (450 mm)
Z-Axis................................................. 17.72" (450 mm)
Spindle speed range...................................... 20-16,000 rpm
Spindle taper.................................................. CAT 40
Spindle output........................................... 20 HP (15 kW)
Spindle torque....................................... 96 lb/ft (130 Nm)
Spindle diameter at the front bearings................... 2.76" (70 mm)
Tool Changer.................
