USED 2006 HERMLE C600U

5-AXIS MACHINING CENTERS
C600U
Subject to availability, and terms and conditions of FRANKE CNC sales contract, we offer for your consideration:

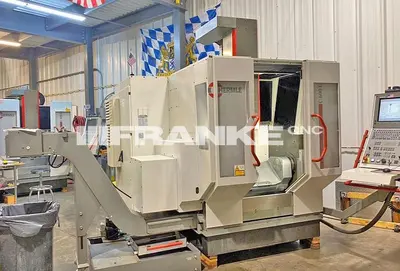

One used 2006 HERMLE C600U Full 5-Axis Simultaneous Gantry Style VMC:
May be inspected under power in our Wisconsin showroom by appointment. Fly into MKE or ORD.
Machine was produced in the Black Forest at Maschinenfabrik Berthold Hermle AG-Gosheim, Germany

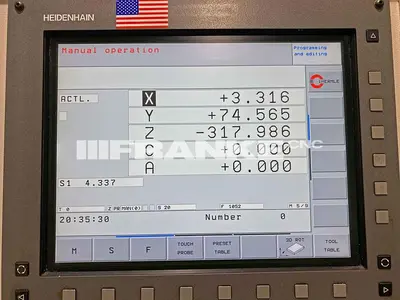

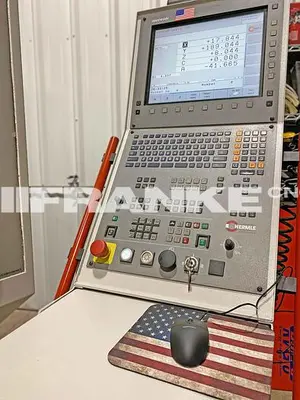

HEIDENHAIN iTNC 530 CNC Control with HEIDENHAIN HR410 electronic handwheel
TECHNICAL DATA:

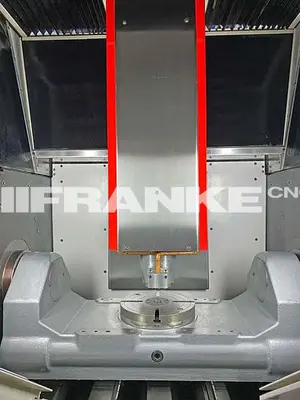

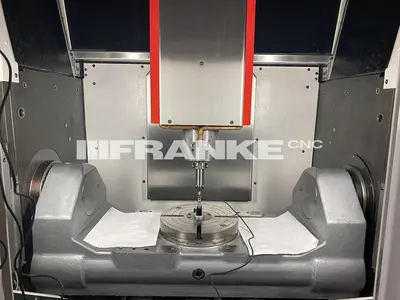

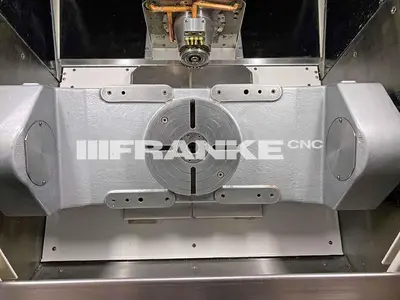

NC swivelling rotary table Fixture Table maximum swing…….20” x 20” (508 mm x 508 mm) not included
Optional table plate possible for 5-Axis machining………..14.6” x 14.6” (370 mm x 370 mm) not included
Optional table plate possible for 3-Axis machining………..23.6” x 14.6” (600 mm x 370 mm) not included
EQUIPPED WITH:
Mineral casting machine base
Approximate machine weight 14,330 lb (6,500 kg)
HEIDENHAIN linear glass scales direct measuring in X/Y/Z Axes
HEIDENHAIN rotary encoders direct measuring in 4th and 5th Axes
Water tank
Chip conveyor
Machine light
Fully enclosed cabin enclosure
Spindle air blast
Orientation spindle stop M19
Helical interpolation
Rigid tapping
RS 232 port and Ethernet port
RENISHAW infrared parts measuring touch probe

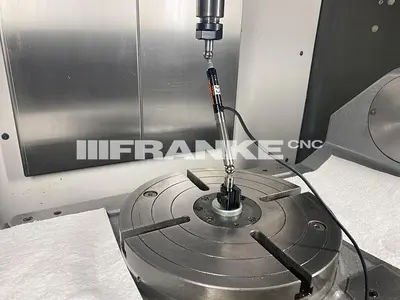

BLUM laser tool measuring of tool length, diamter, and broken tool detecti
Temperature Compensation
Leveling Shoes
Ball Bar Test-at inspection
Geometry Test-at inspection
Spray pistol
Books, manuals and technical documentation on hand for the machine
CONNECTION REQUIREMENTS:
Price quoted in United States Dollars
Purchase Point is Hartland, WI 53029
To the best of our knowledge all details listed above are deemed correct. It is the Buyer's responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
