USED 1996 HERMLE HTC 34, CHANGES TOOLS VERTICALLY
Overview
UNIVERSAL MACHINING CENTERS
UWF 902H

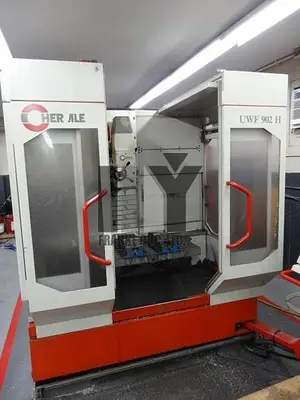

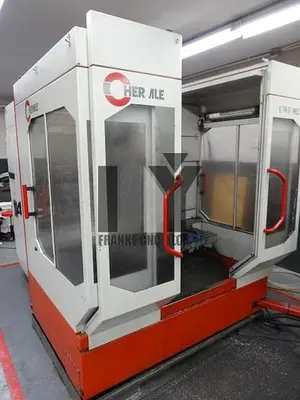

One used 1996 HERMLE UWF902H High Performance CNC
Universal
Machining Center
Made in Gosheim, Germany
May be inspected under power by appointment
Heidenhain TNC 426 control with electronic handwheel for part set-up
Technical Data
Feed Range in all Axes:
Rapid Traverse
34 Postion Automatic Tool Changer
Control
Heidenhain TNC 426
-Pivots on top of the swiveling support arm
-Background programming with graphics
-Conversational language programming
-G-Code ISO language programming
-32 Bit Processor 4ms Block Processing Time
Equipped With
Prepped for 4
th
axis
Heidenhain Glass Scales Direct Measuring System X/Y/Z
Multi input transformer
Digital Axis Drives
Dual feedback (linear scales and encoders)
Built in diagnostics
Built in Oscilloscope
Color Monitor
Solid model graphics
Manual swivel milling head for
both Horizontal and Vertical machining
with one workpiece clamping
Fully Enclosed Protection Cabin
Specs
Status: Available
Number of axis: 3-Axis
Tool changer: 34 ATC
Control: HH TNC 426
Spindle: 6,300 rpm
Spindle taper: CAT 40
X axis: 23.6" (600 mm)
Y axis: 17.7" (450 mm)
B axis: PREPPED FOR
Z axis: 19.7" (500 mm)
C axis: PREPPED FOR
Traverse path x (longitudinal): 23.6” (600 mm)
Traverse path y (transverse): 17.7” (450 mm)
Traverse path z (vertical): 19.7” (500 mm)
Ac main drive at 60% ed: 11.4 HP (8.5 kW)
Ac main drive at 100% ed: 9.4 HP (7.0 kW)
Speed range horizontal spindle: 20-6,300 RPM Infinitely Variable
Speed range vertical spindle: 20-6,300 RPM Infinitely Variable
Gear range: 3 (Automatic)
Quill stroke, vertical: 2.95” (75 mm) manually operated
Feed drives: AC Individual
In set-up mode: 78.7 IPM (1-2,000 mm/min)
In automatic mode: 394 IPM (1-10,000 mm/min)
X (longitudinal): 394 IPM (10 m/min)
Y (transverse): 394 IPM (10 m/min)
Z (vertical): 394 IPM (10 m/min)

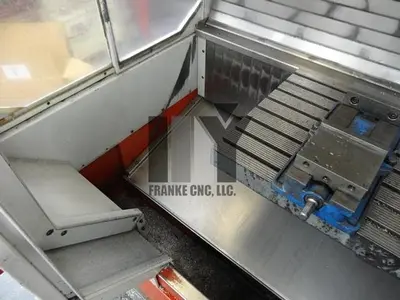

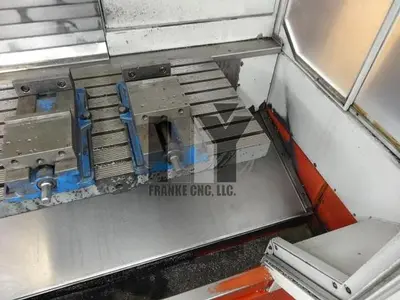

Rigid table clamping surface: 35.4” x 18” (900 mm x 458 mm)
Machine weight: Approximately 11,023 lbs (5,000 kg)
Max. tool dia. without free adjacent pockets: 3.54” (90 mm)
Max. tool dia. with free adjacent pockets: 4.92” (125 mm)
Max tool weight: 55.11 lbs (25 kg)
Max number of tools in tool changer: 34
Resolution: 0.0000039”
Input increment: 0.0001mm
