USED 2005 DMG MORI DMG-DMC64V
Overview
VERTICAL MACHINING CENTERS
DMG-DMC64V
SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:

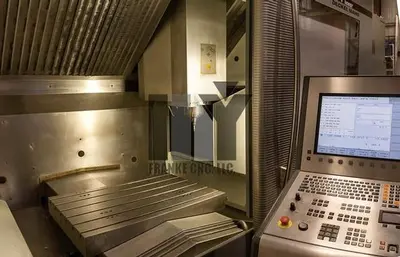

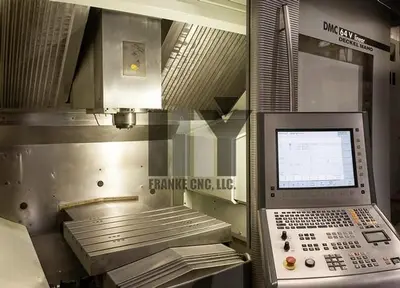

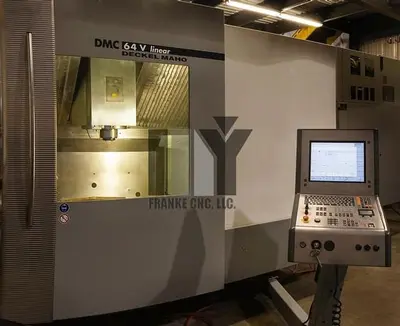

Used 2005 DECKEL MAHO DMG-DMC64V 3-Axis Vertical Machining Center:
Machine made in Geretsried, Germany, inspect under power in Wisconsin!
HEIDENHAIN iTNC530 Control with Ethernet & Electronic Handwheel
-HIGHLIGHTS-
30 position pick-up tool changer which can be loaded during machining time
Tool changer is located behind working area to protect from emulsion &dirt
Direct measuring system (Heidenhain glass scales) for maximum accuracy
15" TFT flat screen on HEIDENHAIN iTNC530 Control
-WORKING RANGE-
-FEED-
-ACCELERATION-
-POSITIONING ACCURACY (ADMISSIBLE VALUE ACCORDING TO VDI/DGQ 3441)
P: Y,Z-axis (direct measuring system) acc. VDI/DGQ 3441 0.0004" (0.010 mm)
P: X-axis (direct measuring system) acc. VDI/DGQ 3441 0.0003" (0.008 mm)
-HEIDENHAIN GLASS SCALES X/Y/Z PATH MEASURING SYSTEM (RESOLUTION)-
-MAIN SPINDLE-
-PICK-UP TOOL MAGAZINE/CHANGER-
-TABLE DESIGN-
Clamping area with T-slots DIN 650-14.. 33.5" x 23.6" (850 mm x 600 mm)
-EQUIPPED WITH-
HEIDENHAIN iTNC530 CNC Control with 15" TFT flat screen monitor
Spray gun
Fully enclosed work cabin
Machine will come with a miscellaneous assortment of CAT 40 tool holders
Price quoted in US Dollars
APPROXIMATE WEIGHT 17637#
Specs
Status: Available
Number of axis: 3-Axis
Tool changer: 30 ATC
Control: HH TNC 530
Spindle: 12,000 rpm
Spindle taper: CAT 40
X axis: 25.2" (640 mm)
Y axis: 23.6" (600 mm)
Z axis: 19.7" (500 mm)
Feed force x/y/z: 7,000 N
Feed rate: 0.04-1,575 ipm (1-40,000 mm/min)
Rapid traverse x/y,z: 2,755 ipm (70 m/min) No ballscrew in X-Axis
Rapid traverse y-axis: 1,575 ipm (40 m/min)
Rapid traverse z-axis: 1,575 ipm (40 m/min)
Ball screw diameter/pitch (y/z): 1.57/0.6" (40/15 mm)
X-axis: 5 m/s-2
Y-axis: 4 m/s-2
Z-axis: 5 m/s-2
Direct: 0.001 mm
Speed range: 1-12,000 rpm
Drive power 40% dc/continous duty: 25.5/17.4 hp (19/13 kW)
Torque 40% dc/continous duty: 73/51.1 ft/lbs (100/70 Nm)
Tool mounting din 69 871-a: CAT 40
Tool clamping force: 8,000 N
Tool releasing force: 13,000 N
Acceleration 0-12,000 rpm: 2.3 seconds
Deceleration 12,000 rpm-0: 1.4 seconds
Number of tools: 30
Maximum tool diameter: 3.9" (100 mm)
Maximum tool diameter, vacant adjacent places: 5.5" (140 mm)
Maximum tool length: 11.8" (300 mm)
Maximum tool weight: 15.4 lbs (7 kg)
Maximum loading weight of tool magazine: 198 lbs (90 kg)
Chip to chip time: Approximately 7 seconds
Loading height (upper edge of table): 33.5" (850 mm)
Maximum work load capacity: 1,320 lbs (600 kg)
