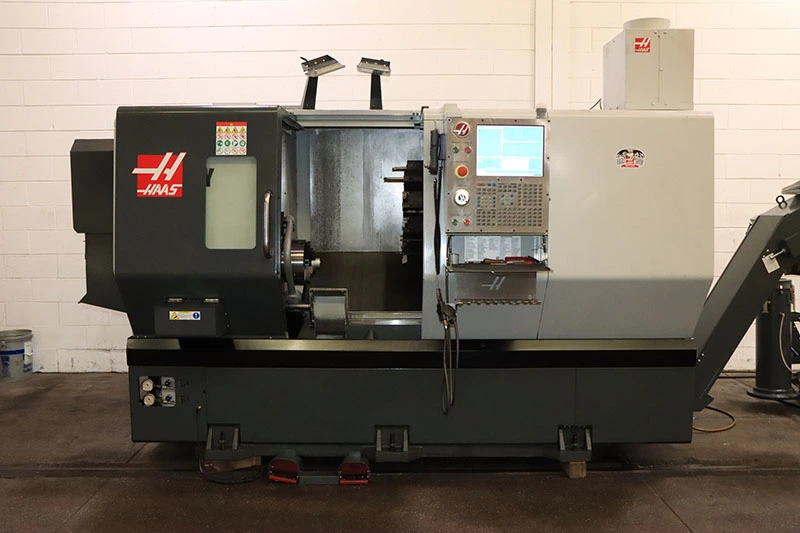

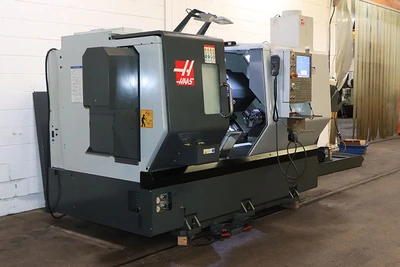

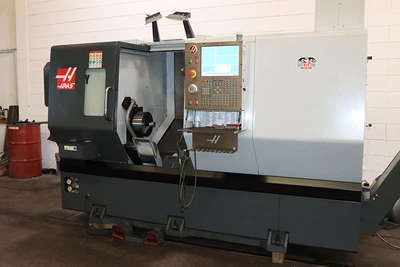

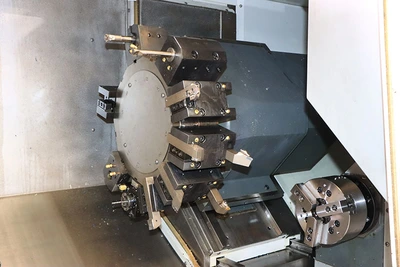

USED 2017 Haas DS-30Y

2017 HAAS DS30Y Multi-Axis CNC Turning Center

Specifications:

Swing Over Front Apron: 31.8″

Swing Over Cross Slide: 20.8″

Swing Over Cross Slide: 21.8″

Chuck Size: 10.0″

Max Cutting Diameter (varies with turret): 18.0″

Max Cutting Length (varies with workholding): 23.0″

Bar Capacity: 3.00″

X-Axis: 12.5″

Z-Axis: 23.0″

Rapids on X: 472 ipm

Rapids on Y: 472 ipm

Rapids on Z: 945 ipm

Spindle Nose: A2-6

Max Rating: 30.0 HP

Max Speed: 4500 RPM

Max Torque: 275 ft-lbf @ 600 RPM

Spindle Bore ø: 3.50″

Sub-Spindle Chuck Size: 8.3″

Sub-Spindle Spindle Nose: A2-5

Sub-Spindle Max Rating: 20 HP

Sub-Spindle Max Speed: 4,800 RPM

Sub-Spindle Bore: 2.0″

Sub-Spindle: 2.0″

Machine Weight: 16,000 LBS

EQUIPPED WITH:

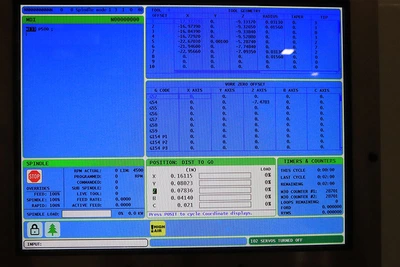

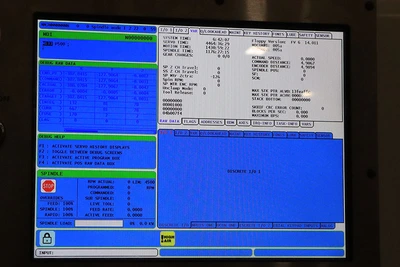

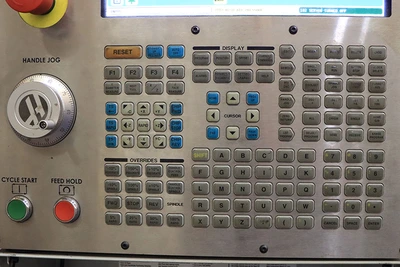

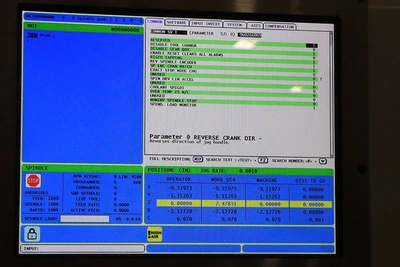

Haas CNC Control

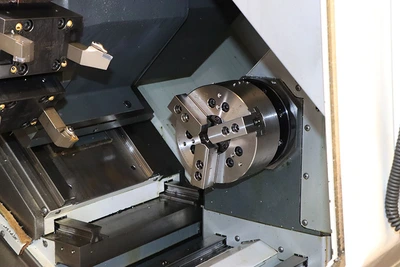

10″ & 8″ 3-Jaw Chucks

Auto Tool Presetter

Parts Catcher

Live Tooling

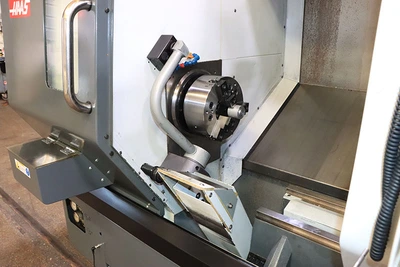

Sub-Spindle

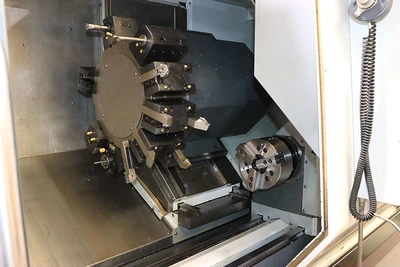

12 Station Turret

1,000 PSI High Pressure Coolant

Aux. Coolant Filter

Belt Type Chip Conveyor

Enclosure Exhaust System

High Intensity Lighting

FOR MORE INFORMATION: Call Mike at 973-497-7540
