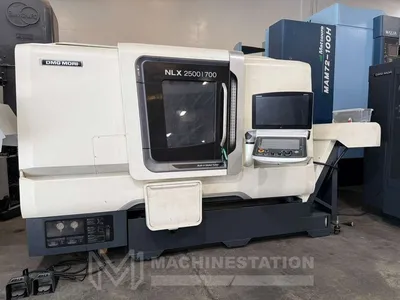

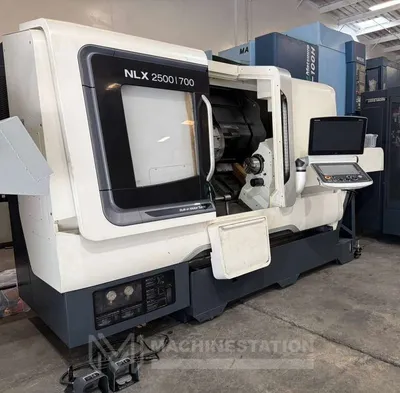

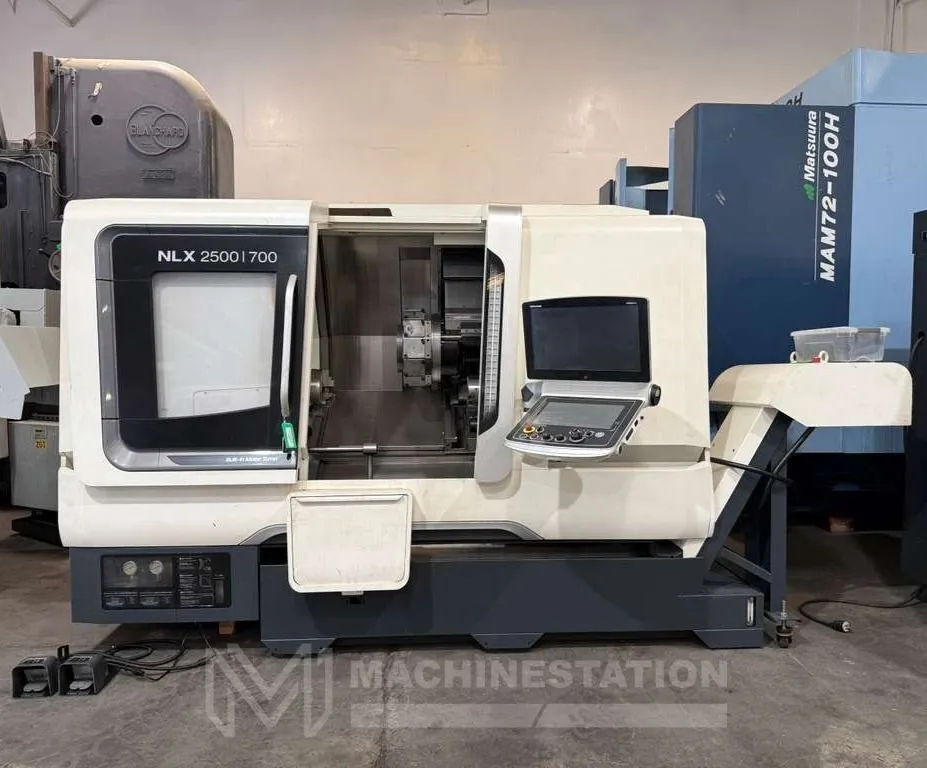

USED 2019 DMG MORI NLX 2500SY/700

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

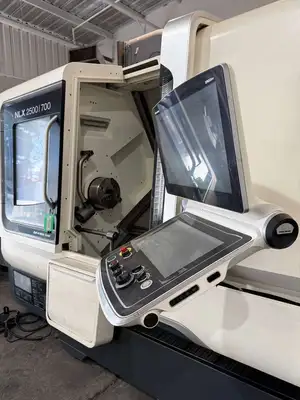

M730UM with CELOS - ERGOline Touch CNC Control

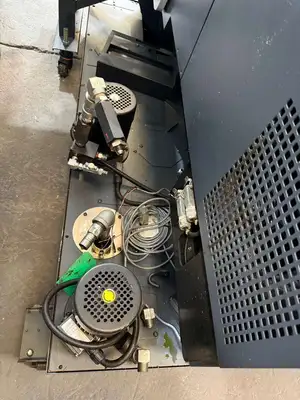

Coolant Tank

Capacity:
Max Turning Diameter: 14.4″
Max Turning Length: 27.7″
Max Swing Over Bed: 36.2″
Max Swing Over Cross Slide: 29.7″
Max Bar Capacity: 3.1″

Travels:
X Axis Travel: 10.2″
Y Axis Travel: 3.90″ (±1.95″)
Z Axis Travel: 31.2″
B Axis Travel (Sub Spindle): 28.8″
C Axis Indexing: 360° (0.001°)
Rapid Traverse Rate X, Z & B Axis: 1181 IPM
Rapid Traverse Rate Y Axis: 393 IPM

Main Spindle:
Main Spindle Nose: A2-8
Main Spindle Bore: 3.58″
Main Spindle Speed: 4,000 RPM
Main Spindle Motor: 25 HP

Sub Spindle:
Sub Spindle Nose: A2-5
Sub Spindle Bore: 2.8″
Sub Spindle Speed: 6,000 RPM
Sub Spindle Motor: 15 HP

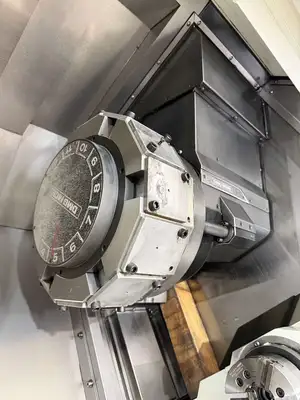

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.27 Second
Rotary Tool Speed: 10,000 RPM
Rotary Tool Motor: 7.5 HP
Tool Holder Type: BMT

General:
Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 50 KVA
Overall Dimensions: 156.7″ × 82.9″ × 86.6″ High
Weight: 13,992 lbs. Approx.
