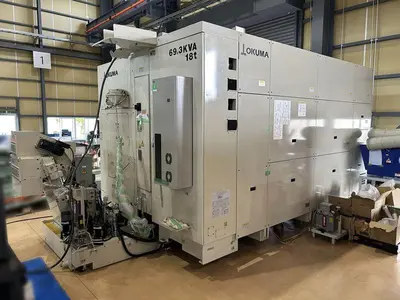

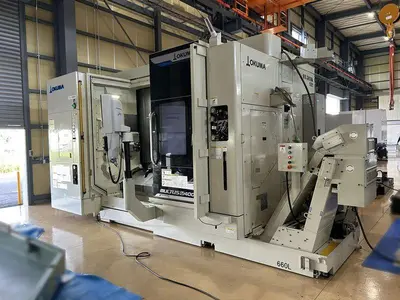

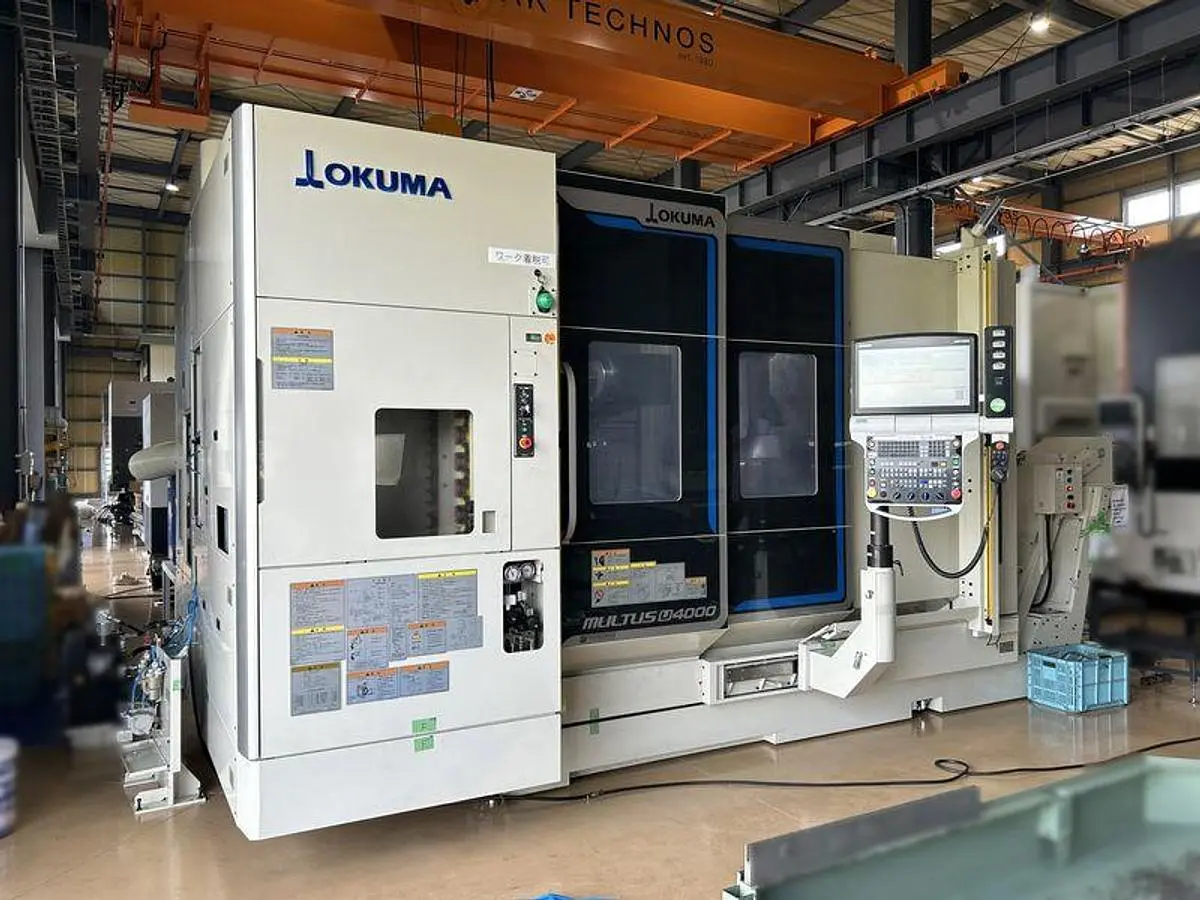

USED 2024 OKUMA MULTUS-4000U

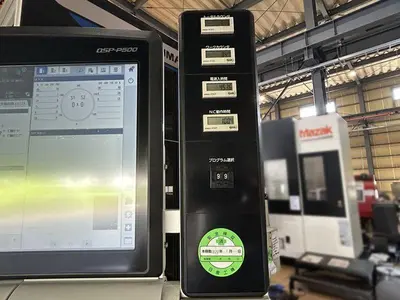

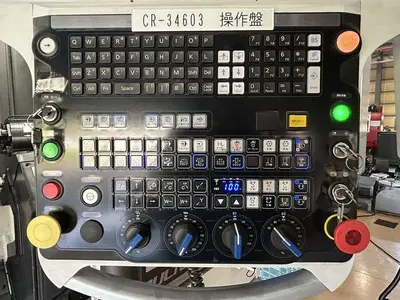

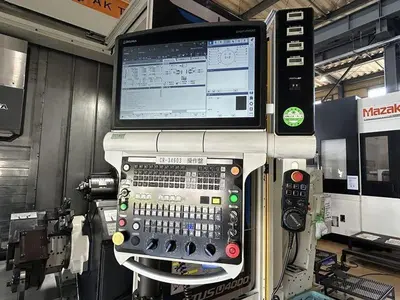

OSP-P500S CNC Control

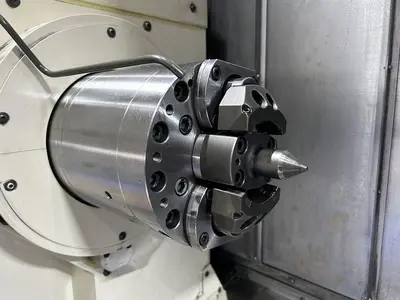

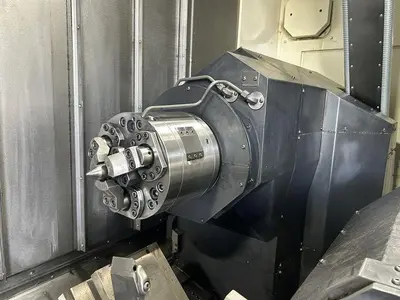

Main spindle: D230 2J COMP (Teikoku Chuck) 　　　

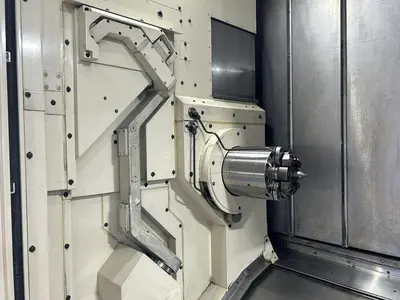

Opposed spindle: FD‑215 (Teikoku Chuck)
Hydraulic cylinders: Main / Opposed – SIN‑L125 (SMW)
SMW special steady rest (mounted on lower turret)
Coolant circuit: Upper turret through‑spindle, low pressure 　　　
Tool turret air blow:
　　Upper: shared with HI coolant (through during L/M rotation/ outer circumference)
　　Lower: combined with coolant nozzle 　　　
In‑machine work measurement: RMP60 (Renishaw) 　　　
Tool setter
Work support rest (mounted on lower turret) 　　　
Easy conversational advice function
Cycle tapping
DNC‑TI
Helical cutting
Inclined machining mode

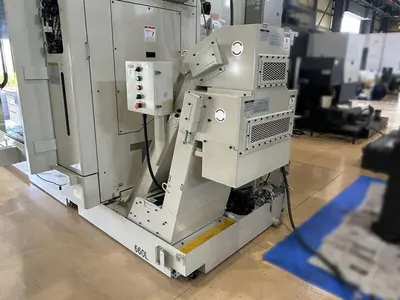

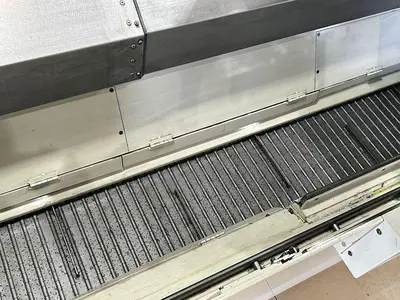

Chip conveyor (front right discharge)

Spindle speed : 45～4,200 rpm
Spindle tip : JIS A2-８
Main spindle through‑hole diameter: φ91 mm

Opposed spindle speed: 38～3,800 rpm
Opposed spindle nose: JIS A2‑8
Opposed spindle through‑hole diameter: φ80 mm 　　　

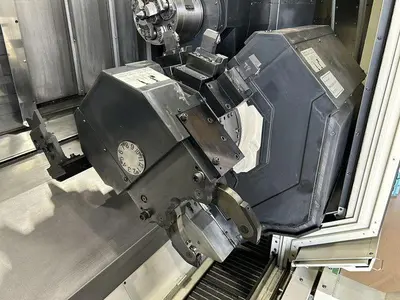

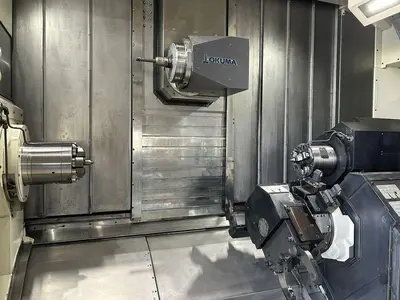

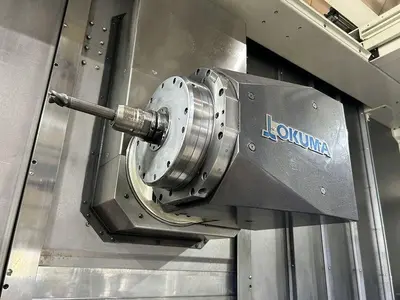

Turret type: Upper: H1 (shared for L/M)　　Lower: V12 　　　

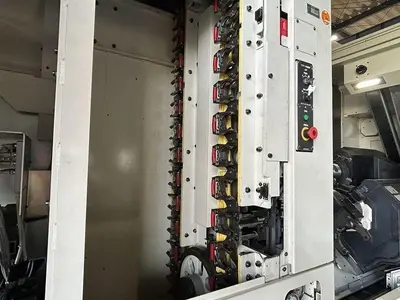

Tool storage capacity: 40 tools
Tool spindle speed (upper): 50～12,000 rpm

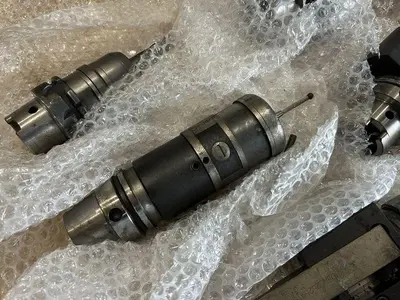

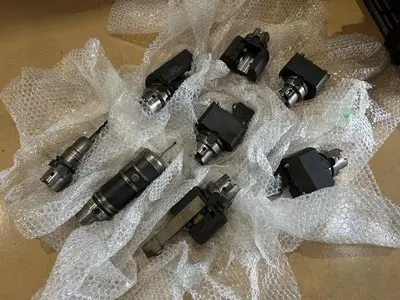

Tooling interface: HSK‑A63
