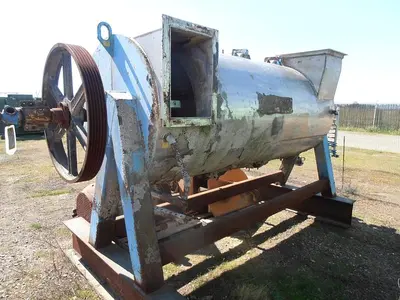

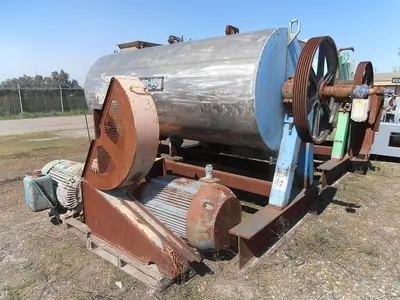

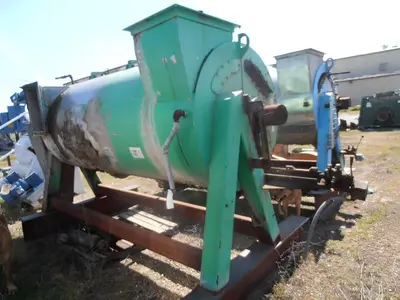

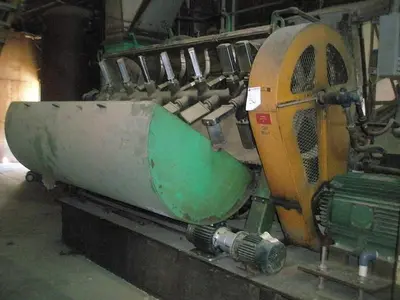

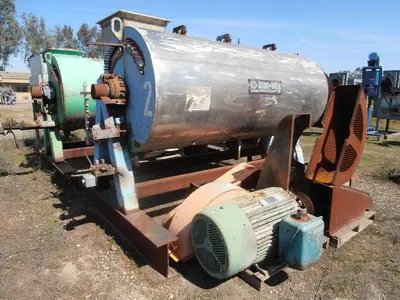

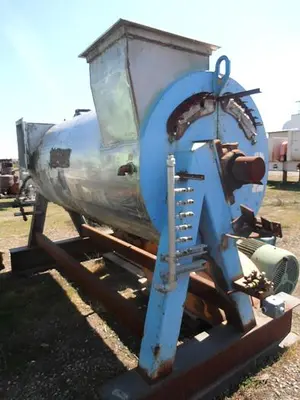

Mixer, Paddle, 100 CF, S/st, C/st, Jkt, Continuous (2) #S737860

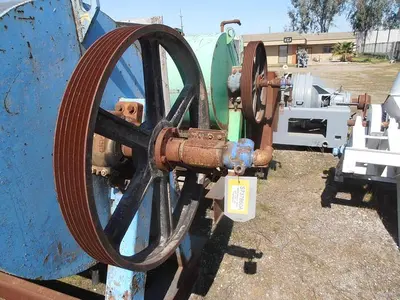

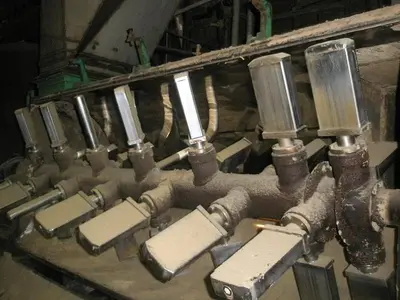

(2) Continuous paddle mixer, approximately 100-cubic foot capacity, jacketed chamber, measures 4' diameter x 9' long, stainless steel chamber with stainless steel paddles. Includes (4) rows paddles, (26) paddles total, 10" x 5" x 1-3/4" thick. Paddles are fixed to 6" diameter cored center shaft for heating, mild steel shaft. Driven by 125 HP, 1785 RPM, 230/460V, 3/60Hz motor thru V-belt drive. Includes rotary steam joint & hydraulic ram to open/close front section of mixing chamber. Manufactured by Con-Vey Systems. Previously mixing wood fiber and resin together. Paddles rotate in counter clockwise rotation. Most paddles are at 40-45 degree angle to convey product towards end, end paddles are turned to 0-10 degree to push material out back on right hand side of blender. In good working condition when taken out of service.

Stock Number: S737860
Manufacturer: Con-Vey Systems
Cubic Feet: 100
Measurements: 4' Diameter x 9' Long
HP: 125
Materials of Construction: Stainless Steel
Previous Use: Mixing wood fiber and resin together
Basis: Each, FOB
