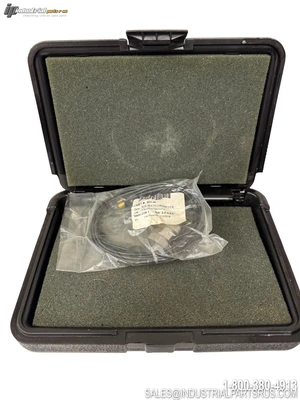

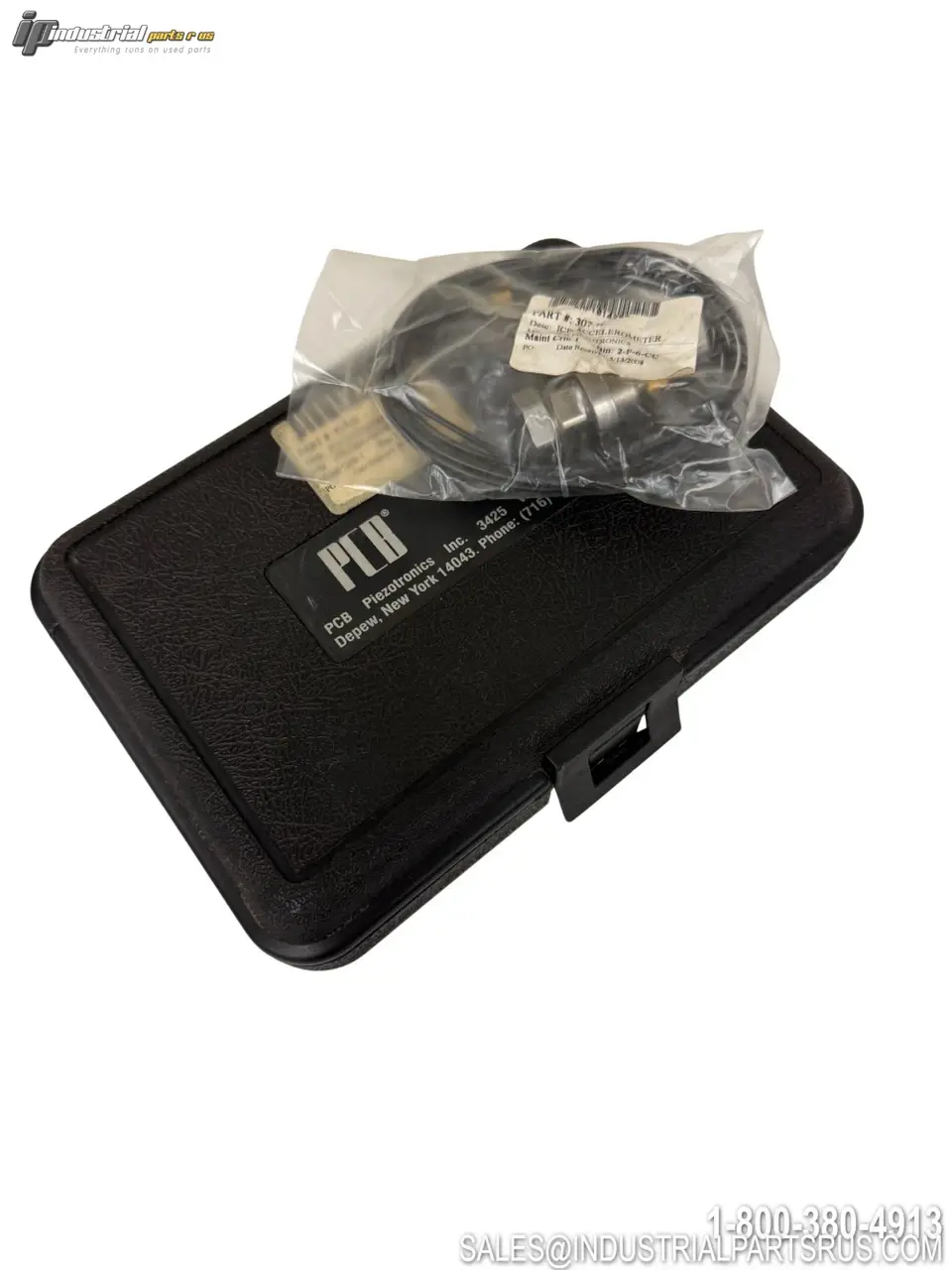

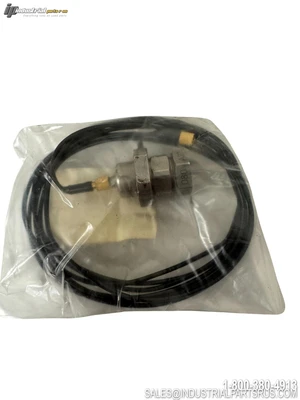

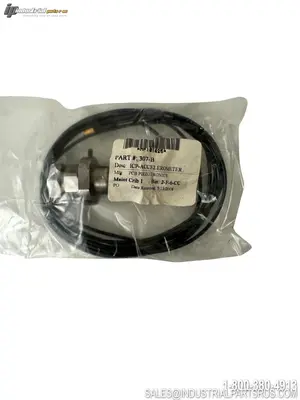

NEW PCB 307-B

The PCB Piezotronics Model 307-B is a high-sensitivity, quartz shear ICP® (Integrated Circuit Piezoelectric) single-axis accelerometer designed for precision vibration and shock measurement. It features a 100 mV/g sensitivity, a broad frequency range of 2.5 to 10,000 Hz, a 10-32 top coaxial connector, and ground isolation, making it well-suited for R&D, structural analysis, aerospace, automotive, and industrial test applications. The sensor operates on a constant-current ICP® power source and delivers a low-impedance voltage output compatible with standard data acquisition systems and signal conditioners.
Specification
Value
Brand
PCB Piezotronics
Model / Part Number
307-B
Product Type
ICP® Accelerometer (Vibration Sensor)
Sensing Technology
High Sensitivity Quartz Shear ICP®
Sensitivity
100 mV/g (±10%)
Frequency Range
2.5 Hz to 10,000 Hz (±5%)
Measurement Range
±50 g pk
Output Type
ICP® / IEPE Voltage Output (Low Impedance)
Connector Type
10-32 Top Connector
Ground Isolation
Yes (Ground Isolated)
Number of Axes
Single Axis
Supply (Power)
Constant Current ICP® Power Source (2–20 mA typical)
Manual Reference
Manual 21354 Rev E (ECN 50523)
Manufacturer
PCB Piezotronics, Inc. (An Amphenol Company)
Headquarters
Depew, New York, USA
We warranty all items for 30 days from date of purchase.
