USED 2020 YASDA PX-30I
Overview

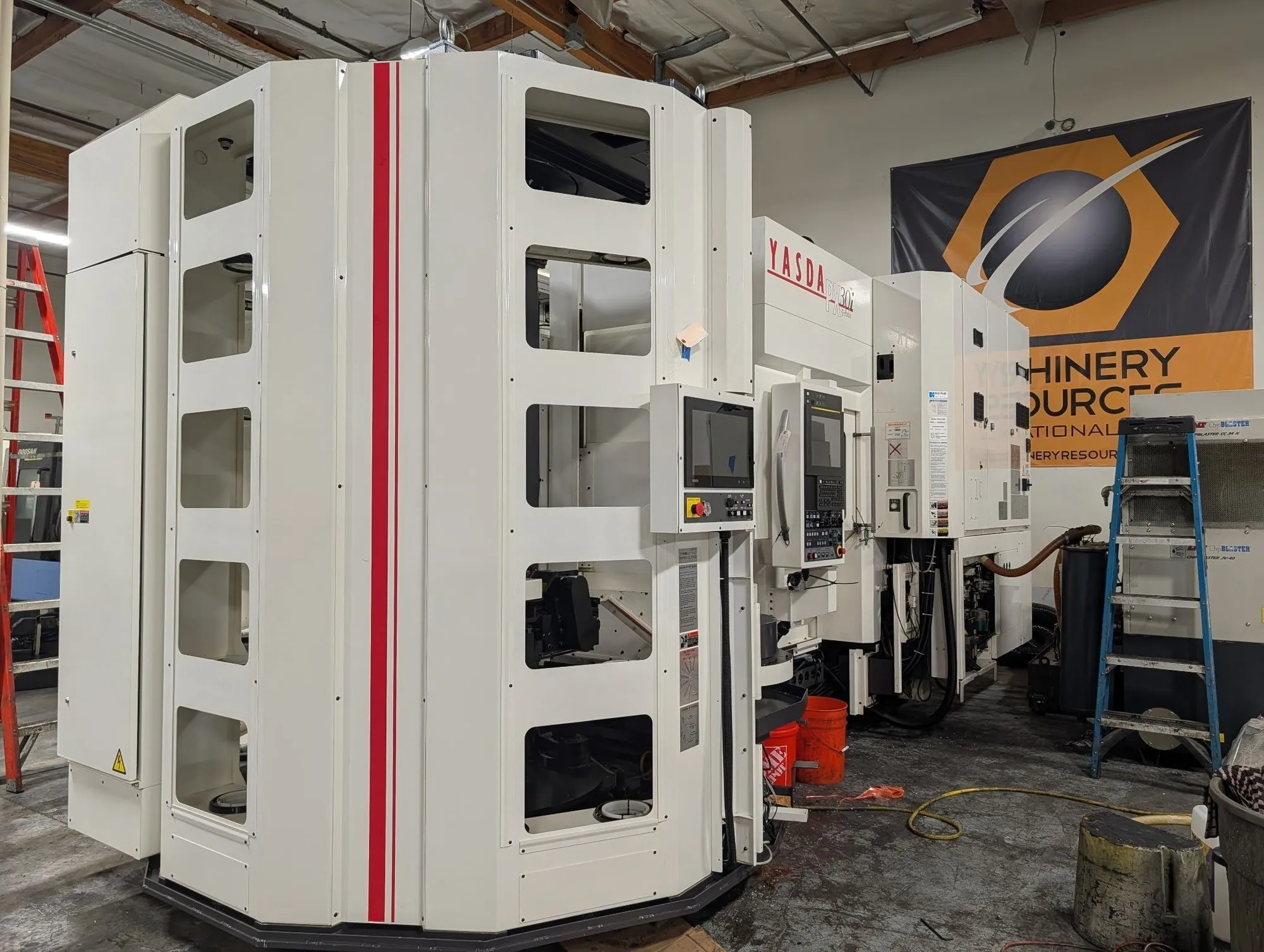

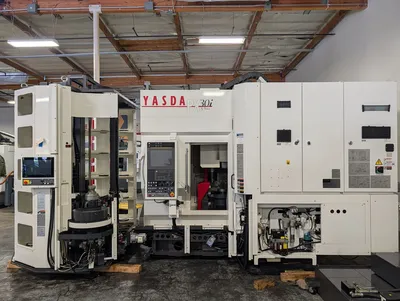

YASDA PX-30i 5-axis vertical machining center from 2020, in used condition. Features include a 26.8" X travel, 15.8" Y travel, 19.7" Z travel, 20,000 RPM spindle, and 314-tool ATC, with 7/24 taper No. 40. 32 pallet shelf system
Specs
Specification PX30i
Accuracy [ISO230-2 (2014)] 2.3, 1.4, 2.1μm
Travel (X, Y, Z-axis) 680 x 400 x 500mm 26.77 x 15.74 x 19.68inch
Travel (B) -125～+65deg
Travel (C) 360deg (Continuous)
Pallet Working Size Dia. 185mm Dia. 7.28inch
Spindle RPM 20,000min⁻¹
Spindle Taper BBT40 [HSK-A63 (op)]
Max. Workpiece Dia. 400 x 315mm (limitation) Dia. 15.75 x 12.40inch (limitation)
Maximum Loading Capacity 80kg 176.37lbs
Rapid Traverse (X,Y,Z) Max. 60,000mm/min Max. 2,362.20inch/min
Table Tilting Speed (B) Max. 75min⁻¹
Table Rotation Speed (C) Max. 125min⁻¹
ATC Capacity Max. 323 tools
Axis 5
Type Vertical
Equipped With
32 pallet shelf system
313 tool atc
fanuc 31ia5 control
high pressure coolant
chip conveyer
spindle chiller
hardened and ground ways
40 taper spindle
