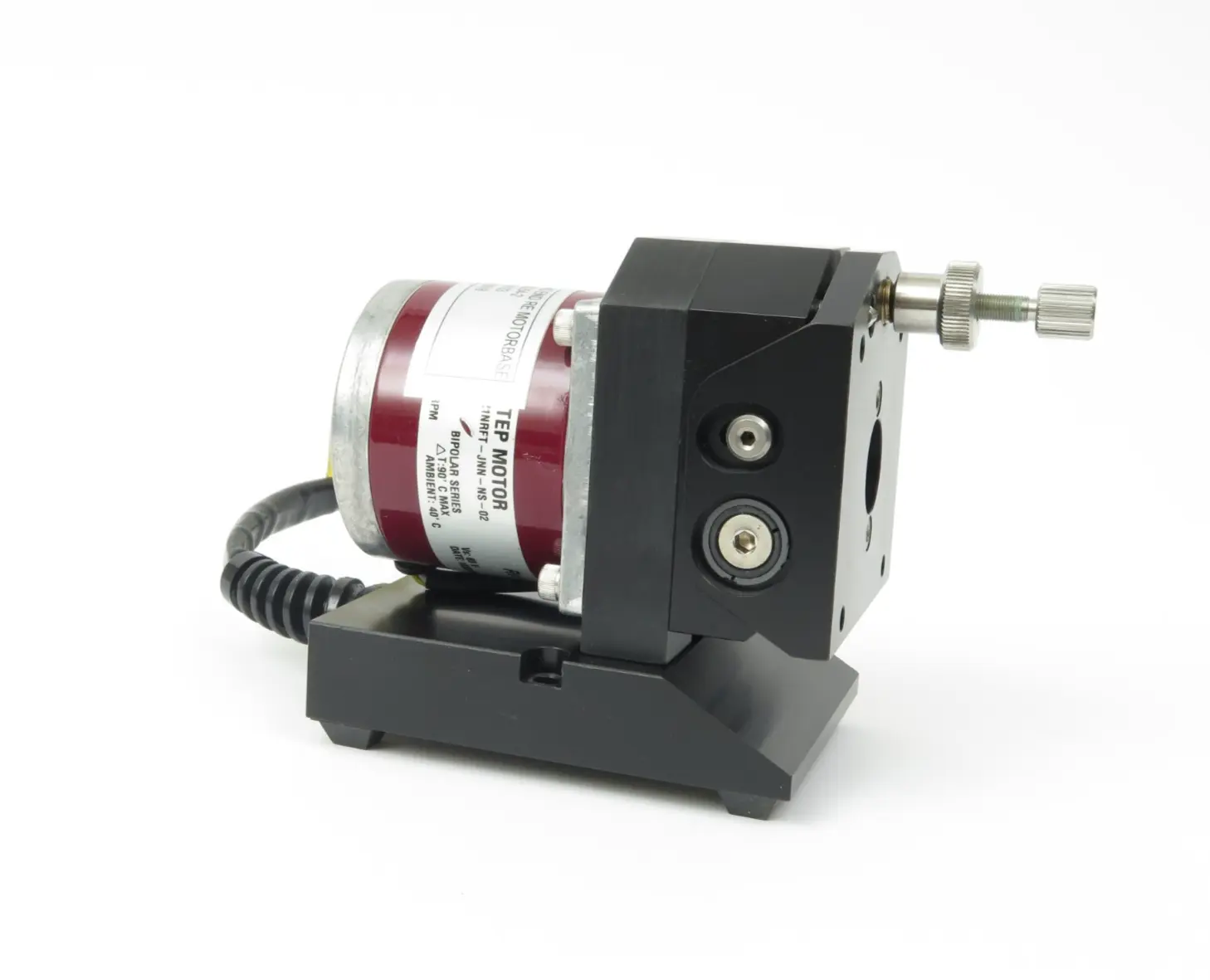

NEW IVEK 102254-2

ITEM SPECIFICSManufacturer: IVEK CorporationModel: 102254-2Type: Single End Motor/Base ModuleConfiguration: Single EndMotor Type: Rare Earth Stepper MotorSystem Type: Rotary Liquid Dispensing / MeteringStep Angle: 1.8°Motor Frame: Size 23Drive Type: Unipolar StepperApplication: Precision Fluid Dispensing / MeteringCountry of Manufacture: United StatesCondition: Appears New / UnusedAn exact IVEK 102254-2 has been documented as a Microspense AP single-end motor/base using a 1.8° stepping motor, including an example configured with an IVEK 2A pump module.MANUFACTURER SPECIFICATIONSIVEK's manufacturer documentation for its Single Ended Rotary Adjust Motor/Base Module lists the following specifications for the Rare Earth stepping-motor configuration:Motor: Rare Earth Step MotorMotor Size: 23Step Angle: 1.8°Motor Wiring: Unipolar, 6-wireProtection Class: IP40Insulation: UL Recognized Class B, 130°CRated Voltage: 2.5 VDC per phaseCurrent: 4.55 A per phaseResistance: 0.55 Ohm per phaseInductance: 2.5 mHVoltage Constant: 24.81 V/KRPMHall Effect Sensor Supply Voltage: 6–24 VDCHall Effect Sensor Supply Current: 13 mASensor Output Voltage: 0.4 VDCSensor Output: Open CollectorSensor Output Current: 20 mAIVEK describes the Motor/Base Module as producing combined rotary and linear movement to synchronize the liquid-displacement and valving functions of an attached pump module. The assembly incorporates the motor, spindle, spindle sensor, base frame, and pump adjustment mount.CONDITION DESCRIPTIONAppears to be new and unused. Unit shows no obvious evidence of prior operational use, although it may have minor cosmetic marks from storage or handling. We have not installed the motorbase into a complete IVEK dispensing system for operational testing. Please review all photos closely for the exact condition, configuration, connectors, and included components.LISTING DESCRIPTIONIVEK Corporation Single End RE Motor/Base Module, Model 102254-2, designed for precision liquid dispensing and metering applications.This is a single-ended rotary motor/base assembly utilizing a Rare Earth stepper motor. IVEK liquid dispensing systems are built around three primary components: a pump module, motorbase/actuator, and controller. The motor/base drives the piston within the attached precision pump module to provide synchronized displacement and valving.The Rare Earth motor configuration provides improved acceleration/deceleration and torque characteristics compared with IVEK's standard stepping-motor configuration.IVEK rotary dispensing systems are used for highly precise liquid dispensing and metering in laboratory, pharmaceutical, diagnostic, manufacturing, and automated process applications. IVEK currently describes its rotary systems as capable of extremely small-volume precision dispensing, depending upon the pump, motorbase, controller, and overall system configuration.This unit appears new and unused and would be an excellent replacement component or system-integration part for an existing compatible IVEK installation.Key FeaturesGenuine IVEK Corporation componentModel 102254-2Single End RE Motor/Base configurationRare Earth stepper motor1.8° step angleSize 23 motorPrecision rotary dispensing driveIntegrated spindle sensingAdjustable pump displacement interfaceDesigned for IVEK precision liquid dispensing systemsAppears new and unusedSuitable for replacement, integration, or spare inventoryIncludedIVEK Single End RE Motor/Base Model 102254-2 Shipping Returns Policies Shipping Orders ship within 1 business day of payment, subject to freight scheduling. We do not ship to Alaska, Hawaii, territories, or APO/FPO mailboxes unless prior arrangements are made. Any orders shipped via shipping or freight forwarder are final sale with no returns. Freight All freight damage must be noted on the Bill of Lading (BOL) at the time of delivery. Take clear photos of: The damaged item Packaging The BOL damage notation Retain all original packaging until the claim is resolved. Failure to follow these steps may result in denial of any refund related to shipping damage. International buyers are fully responsible for: Customs clearance Duties and taxes Brokerage fees Buyer must arrange for their own customs broker if required. Seller does not provide customs clearance services. All shipments are FOB origin, title and risk transfer to buyer at shipping point. Returns Anacapa Equipment Brokers, Inc. is committed to excellent customer service. Items are sold as-is with a 30-day Right of Return, unless otherwise stated. Only items shown in the listing photos are included. Buyer may return equipment for any reason within 30 days of receipt, provided it is returned in the same condition as shipped. No returns or refunds will be accepted if the buyer uses a shipping or freight forwarder for international shipment. Store Policies All equipment is sold as-is with no warranty of merchantability or fitness for a particular purpose. Buyer assumes all risk regarding the quality, performance, suitability, and safety of the equipment. Equipment should only be installed and operated by qualified personnel. Seller is not liable for any damages, injuries, or losses, incidental or consequential, related to the use of purchased equipment. Buyer agrees to defend, indemnify, and hold harmless Anacapa Equipment Brokers, Inc., its officers, employees, and agents from all claims, damages, or expenses, including legal fees, arising out of the purchase, ownership, or use of equipment.
