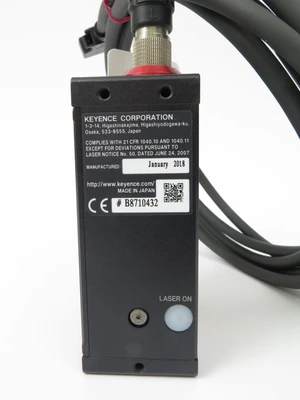

NEW KEYENCE LJV7020

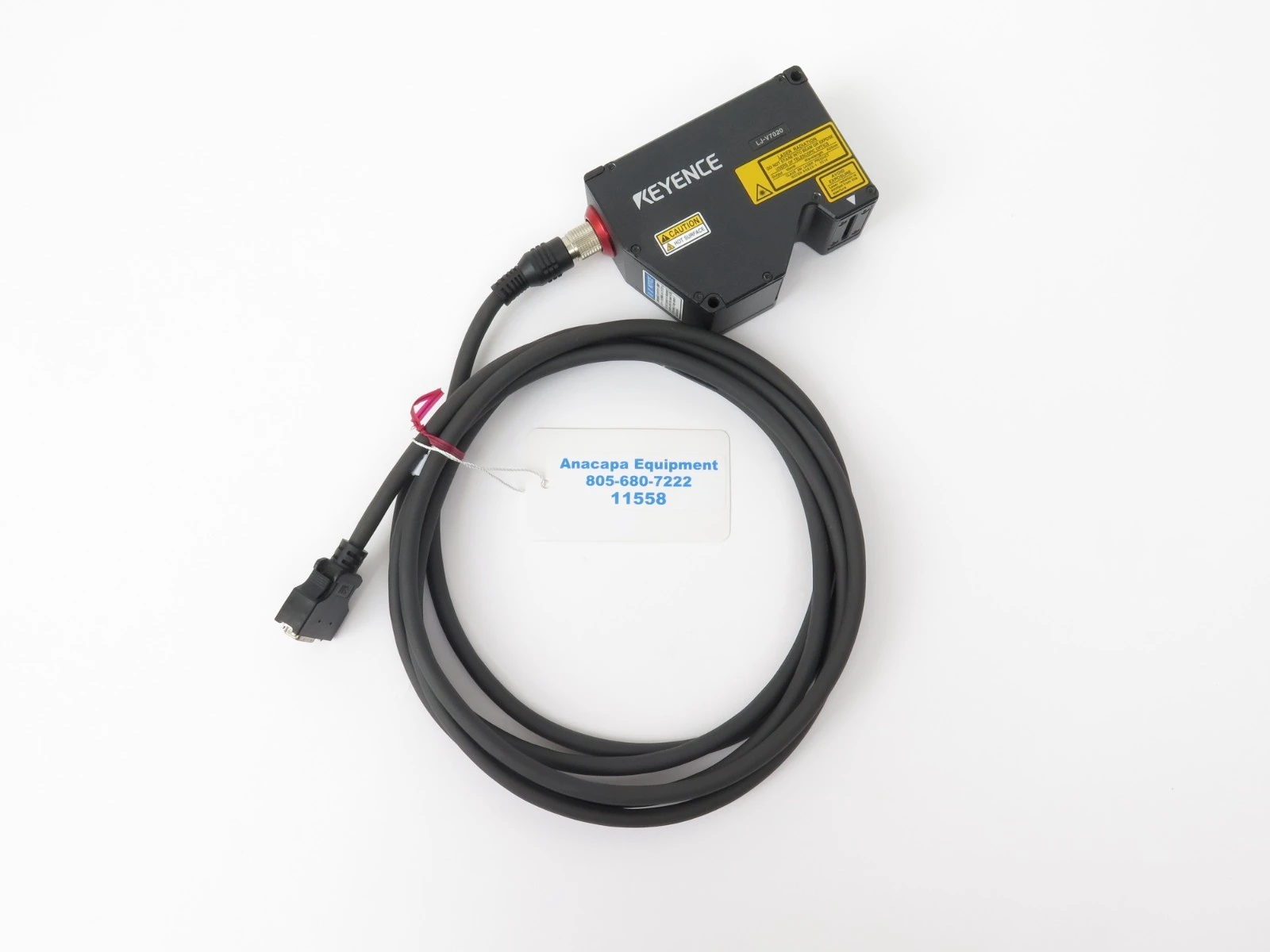

ITEM SPECIFICSBrand: KEYENCEModel: LJ-V7020Series: LJ-V7000Type: High-Speed 2D Laser Profiler Sensor HeadIncluded Cable: KEYENCE CB-B3Measurement Method: Diffuse ReflectionReference Distance: 20 mm / 0.79"Z-Axis Measurement Range: ±2.6 mmZ-Axis Full Scale: 5.2 mmX-Axis Width at Reference Distance: 7 mmX-Axis Width Near Side: 6.5 mmX-Axis Width Far Side: 7.5 mmLaser Type: Blue Semiconductor LaserLaser Wavelength: 405 nmLaser Output: 10 mWLaser Class: Class 2MSpot Size: Approx. 14 mm x 35 µmZ-Axis Repeatability: 0.2 µmX-Axis Repeatability: 2.5 µmZ-Axis Linearity: ±0.1% F.S.Profile Data Interval: 10 µmMaximum Sampling Speed: 16 µs / 64 kHzEnclosure Rating: IP67 when properly connectedHousing Material: AluminumWeight: Approx. 410 gCondition: Appears Unused / No Original PackagingCONDITION DESCRIPTIONExcellent cosmetic condition and appears to be unused. The sensor does not include its original factory packaging. Includes the pictured KEYENCE CB-B3 cable. We have no evidence of previous installation or operational use. Unless otherwise shown or stated, the unit has not been connected to a complete compatible KEYENCE controller system for functional testing. May show minor cosmetic marks from storage or handling. Please review all photos closely for the exact condition and included components.LISTING DESCRIPTIONKEYENCE LJ-V7020 High-Speed 2D Laser Profiler Sensor Head from the LJ-V7000 Series, including a KEYENCE CB-B3 cable.The LJ-V7020 is a precision industrial profile measurement sensor designed for high-speed inline dimensional measurement, inspection, surface profiling, positioning, and quality-control applications.The sensor uses a 405 nm blue semiconductor laser with a reference measuring distance of 20 mm. Its Z-axis measuring range is ±2.6 mm, while the X-axis measuring width is approximately 7 mm at the reference distance.The LJ-V7020 is capable of extremely high-speed profile acquisition, with a maximum trigger interval of approximately 16 µs in high-speed mode, equivalent to sampling speeds up to approximately 64 kHz.KEYENCE specifies Z-axis repeatability as fine as 0.2 µm, X-axis repeatability of 2.5 µm, and Z-axis linearity of ±0.1% of full scale under specified measurement conditions.Typical LJ-V7000 Series applications include:Precision dimensional inspectionHeight and step measurementWidth and position measurementSurface profile inspectionFlatness and warpage measurementAutomated production-line quality controlSemiconductor and electronics manufacturingPrecision machining inspectionAutomotive component inspectionThe LJ-V7020 sensor head requires compatible KEYENCE system components for operation and is not a standalone measurement instrument.This example is in exceptionally clean condition and appears to be unused. It also includes the KEYENCE CB-B3 cable, adding value and making it more useful for integration into a compatible system.Key FeaturesGenuine KEYENCE industrial measurement sensorModel LJ-V7020LJ-V7000 SeriesIncludes KEYENCE CB-B3 cableHigh-speed 2D laser profiling405 nm visible blue semiconductor laser20 mm reference distance±2.6 mm Z-axis measurement range7 mm X-axis measuring width at reference distanceUp to 64 kHz sampling0.2 µm specified Z-axis repeatability10 µm profile data intervalIP67-rated sensor head when properly connectedAluminum constructionDesigned for precision inline inspectionAppears unusedNo original packagingINCLUDEDKEYENCE LJ-V7020 Sensor HeadKEYENCE CB-B3 Cable Shipping Returns Policies Shipping Orders ship within 1 business day of payment, subject to freight scheduling. We do not ship to Alaska, Hawaii, territories, or APO/FPO mailboxes unless prior arrangements are made. Any orders shipped via shipping or freight forwarder are final sale with no returns. Freight All freight damage must be noted on the Bill of Lading (BOL) at the time of delivery. Take clear photos of: The damaged item Packaging The BOL damage notation Retain all original packaging until the claim is resolved. Failure to follow these steps may result in denial of any refund related to shipping damage. International buyers are fully responsible for: Customs clearance Duties and taxes Brokerage fees Buyer must arrange for their own customs broker if required. Seller does not provide customs clearance services. All shipments are FOB origin, title and risk transfer to buyer at shipping point. Returns Anacapa Equipment Brokers, Inc. is committed to excellent customer service. Items are sold as-is with a 30-day Right of Return, unless otherwise stated. Only items shown in the listing photos are included. Buyer may return equipment for any reason within 30 days of receipt, provided it is returned in the same condition as shipped. No returns or refunds will be accepted if the buyer uses a shipping or freight forwarder for international shipment. Store Policies All equipment is sold as-is with no warranty of merchantability or fitness for a particular purpose. Buyer assumes all risk regarding the quality, performance, suitability, and safety of the equipment. Equipment should only be installed and operated by qualified personnel. Seller is not liable for any damages, injuries, or losses, incidental or consequential, related to the use of purchased equipment. Buyer agrees to defend, indemnify, and hold harmless Anacapa Equipment Brokers, Inc., its officers, employees, and agents from all claims, damages, or expenses, including legal fees, arising out of the purchase, ownership, or use of equipment.
