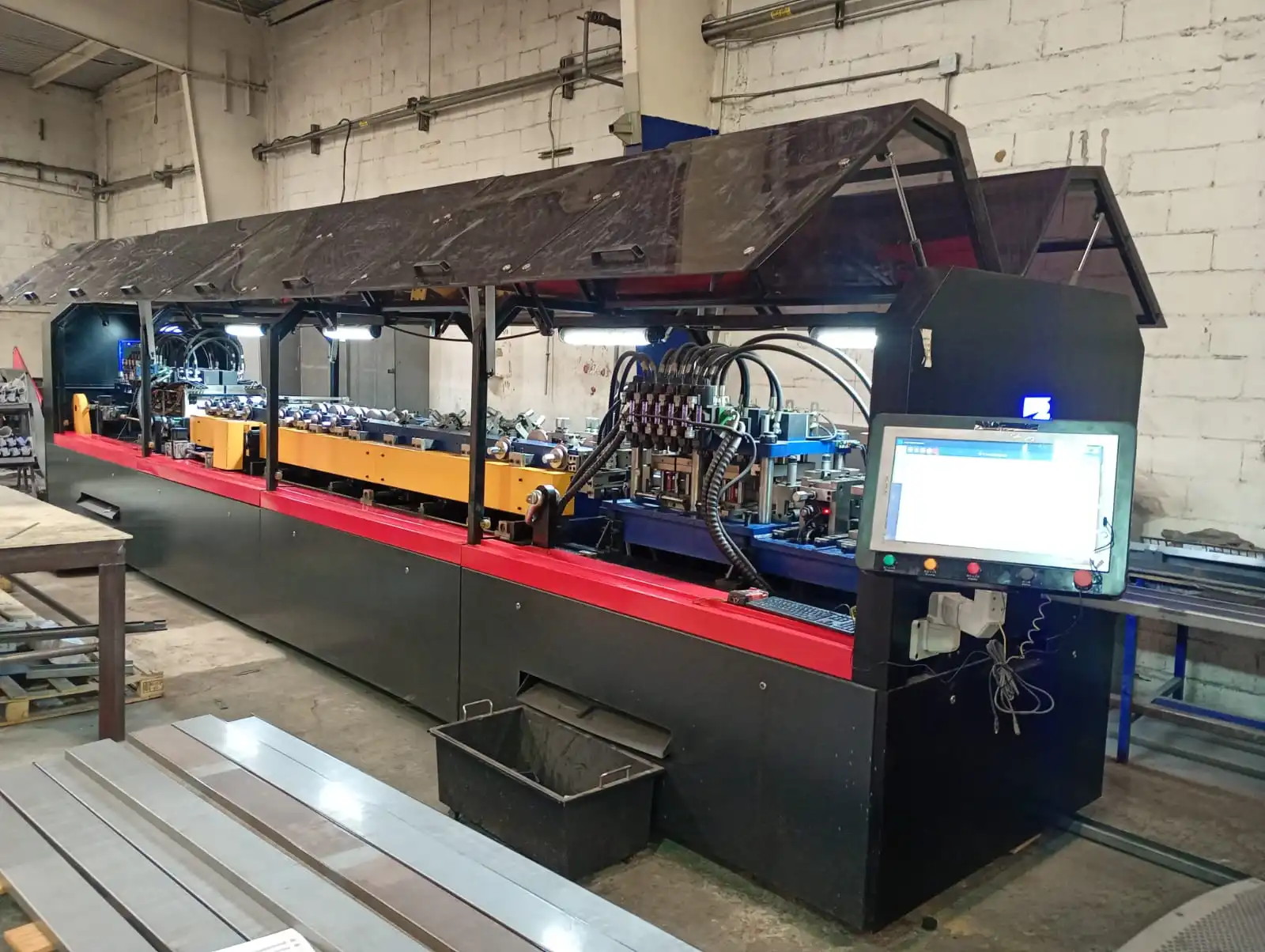

USED 2022 XIAMEN MF1600T
Overview
2022 Ximen MF1600T Roll Former. Machine is in very good condition and can be inspected under power as needed. The machine can manufacture profiles for:
Structural steel wall studs
Wall tracks
Load-bearing wall framing
Non-load-bearing partition studs
Floor framing / light-duty joist applications
Roof and truss framing components
Modular and prefabricated building frames
Residential light-gauge steel framing
Commercial light-gauge steel framing
INTEGRATED OPERATIONS
Specs
MACHINE SPECIFICATIONS
Profile type: C-shaped light-gauge steel framing
Profile width: 75–160 mm (adjustable via PLC control; standard widths: 75 mm, 89 mm, 92 mm, 140 mm, plus custom intermediates)
Profile flange: 32–41 mm (commonly 41 mm)
Profile lip: 8–15 mm (adjustable)
Material thickness: 0.75–1.6 mm (approx. 22–16 gauge)
Material: Galvanized or zinc-coated high-tensile steel coil (ASTM A1003, ASTM A653, G500/G550)
Max yield strength: ~80 ksi at 1.6 mm thickness
Punching accuracy: ±0.5 mm
Main motor power: 15 kW
Hydraulic station motor: 11 kW
Total machine power: ~29 kW
Machine dimensions: ~13 m × 1.2 m × 1.6 m (naked package)
Control system: CNC/PLC with 21-inch touchscreen (e.g., LG-R1 or Panasonic)
Operating speed: 400–900 m/h
Hydraulic cylinder volume: 200 L
Cooling: Thermostatic hydraulic temperature control
Equipped With
Hydraulic decoiler
Coil feeding and leveling
Automatic profile-width adjustment
Pre-punching
Roll forming
Post-punching
Automatic length measurement
Hydraulic cutting
Dual-side inkjet printing / component identification
Automated control system with 21-inch touchscreen
Run-out table
