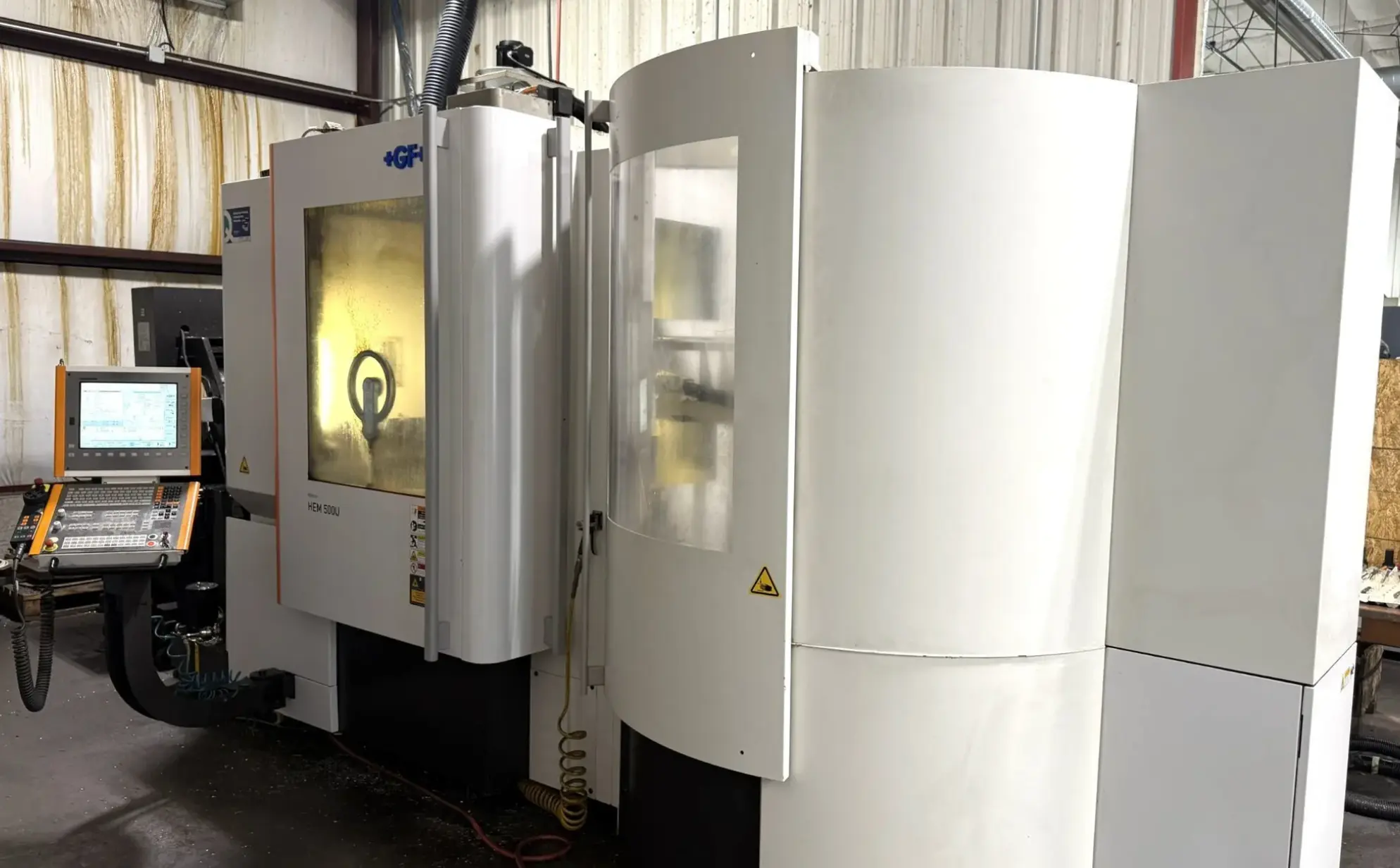

USED 2014 +GF+ MIKRON HEM 500U
Overview
Used 5-axis vertical machining center. Features include 500.13mm platter, 299.8kg load capacity, 20,000 RPM spindle, Heidenhain iTNC 530 CNC, and 40-position ATC.
Specs
PLATTER DIAMETER 500.13 mm
TABLE LOAD CAPACITY 299.8 kg
NUMBER OF PALLETS 5
X-AXIS TRAVEL 500.13 mm
Y-AXIS TRAVEL 449.83 mm
Z-AXIS TRAVEL 400.05 mm
A-AXIS (TILT) TRAVEL –65° / +110°
C-AXIS (ROTATION) TRAVEL 360°
SPINDLE SPEED 20,000 RPM
SPINDLE MOTOR 22.4 kW
SPINDLE TAPER CAT 40
TOOL CAPACITY (ATC) 30
RAPID TRAVERSE RATE
Dimensions 105" x 128" x 123"
Weight 14,330 lbs
Equipped With
HEIDENHAIN iTNC 530 FS CNC CONTROL
5-AXIS (3+2)
HEM ROTARY TILTING TABLE
20,000 RPM SPINDLE
40 POSITION AUTOMATIC TOOL CHANGER
THROUGH SPINDLE COOLANT (300 PSI)
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM
BLUM LASER TOOL SETTER
OIL MIST SPRAY
MPG HANDWHEEL CONTROL
SPINDLE CHILLER
AUTOMATIC LUBRICATION SYSTEM
COOLANT TANK
COOLANT FILTRATION SYSTEM
CHIP CONVEYOR
** MACHINE CUTTING PRIMARILY 416 STAINLESS STEEL
