USED 2013 FANUC M-900iA/350 + R30iA
Overview

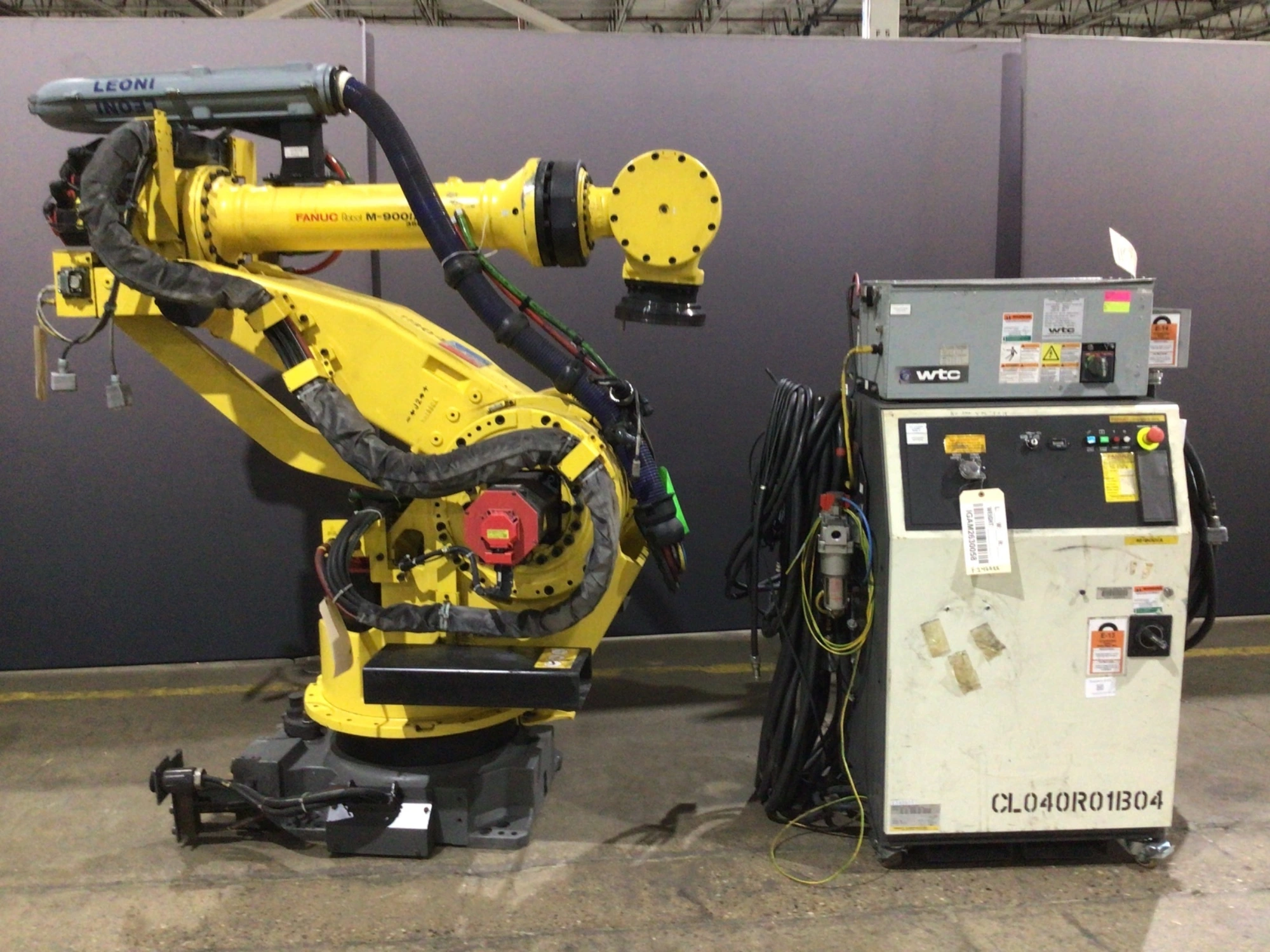

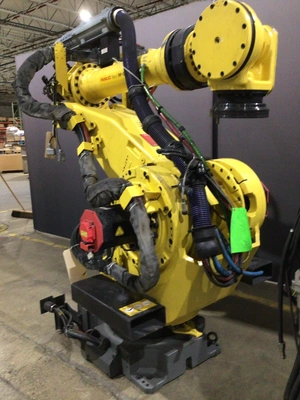

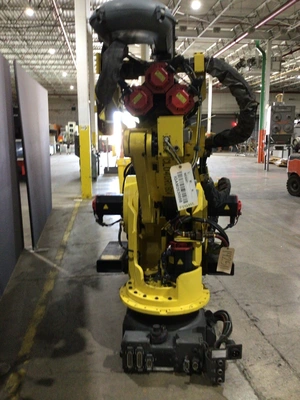

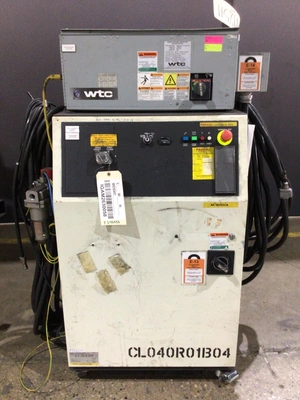

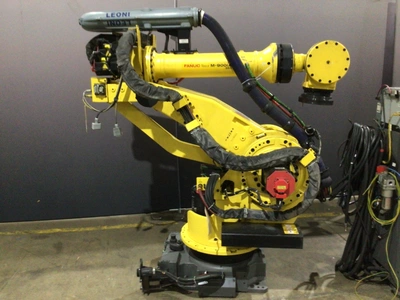

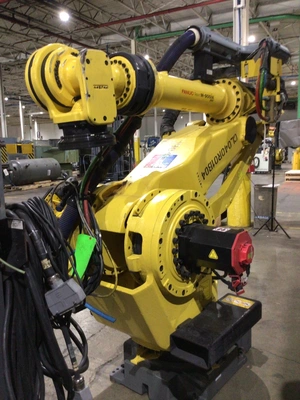

This listing is for a USED FANUC M-900iA/350 robot complete with an R-30iA controller, teach pendant, and WTC 6005 weld control. The M-900iA/350 is a 6-axis robotic platform used in resistance welding, material handling, and automated manufacturing applications. This package includes the robot, controller, teach pendant, LEONI dress package, and WTC weld control equipment shown.
Specs
Manufacturer: FANUC
Robot Model: M-900iA/350

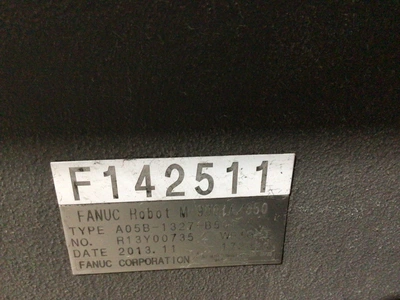

Robot Type No.: A05B-1327-B507
Robot Serial Number: R13Y00735
Equipment Type: 6-Axis Robot
Payload Capacity: 350 kg
Maximum Reach: 2655 mm
Repeatability: ±0.3 mm
Mechanical Weight: 2270 kg
Mounting Position: Floor

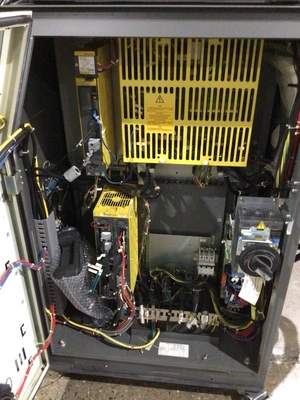

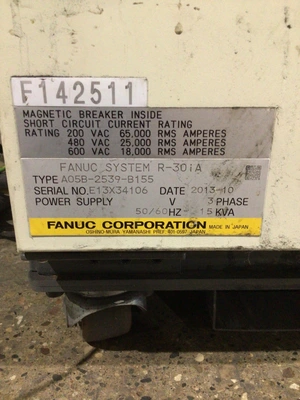

Controller Model: R-30iA
Controller Type No.: A05B-2539-B155
Controller Serial No.: E13X34106

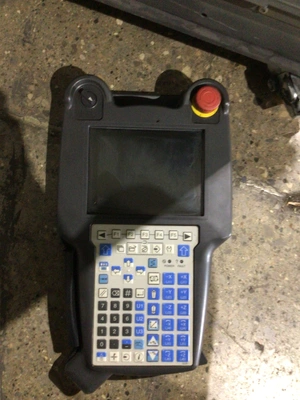

Teach Pendant: Included

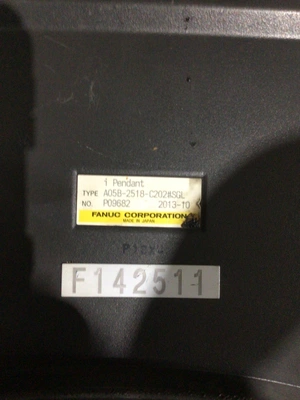

Pendant Type No.: A05B-2518-C202#SGL
Pendant Number: P09682

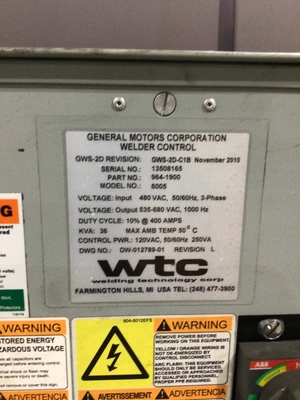

Weld Control Manufacturer: WTC
Weld Control Model: 6005
Weld Control P/N: 964-1900
Weld Control Serial No: 13508185
Robot Manufacture Date: 2013-11
Controller Date: 2013-10
Pendant Date: 2013-10
Weld Control Revision: GWS-2D-C1B
Weld Control Rev Date: November 2010
Dress Package: LEONI
EOAT: Not Present
Controller Frequency: 50/60 Hz
Controller Phase: 3 Phase
Controller Power: 15 kVA
SCCR @ 200 VAC: 65,000 RMS A
SCCR @ 480 VAC: 25,000 RMS A
SCCR @ 600 VAC: 18,000 RMS A
Welder Input Voltage: 480 VAC
Welder Input Frequency: 50/60 Hz
Welder Input Phase: 3 Phase
Welder Output Voltage: 535-680 VAC
Welder Output Frequency:1000 Hz
Welder Capacity: 36 kVA
Duty Cycle: 10% @ 400 A
Control Power: 120 VAC
Control Frequency: 50/60 Hz
Control Power Rating: 250 VA
Maximum Ambient Temp: 50°C
Welder Drawing No.: DW-012789-01
Welder Revision Letter: L
YOM: 2013
