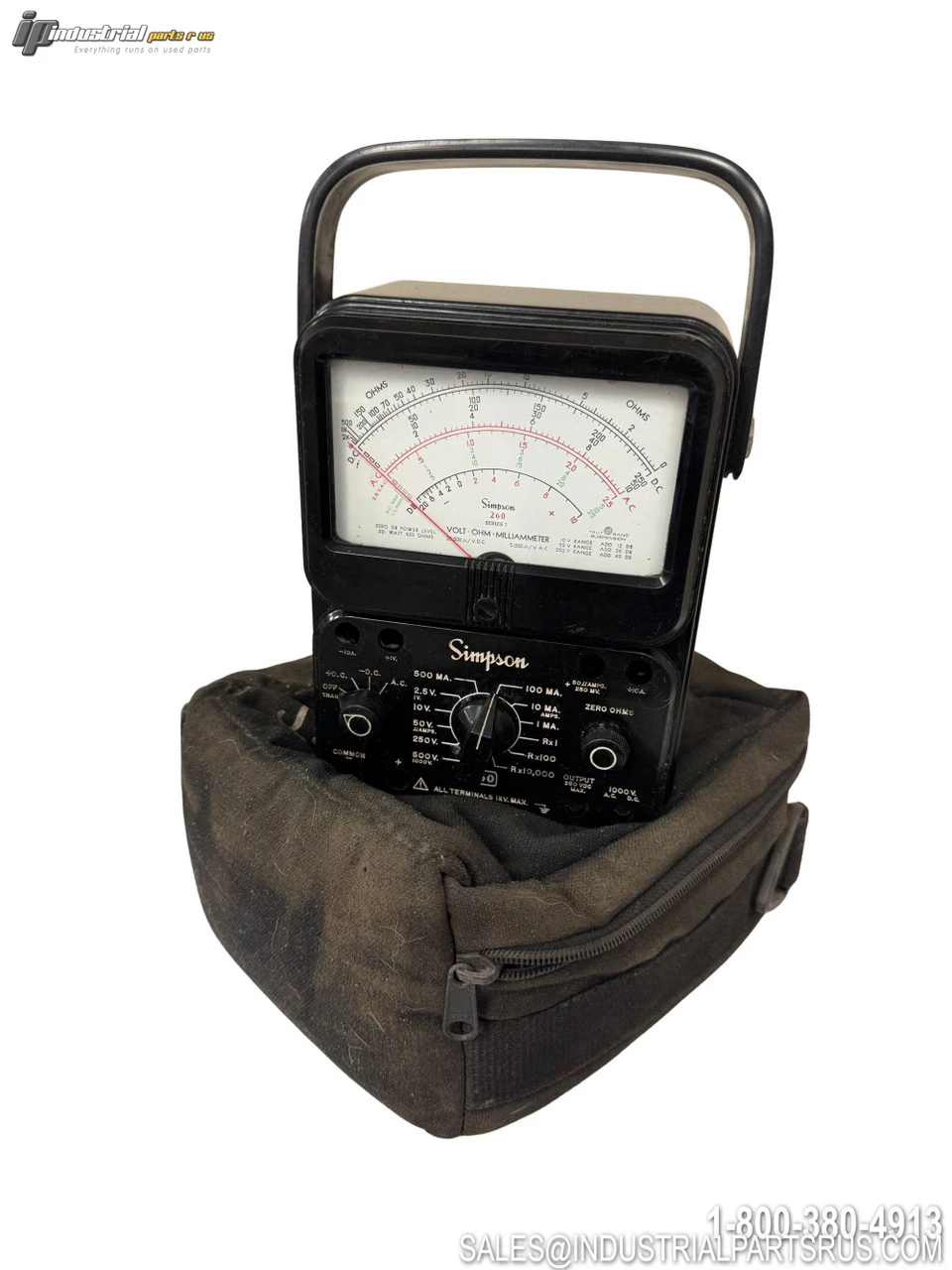

USED SIMPSON 260 SERIES 7

The Simpson 260 Series 7 is a rugged, accurate, portable Volt-Ohm-Milliammeter (VOM) designed for professional electrical measurement. It measures AC and DC voltage, DC current, resistance, decibels, and output (AC component) voltage across a wide range of ranges and functions. Introduced as a successor to the Series 6, the 260-7 features safety-enhanced reverse-banana recessed probe jacks, a 12-position function/range selector switch, and the Amp-Clamp scales, making it a versatile analog instrument for field, lab, and workshop use.
Specification
Value
Brand
Simpson Electric
Model / Part Number
260 Series 7
Instrument Type
Analog VOM (Volt-Ohm-Milliammeter)
DC Voltage Ranges
250mV, 1V, 2.5V, 10V, 50V, 250V, 500V, 1000V
DC Voltage Accuracy
2% of full scale
DC Voltage Sensitivity
20,000 Ω/V
AC Voltage Ranges
2.5V, 10V, 50V, 250V, 500V, 1000V
AC Voltage Accuracy
3% of full scale
AC Voltage Sensitivity
5,000 Ω/V
Rated Circuit-to-Ground Voltage
1000V AC or DC max
DC Current Ranges
50μA, 1mA, 10mA, 100mA, 500mA, 10A
DC Current Accuracy
1.5% full scale (50μA); 2.0% full scale (all other ranges)
DC Current Voltage Drop (Nominal)
250mV on 50μA & 1mA; 255mV on 10mA & 10A; 300mV on 100mA; 500mV on 500mA
Resistance Ranges
Rx1 (0–2KΩ), Rx100 (0–200KΩ), Rx10K (0–20MΩ)
Resistance Accuracy
2.5° of arc on Rx1; 2.0° of arc on other ranges
Decibel Ranges
5 ranges, -20 to +50 dB
dB Reference
0 dB = 1mW into 600Ω
Output Voltage Function
Measures AC component of mixed AC/DC signals; Output jack rated 350 VDC max
Function/Range Selector
12-position switch
AC/DC Function Switch
Off / AC / DC (includes Off/Transit position)
Probe Jacks
8 recessed Reverse-Banana type safety jacks
Amp-Clamp Scales
3 scales included
Case Size
5¼" x 7" x 3⅛"
Meter Cover Size
5⅛" x 3¾"
Weight
3 lbs
Batteries Required
NEDA 13F (1.5V D-cell) and NEDA 1604A (9V)
Battery/Fuse Access
Separate battery/fuse cover (no need to remove full back cover)
Handle
Adjust-A-View (supports meter in sloped position for viewing)
Additional Features
1000V to Ground rating engraved on face; Ohms zero adjustment control; rear safety tips sticker
We warranty all items for 30 days from date of purchase.
