USED HARDINGE HLV-H

Equipped With

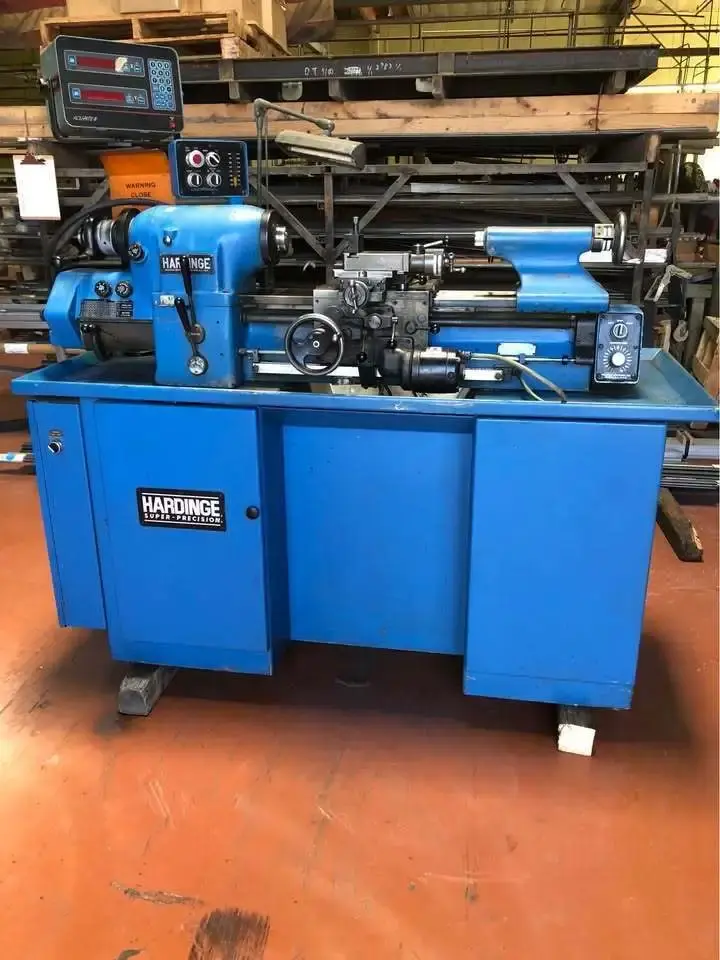

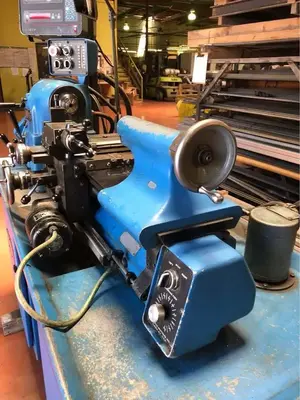

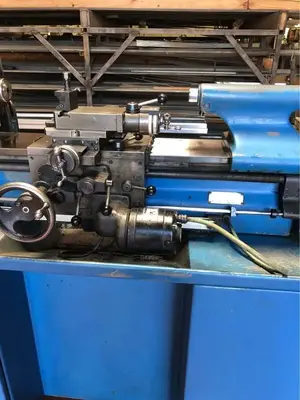

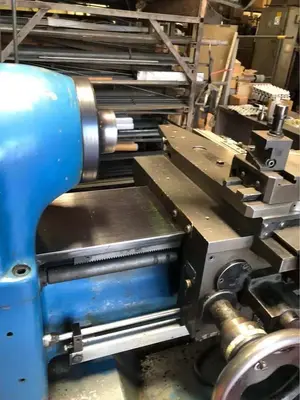

HARDINGE MODEL HLV-H TOOLROOM LATHE
Equipped With:

- Accurite III Digital Readout
- Power Rapid Traverse
- Coolant Pump
- Tailstock
- Toolpost
Swing Over Bed: 11" (279.4 mm)
Swing Over Carriage: 9" (228.6 mm)
Swing Over Cross Slide: 6" (152.4 mm)
Distance Between Centers: 18" (457 mm)
Hole Through Spindle: 1-1/4" (31.75 mm)
Spindle & Collet Capacity
Spindle Nose Type: Hardinge Tapered Nose
Spindle Runout Accuracy: 25 millionths of an inch (0.000025” / 0.0006 mm)
Maximum Spindle Speed: 3,000 RPM (Variable from 125 to 3,000 RPM)
Standard Collet Capacity: 5C collets (1-1/16" round, 7/8" hex)
Step Chuck Capacity: 1-1/16" to 6"Jaw Chuck Capacity: Up to 5
