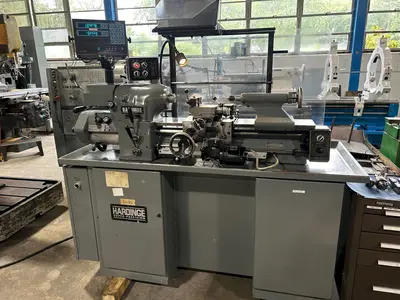

USED 1997 HARDINGE HLV H

Equipped With
HARDINGE MODEL HLV-EM TOOLROOM MILL
New 1997
SPECIFICATIONS:
SPINDLE CONSTRUCTION ............. HARDINGE SUPER-PRECISION
                                   PRELOADED BALL BEARING
SPINDLE NOSE ..................... HARDINGE TAPERED
INF. VARIABLE SPINDLE SPEEDS ..... 125 TO 3000 RPM
HOLE THROUGH SPINDLE ............. 1-1/4"
SPINDLE CAPACITY:
    w/ROUND 5C COLLETS ........... 1-1/6
    w/HEXAGON 5C COLLETS ......... 7/8"
    w/SQUARE 5C COLLETS .......... 3/4"
    w/STEP CHUCKS ................ 1-1/16" TO 6"
    w/JAW CHUCKS ................. 5"
    w/EXPANDING COLLETS .......... 3"
SWING OVER BED ................... 11"
SWING OVER CARRIAGE .............. 9"
SWING OVER CROSS SLIDE ........... 6"
DISTANCE BETWEEN CENTERS ......... 18"
COMPOUND SLIDE TRAVEL ............ 3"
CARRIAGE POWER FEED RANGE ........ 5/16" TO 7" IPM
CROSS SLIDE POWER FEED RANGE ..... 3/16" TO 4" IPM

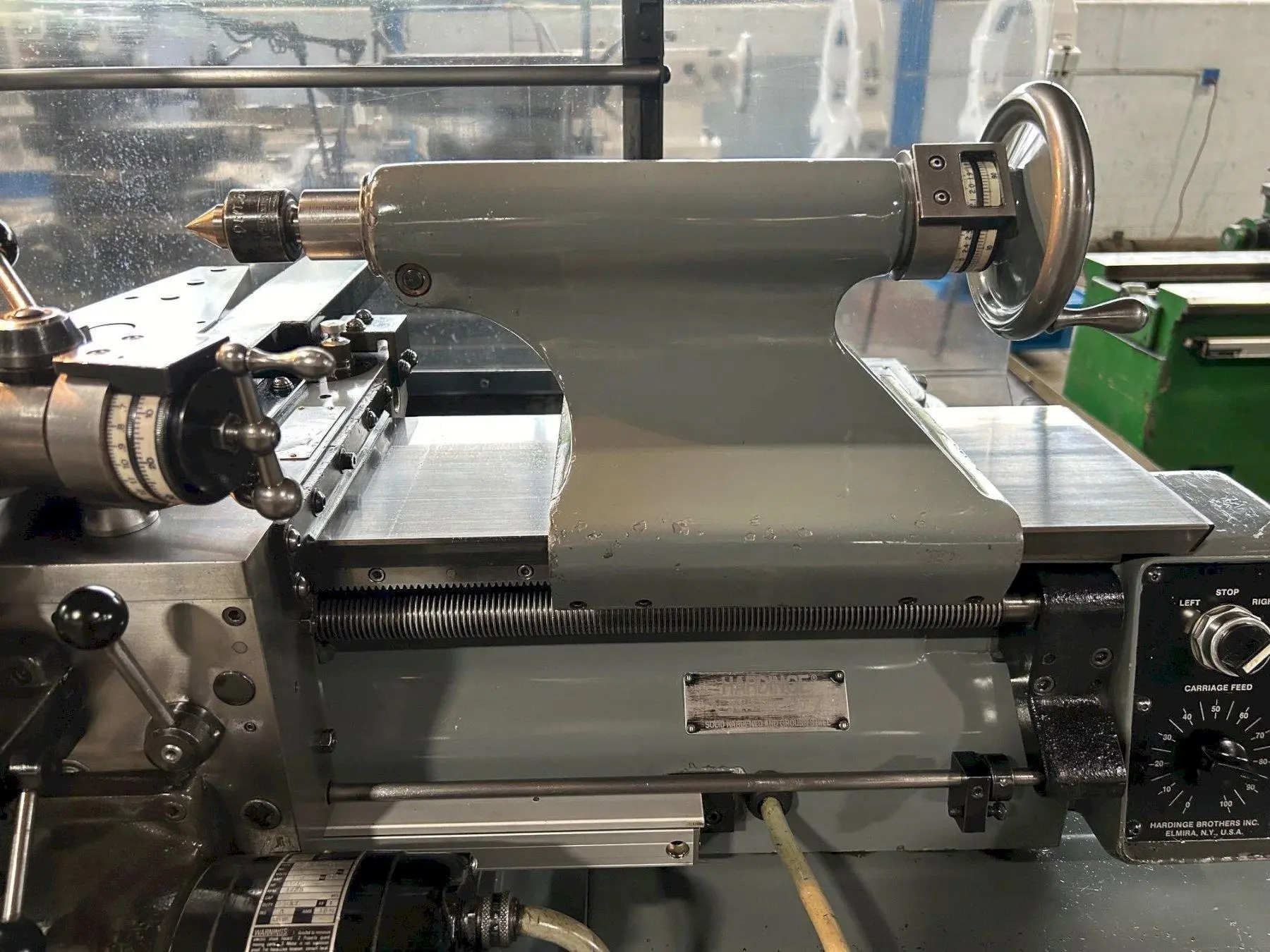

TAILSTOCK SPINDLE DIAMETER ....... 1-3/8"
TAILSTOCK SPINDLE TRAVEL ......... 3-3/4"
TAILSTOCK SPINDLE TAPER .......... #2 MT
THREADING RANGE .................. 11" TO 108" TPI
INCH THREADING RANGE ............. 11 - 108 T.P.I.
METRIC THREADING RANGE ........... 0.275 - 2.7 MM
APPROX. DIMENSIONS ... LxWxH ..... 68" x 30" x 60"
APPROX. WEIGHT ................... 1,700 LBS.

EQUIPPED WITH:

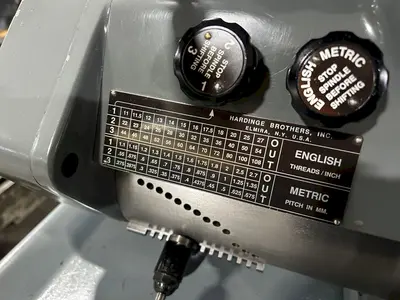

- INCH/METRIC THREADING CAPABILITY

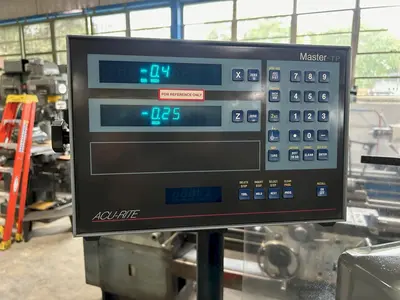

- ACU-RITE TWO AXIS DIGITAL READOUT
- INCH/METRIC DUAL DIALS ON TAILSTOCK & COMPOUND
- HARDINGE TAPER TURNING ATTACHMENT
- HARDINGE LEVER TYPE 5C-COLLET CLOSER
- HARDINGE MODEL: L19 QUICK CHANGE TOOLPOST WITH HOLDERS
- JACOBS DRILL CHUCK FOR TAILSTOCK
- LIVE CENTER FOR TAILSTOCK

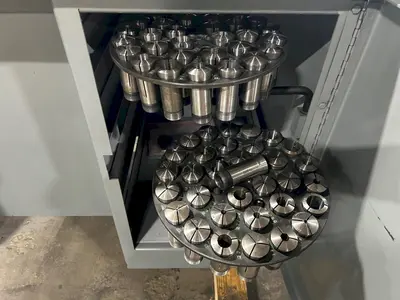

- ASSORTMENT OF 5C COLLETS
- COOLANT SYSTEM
- 1.5 HORSE POWER TWO SPEED MOTOR

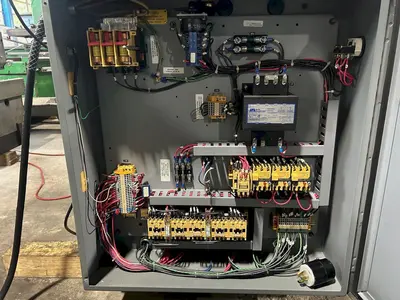

- MACHINE HAS A FACTORY-INSTALLED MULTI-TAP TRANSFORMER ALLOWING THE FOLLOWING VOLTAGE OPTIONS: 230/460 VOLTS
