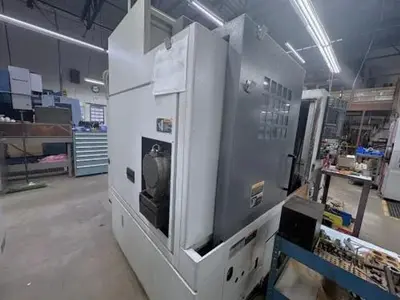

USED 2006 MORI SEIKI NL 2500Y/700

Collet Chuck
Tool Presetter
Chip Conveyor
Tailstock
Complete Coolant System with Tank & Pump
RS 232 Port Interface
All Available Manuals
All Available Tooling

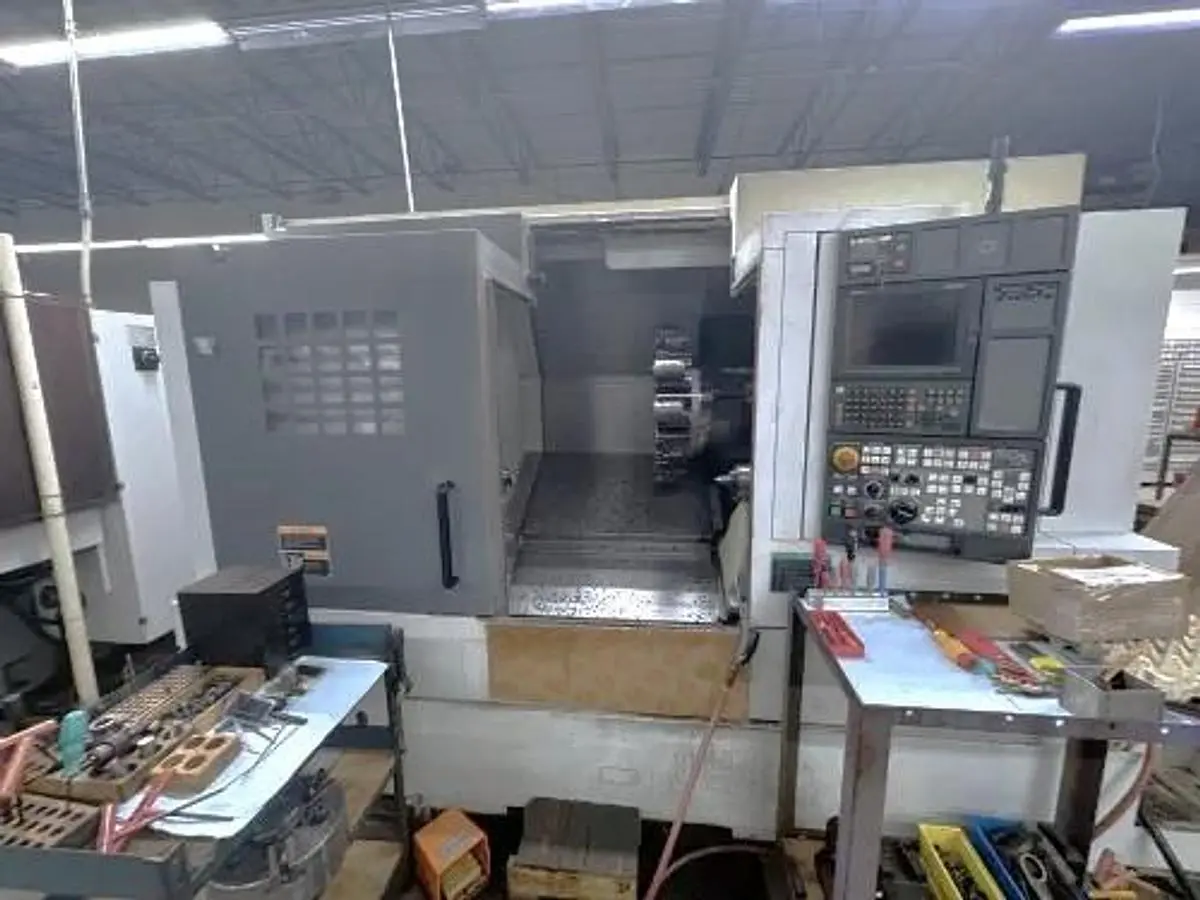

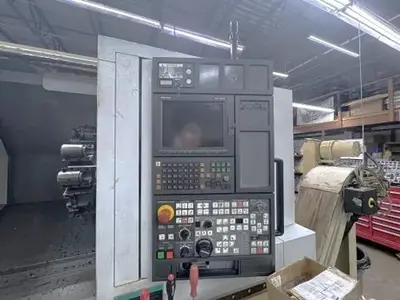

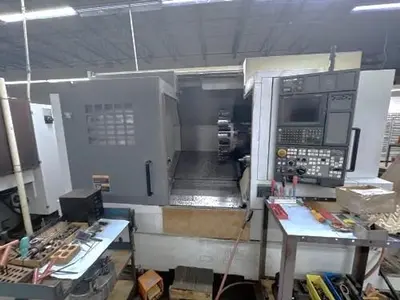

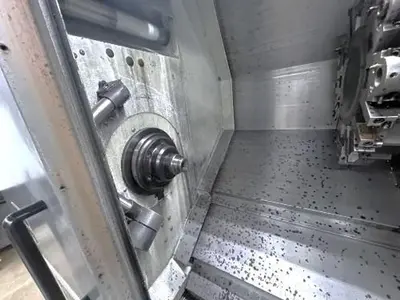

The 2006 Mori Seiki NL 2500/700 is a robust CNC lathe ideal for precision machining tasks. Equipped with a Mori/Fanuc MSX-850E control system, it offers reliability alongside advanced operational capabilities. The lathe features a collet chuck with a generous 3" bar capacity, suitable for handling diverse machining operations. Its maximum swing over bed and cross slide reach 36.4" and 29.7" respectively, while accommodating a maximum turning diameter of 14" and a turning length of 27.7", making it versatile for a variety of cutting requirements.

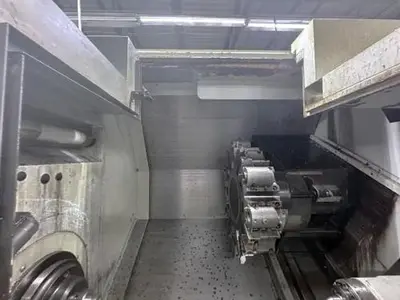

Powered by a 25 HP spindle motor, this machine reaches spindle speeds up to 4,000 RPM and enables efficient material processing. With 12 tool positions on its turret and rapid traverse rates of 1181 IPM for both X and Z axes, it supports swift transitions and high-speed operations. The X-axis travel of 10.2" and Z-axis travel of 31.3" provide adequate movement range for various machining tasks.

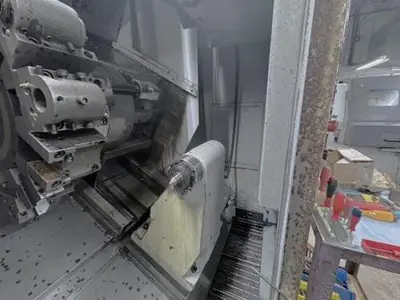

Additional features include a chip conveyor and a tailstock with 23.9" travel and MT #5 taper, enhancing its capacity for longer workpieces. The machine's dimensions are 122" x 80" x 84", with a weight of 12,760 lbs, ensuring stable operation. This used CNC lathe remains a reliable choice for producers looking to maintain high productivity in their manufacturing processes.
