USED HAAS VF-3SSYT
Specs

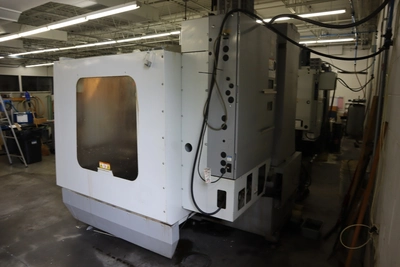

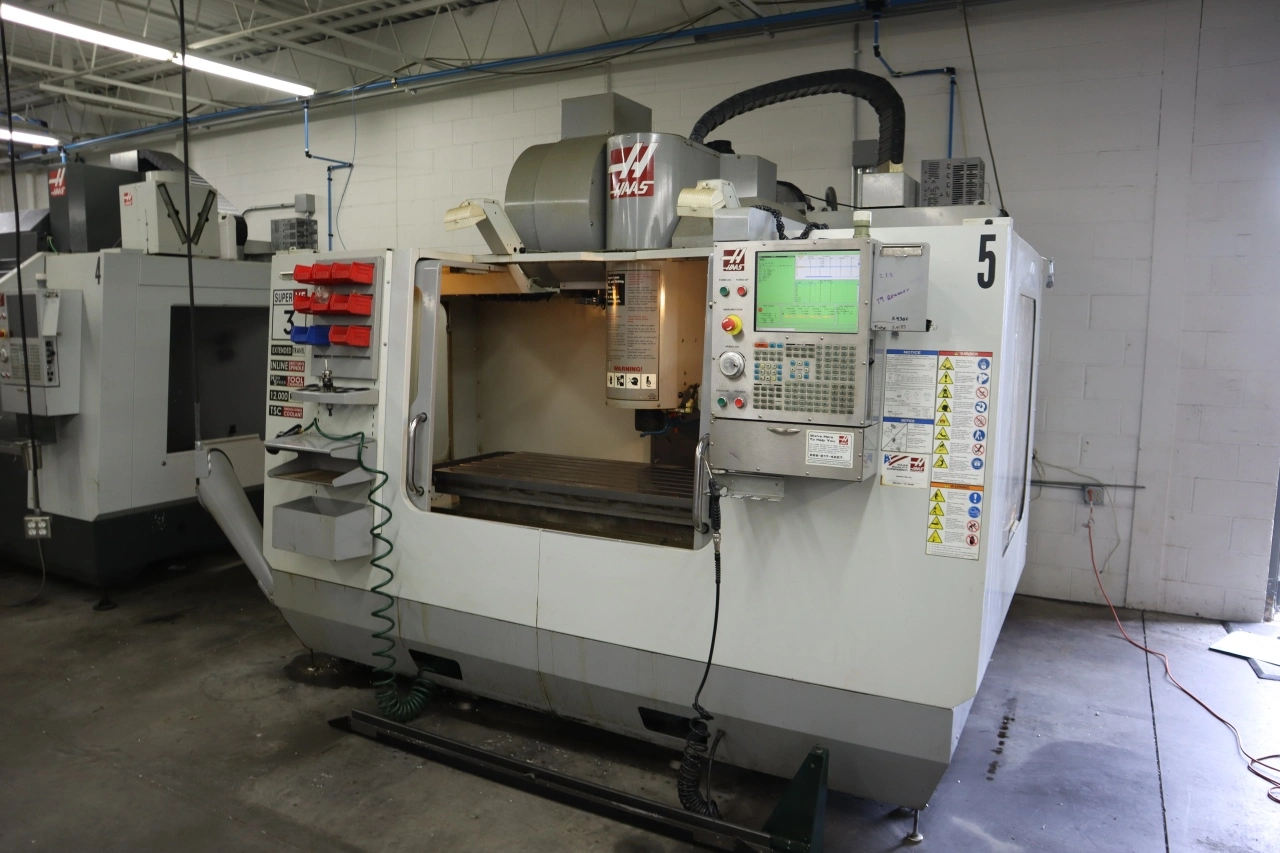

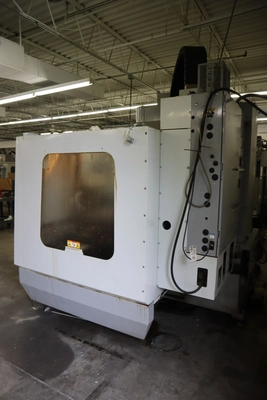

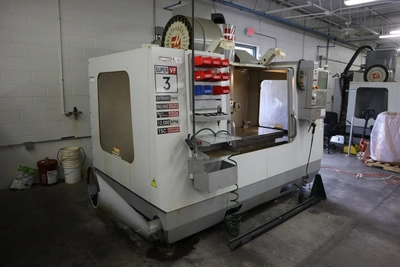

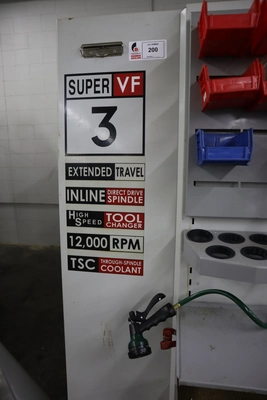

Lot 200: Haas VF-3SSYT CNC Vertical Machining Center, 40"x26"X25", 24 ATC, 12K RPM, Thru Spindle Coolant, Probing, 4th Axis Drive

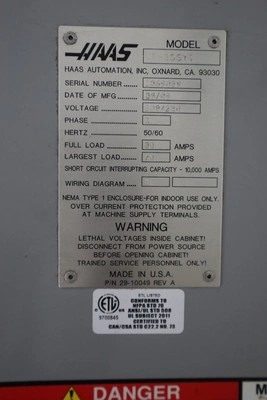

Electrics:
208/230 Volt, 3 Phase
Main Unit Approx Weight: 14000.00 lbs
Main Unit Dimensions (in inches): Length: 142.00" Width: 96.00" Height: 104.00"
Components:
Main Machine Shipping Dimensions with Conveyor: Length: 169.00" Width: 92.00" Height: 94.00"

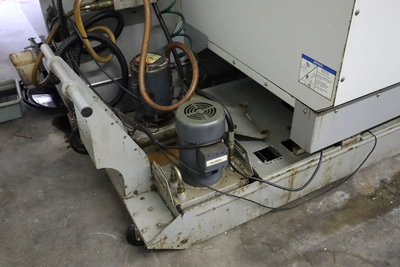

Coolant System: Length: 80.00" Width: 30.00" Height: 27.00"
Midaco Pallet System: Length: 84.00" Width: 54.00" Height: 72.00"
Specs:

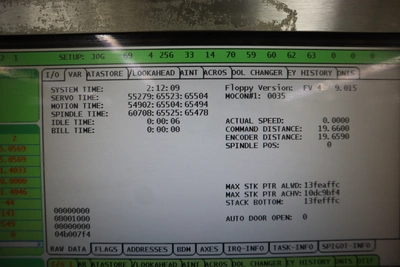

Machine Control: Haas CNC Control with Coldfire Processor

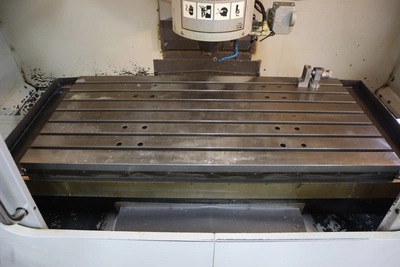

Table Size: 54" x 25"
Machine Travels (X/Y/Z): 40" x 26" x 25"
Spindle To Table Distance: 4" - 29"
Table Capacity: 1750 lbs
Spindle Taper: CT 40 Spindle Taper
Spindle Speeds: 12,000 RPM Max
Transmission: Inline Direct Drive
Rapid Traverse Rate (X/Y/Z): 1400 ipm.
Maximum Cutting Feed Rate: 833 ipm.

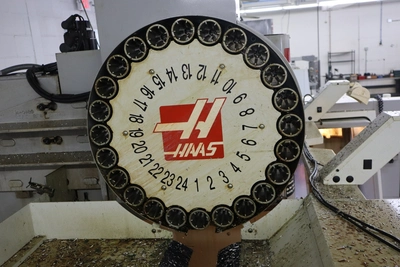

Tool Changer Style: Side Mount, Twin Arm
Tool Changer Capacity: 24 + 1 Stations
Tool Change Time: 1.8 Tool to Tool
Max Tool weight: 12 Lbs.
Spindle Drive: 30 Hp Inline Direct Drive
Seller Company: Columbia Precision Machine
Seller Contact: Machinesused Auction Phone: (763) 745-1166
Location Contact: Machinesused Auction Phone: (764) 745-1166
Inspection Date & Time: Friday, September 25, 2026, 9AM to 4PM or By Appointment
Dock Door: 118 "X x 107"H Ground Door, 84"W x 108"H Truck Level Dock Door
Loading Dock: Gound and Truck Level Doors
Removal Dates and Times: This item must be removed between Monday, October 5, 2026 and Thursday, October 8, 2026
Equipped With

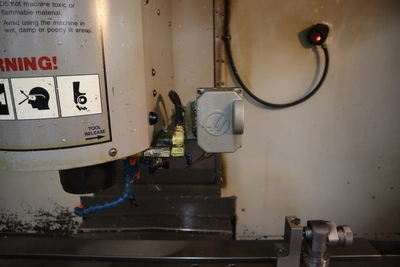

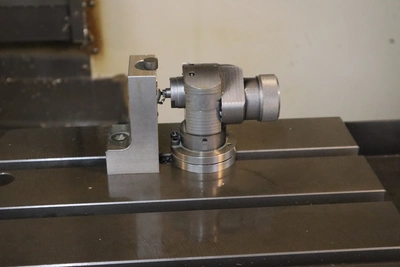

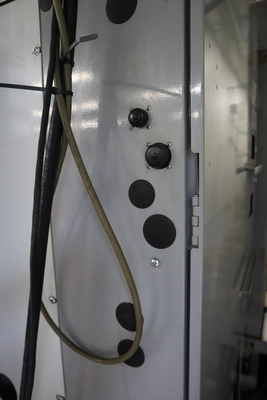

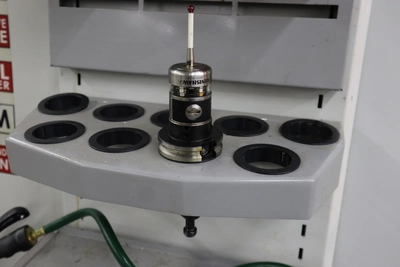

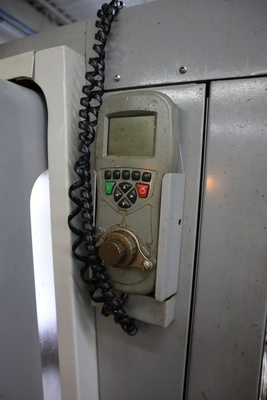

Haas CNC Control with Coldfire 2 Processor, 12K Max RPM, CT 40 Spindle Taper, 24+1 Twin Arm Automatic Tool Changer, 300 PSI Thru-Spindle Coolant, Haas Probing System with Tool and Parts Probes, 4th-Axis Brushless Drive and Connectors, Remote Jog Handwheel, Programmable Coolant Nozzle, Chip Auger, High Speed Machining, Macros, Intuitive PRogramming, Rigid Tapping, Spindle Orientation, Coordinate Rotstion and Scaling, Coolant Pump and Tank - Haas Shipping Bracket.
