USED 2019 ALFA LAVAL STERITHERM PHE 27,000 KG/HR

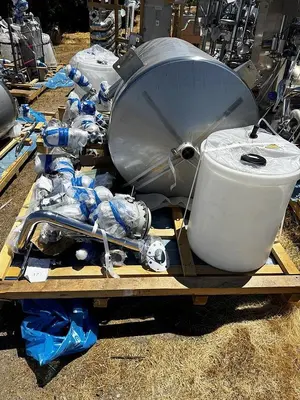

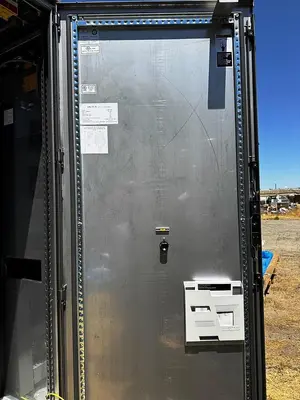

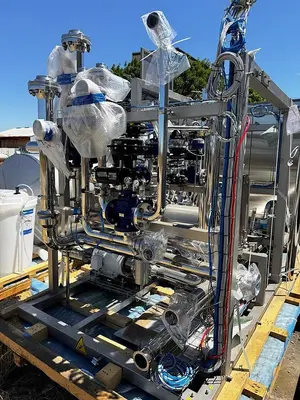

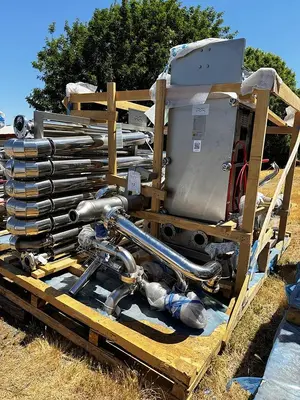

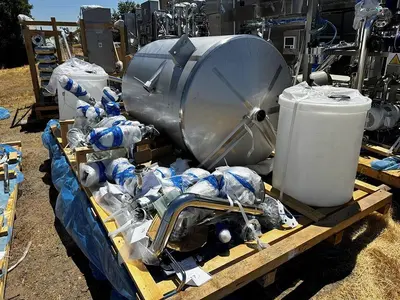

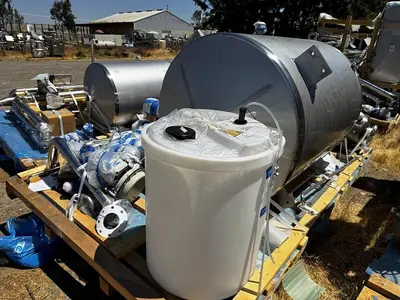

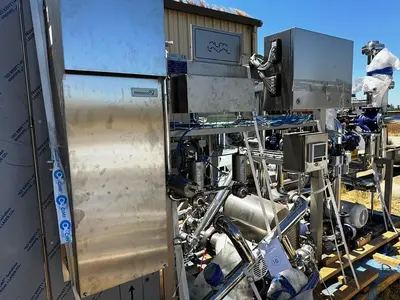

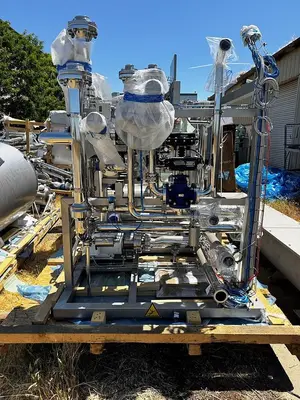

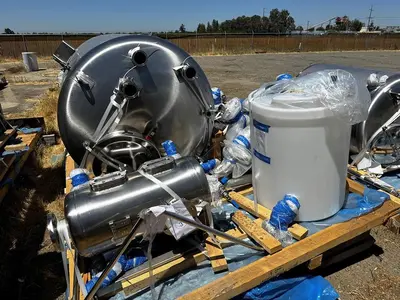

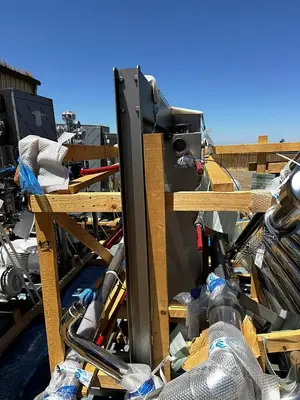

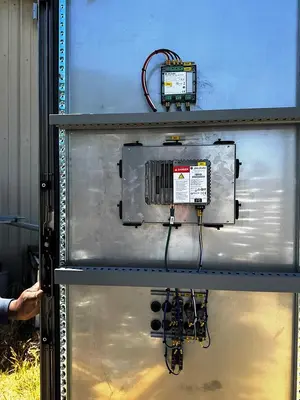

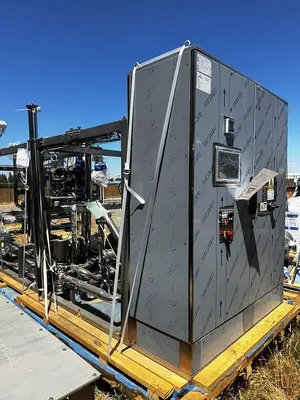

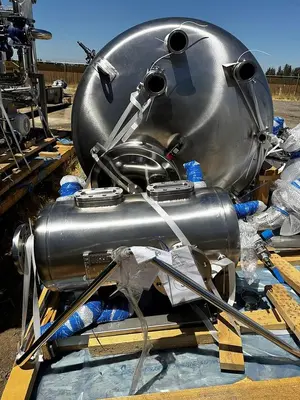

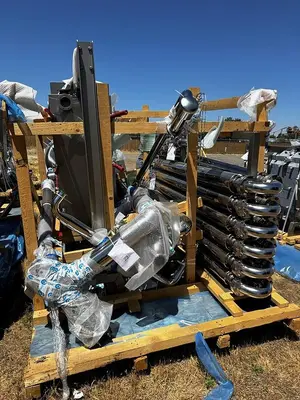

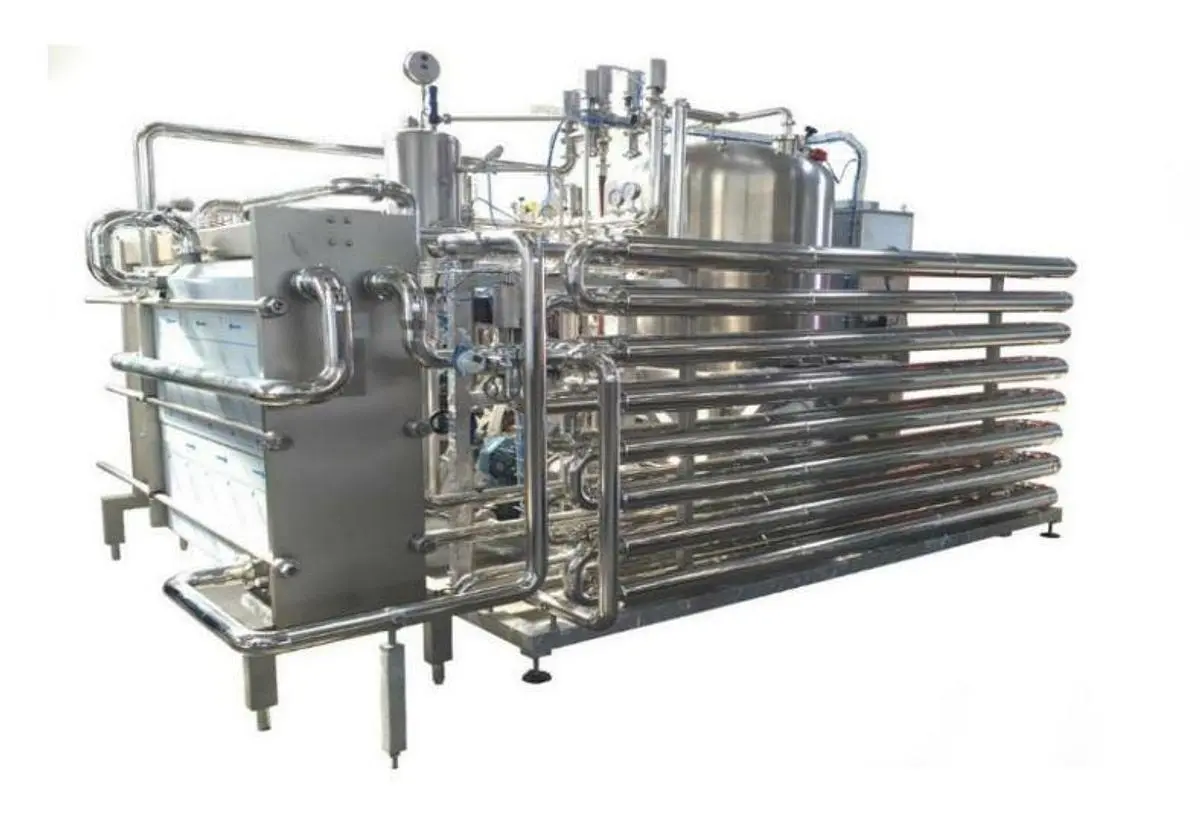

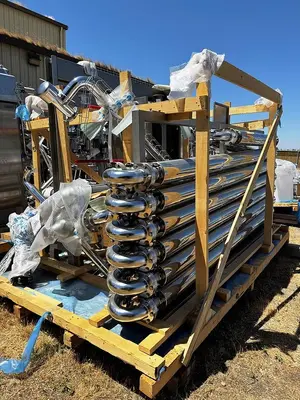

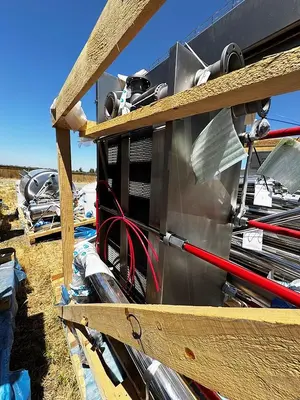

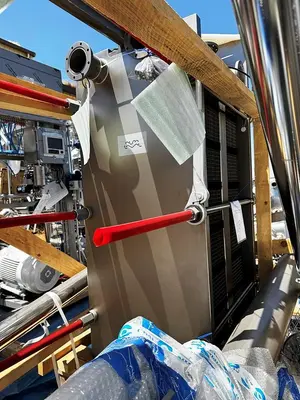

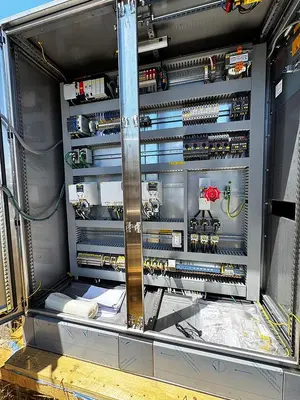

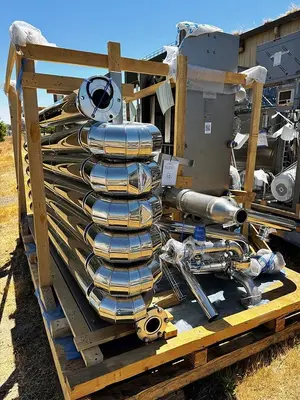

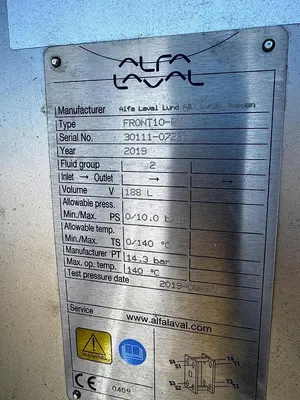

Unused Alfa Laval Steritherm PHE Media Sterilizer System rated for 27,000 kg/h of liquid media (approx. 119 GPM). Designed for aseptic thermal treatment with a maximum sterilization temperature of 284°F (140°C) and pressure rating of 140 psi (10 bar). System includes plate heat exchanger, tube-in-tube cooler, 3-1/4" I.D. product holding tube, balance tank, control panel, and instrumentation. Features 1-1/2" tri-clamp sanitary utility connections, Alfa Laval sanitary pumps, and Siemens/Allen Bradley PLC control system with remote access. System includes Alfa Laval fabricated modules and full control package. Designed for 27,000 kg/h aseptic thermal processing.  Test pressure 14.3 bar / 207 psi.

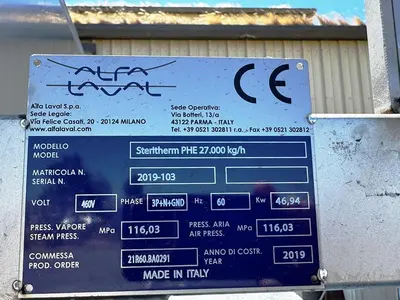

Stock Number: 5991414
Manufacturer: Alfa Laval
Model: Steritherm PHE 27,000 kg/hr
Year: 2019
Serial Number: 2019-103
Flow Capacity: 27,000 kg/h (approx. 119 GPM for water-based media)
Design Pressure: 140 psi (10 bar)
Max Temperature: 284°F (140°C)
Connections: 1-1/2" Tri-Clamp
Power Requirements: 460V, 3-Phase, 60Hz
Materials of Construction: 316L Stainless Steel
Basis: FOB
