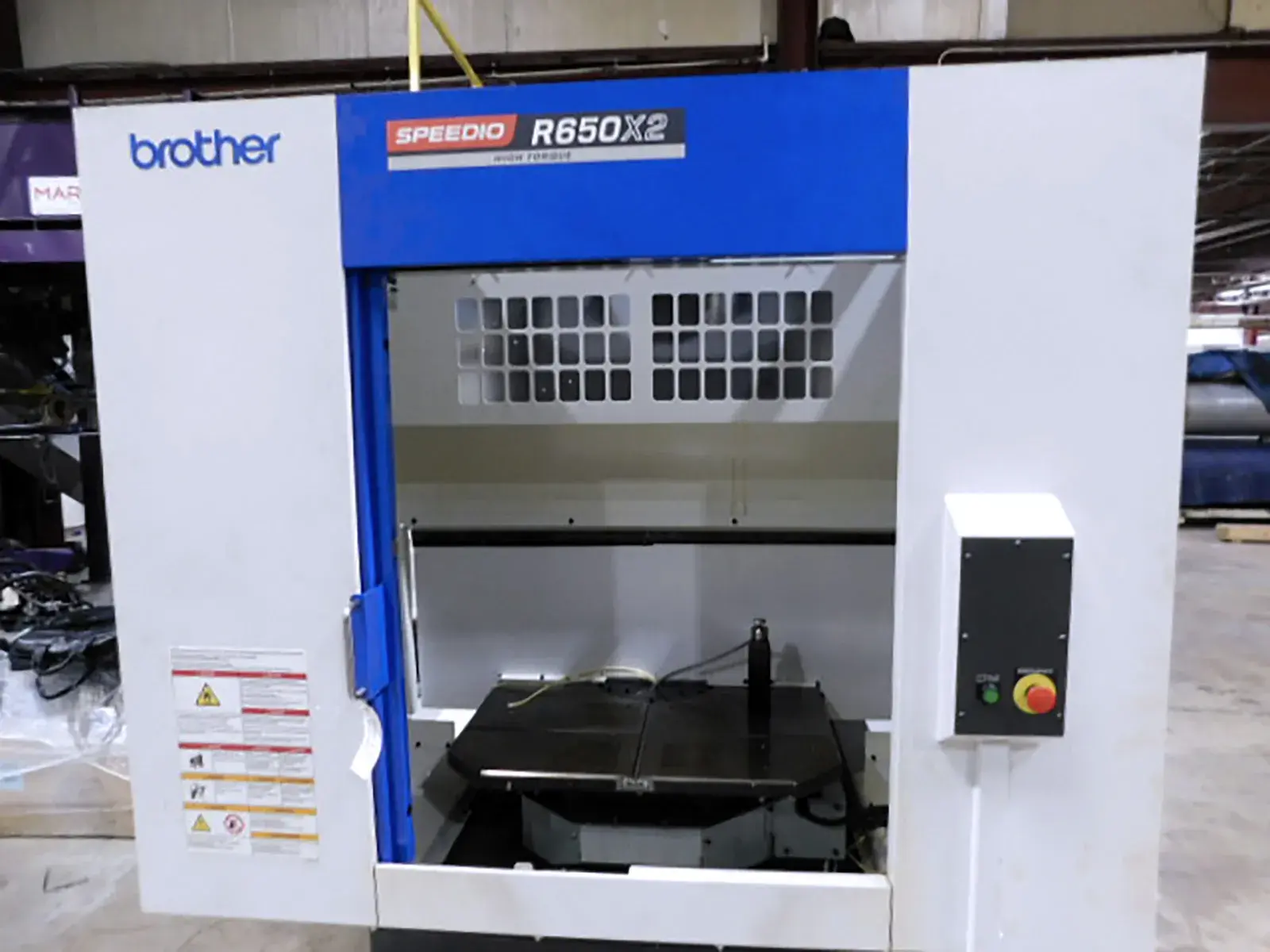

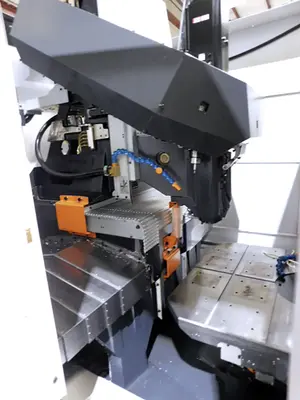

USED 2022 Brother Speedio R650x2
Overview
Boost production with the (2022) Brother Speedio R650x2 VMC, featuring C00 (WX) control with PLC for ultra-fast milling, drilling, and tapping. Ideal for high-volume automotive, electronics, and medical manufacturing, it delivers precise, efficient machining of small to medium-sized parts.
Specs
Pallet Size: 31.5” x 15.7”
Pallet indexing time: 3.4 seconds
Travels: 25.6” x 15.7” x 12”
Rapid travel: 1,969 ipm in X, Y, & Z
Cutting Feed Rates: 0.04-1,181 ipm
Distance from table top to nose: 9.8” – 21.8”
Max. jig height: 16.5”
Spindle RPM: 10,000
Max. tapping RPM: 6,000
Spindle Taper: Cat 30 Big Plus
Spindle HP: 17/11.7 HP High Torque
ATC Capacity: 22
Tool to Tool: 0.8 sec
Chip to chip: 1.6 sec
Equipped With
Hours: 10 (Demo Machine)
CNC – C00 (WX) control with PLC

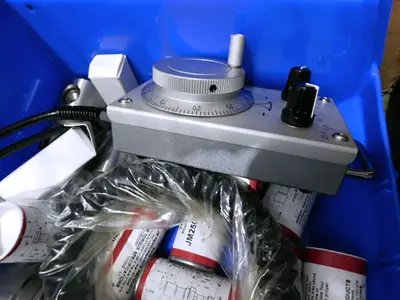

Manual Pulse Generator
3-stage light
Work light
Spindle speed override
Shower gun
Coolant system w/200L tank
CTS prepped
Top cover
Door interlock
Blum ZX Speed wired w/150mm riser

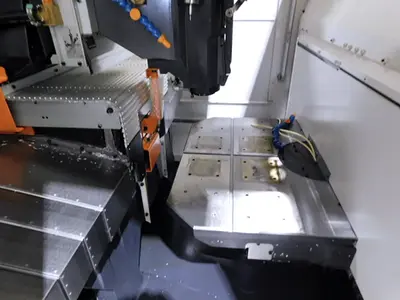

Dual pallets - rotary type
16) Cat 30 Big Plus tool holders - 6) ER32 - 10) Straight shank from 5/16” to 1”
Original Shipping brackets installed
