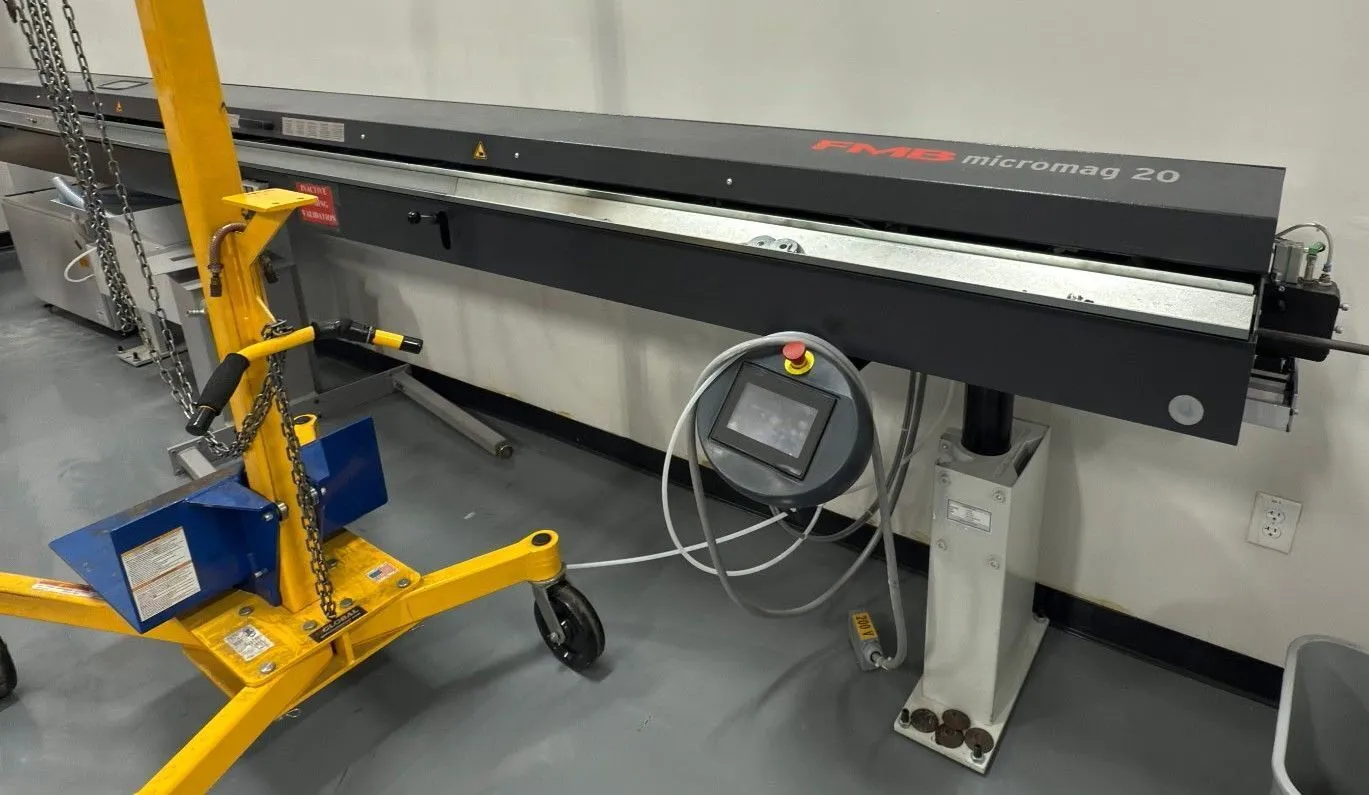

USED 2020 FMB Micromag 20

Micromag 20 Bar diameter capacity: 0.8mm to 22mm (0.031” to 0.866”)
Automatic loading magazine – 9 linear inches of rack capacity
Walking beam separation system – drops out of the way when running larger diameter bars (21-bar capacity)
Polyurethane guide channel system – noise & vibration dampening
Ultra-quick guide channel and pusher changeovers – 10-min full set changeover, 3 min within same channel set
Hydrodynamic support via high-volume oil flow into channels
Separate floor-mounted electric cabinet isolates electronics from vibration

(1) Universal telescoping front nose and (1) nylon nose I.D. liner specific to pusher
(1) O.D. bar stock collet to be chosen by customer (specific collet needed for each stock diameter)
Swiss headstock synchronization device
Automatic remnant retraction, self-centering gripper
Custom lathe cable and interface plugs
Polyurethane bushing blocks (2 pieces)
Spindle tube nose assembly – available in 5mm, 7mm, 10mm

The FMB Micromag 20 is an automatic magazine bar feeder built for small-diameter Swiss-type sliding headstock lathes, handling bar sizes from 0.8mm to 23mm.

It features fast changeovers, single-stage feeding, and hydrodynamic support.

Capacity and Size Specs:

Bar Diameter: 0.8 mm to 23 mm
Bar Length: Options for 1,600 mm, 3,200 mm, or 4,200 mm
Loading/Charging Capacity: Up to 235 mm bundle/rack capacity
Max Remnant (Remaining Piece): Up to 320 mm

Performance and Power

Charging Time: ~15 seconds
Feed and Return Speed: 0 to 750 mm/s
Power Supply: 1.5 kW (3-phase, 190–480V)Pneumatic Requirement: 6 bar compressed air
Machine Weight: Approximately 450 kg to 800 kg (depending on length configuration)

Key Features

Switchable pilgrim step separation system for tiny stock (0.8 mm to 4 mm)
Torsion-resistant aluminum machine body carrier
Mobile 8.4-inch touch control pane
