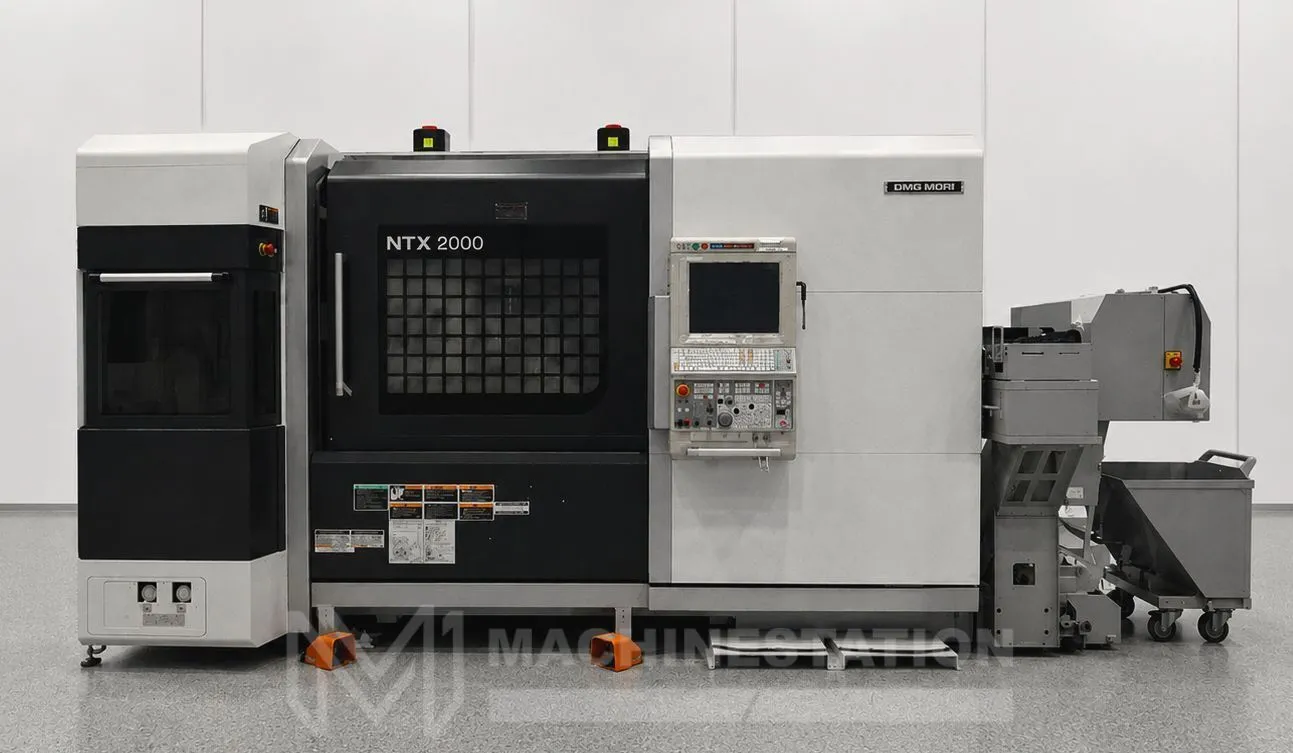

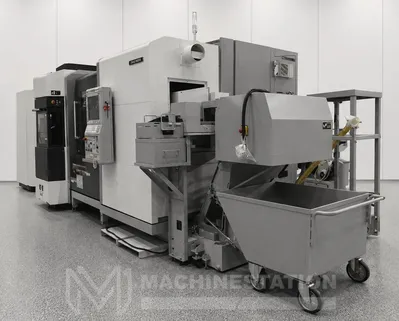

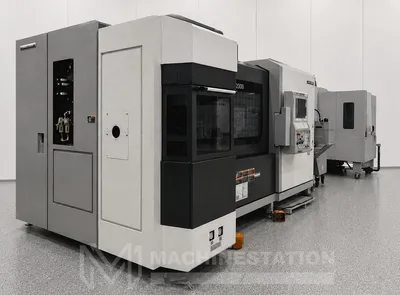

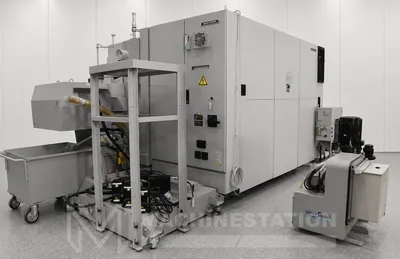

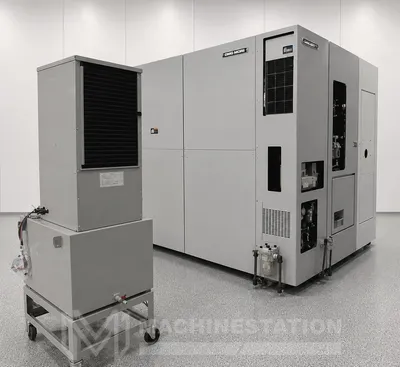

USED 2014 DMG MORI SEIKI NTX2000/1500S
Overview
2014 DMG Mori Seiki NTX2000/1500S Multi-Axis CNC Lathe featuring 7-axis, 12,000 RPM spindle, and 76-tool changer. Includes dual 8" chucks, high-pressure coolant, and chip conveyor. Ideal for high-precision tasks requiring Y-axis and full C-axis on both spindles.
Specs
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:
FANUC 31i-B5 CNC Control
Coolant Tank
Capacity:
Maximum Workpiece Swing: 25.9″
Maximum Turning Diameter: 24.0″
Maximum Turning Length: 60.6″
Maximum Bar Capacity: 2.5″
Travels:
X-Axis: 19.5″
Y-Axis: ±4.9″
Z-Axis: 61.4″
B-Axis: ±120°
C-Axis Indexing: 0.0001°
Main Spindle:
Spindle Nose: A2-6
Maximum Spindle Speed: 5,000 RPM
Spindle Bore: 2.9″
Sub Spindle:
Spindle Nose: A2-6
Maximum Spindle Speed: 5,000 RPM
Spindle Bore: 2.9″
Milling / Tool Spindle:
Maximum Milling Spindle Speed: 12,000 RPM
B-Axis Swivel: ±120°
B-Axis Indexing: 0.0001°
Tool Interface: Capto C6 standard
Automatic Tool Changer Capacity: 76 Tools
Spindle Power: 25 HP
Tool-to-Tool Change Time: 1.25 Seconds
General:
Power Source: AC 200 V Three Phase 60 Hz
Power Requirement: 72.1 kVA
Overall Dimensions: 160.6″ × 117.3″ × 103.2″ High Approx.
Weight: 31,944 lbs Approx.
Equipped With
12,000 RPM Pendulum Milling Head
76-Station Tool Magazine
8″ 3-Jaw Kitagawa B208 Chuck on Main Spindle
8″ 3-Jaw Kitagawa B208 Chuck on Second Spindle
Full C-Axis on Main & Sub Spindle
Sub Spindle
Y-Axis Capability
10 Station Turret
Tool Presetter
Spindle Chiller Unit
High Pressure Coolant
Chip Conveyor
