Used

USED GRIZZLY A1SA

Ontario, Canada

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

60Listings|28Followers
Overview
Vertical Mills

Machine is in Excellent Condition & Ready For Inspection.

Specs
Table-W
8"
203.2 mm
Table-L
30"
762 mm
Travel-Long
18"
457.2 mm
Travel-Cross
7.7"
195.58 mm
Power
1.5 hp
1.1 kW
RPM
3,200 RPM
3,200 RPM
Taper
R8
R8
Dimensions
50”L x 45”W x 68”H
50”L x 45”W x 68”H
Weight
1,000 Lbs
1,000 Lbs

Specifications:

Model - A1SA
Year - 02/1996
Table Size - 8” x 30”
Table Travel Left/Right - 18”
Table Travel Front/Back - 7.7”
Table Travel Up/Down - 17.7”
Quill Travel - 4”
Spindle Taper - R8

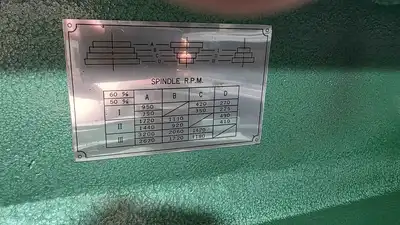

Spindle Speeds - 225 to 3200 RPM

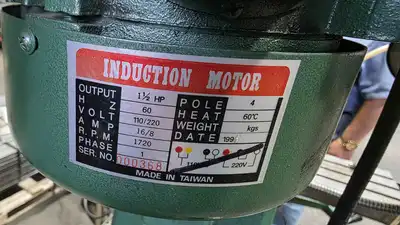

Spindle Motor - 1.5 HP
Electrics - 110V/220V/1PH/60HZ
Made In - Taiwan
Approximate Weight - 1,000 LBS
Approximate Overall Dimension - 50”L x 45”W x 68”H

Equipped With:

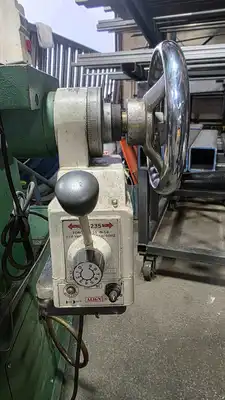

Align Power Rapid Cross Feed
One Shot Lubrication

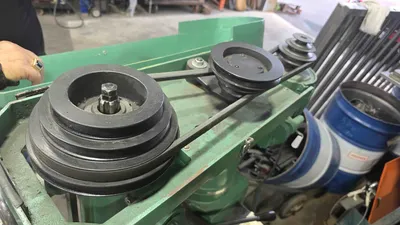

Belt Driven

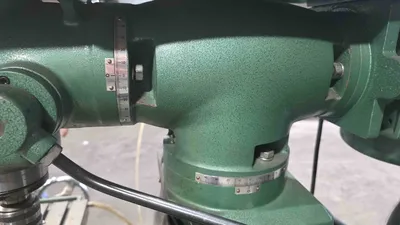

Swivel Head
Coolant System
Work Light
