New | Build-to-Order

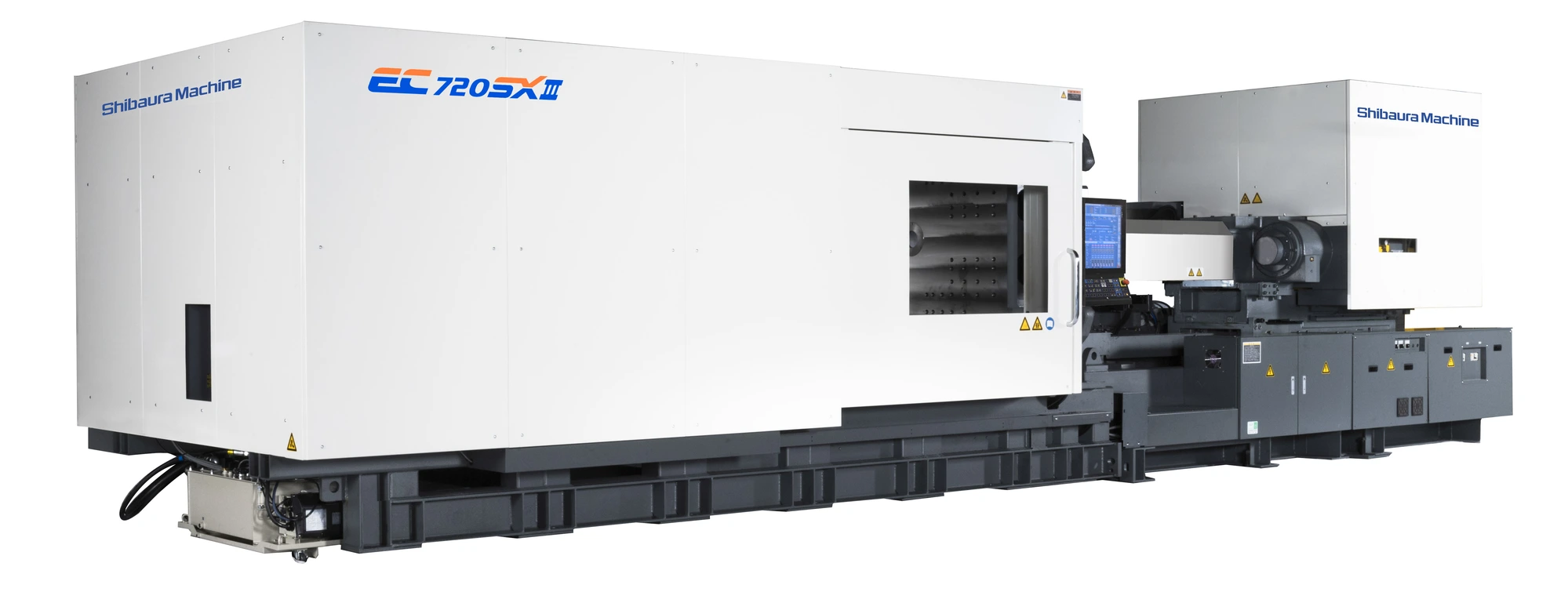

NEW Shibaura Machine EC720SXIIIV70-i78Y

Canada
485Listings|84Followers
Overview
Injection Molding Machines

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

Specs
Type
All Electric
All Electric
Clamping Force Tonnage
650 T
589.671 t
Barrel Code
Y
Y
Shot Volume (PS)
114.9 oz
3,257.4 g
Shot Volume (PE)
91.2 oz
2,585.5 g
Screw Diameter
3.74"
94.996 mm
Maximum Injection Pressure
31800 psi
Maximum Holding Pressure
26500 psi
Screw Speed STD
127 rpm
127 RPM
Screw Torque STD
5500
5500
Plasticizing Capacity (PS) STD
3.5 oz
98.4 g
Nozzle Touch Force
6.6 T
5.987 t
Tie Bar Distance H
41.7"
1,059.2 mm
Tie Bar Distance V
37.8"
960.12 mm
Platen Dimension H
59.1"
1,501.1 mm
Platen Dimension V
55.1"
1,399.5 mm
Clamp Stroke
39.4"
1,000.8 mm
Maximum Daylight
80.7"
2,049.8 mm
Mold Height Min
17.7"
449.58 mm
Mold Height Max
41.3"
1,049 mm
Ejector Force
19.8 T
17.962 t
Ejector Stroke
7.9"
200.66 mm
Main Breaker Electric Capacity
350
350
Heater Capacity
57.2 kw
57.2 kW
Control
CNC
CNC
Dimensions
33.5 x 8.2 x 8.7 Feet
33.5 x 8.2 x 8.7 Feet
Weight
45.7 US Ton
45.7 US Ton
