NEW RITTER R2063

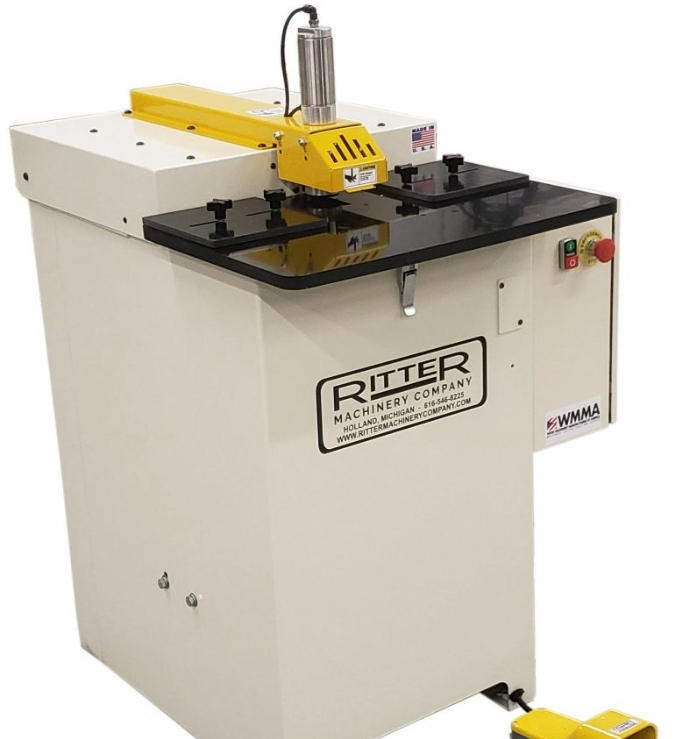

Ritter Model R2063 Low Angle Pocket Cutter
The R2063 is used for routing a single pocket hole for cabinet face frame assembly.
Standard Features
6° Low angle
PLC controlled cycle
Foot pedal operated
Adjustable Material Stops
Up to 2" thick material
Cycle Time: 1.75 - 2 Sec
Tooling Included
Technical Data and Specifications
Router Bit: 3/8" Solid Carbide, Rough Mill
Drill Bit: 9/64" Brad and Spur TiN-Coated Bit
Router: 24,500 RPM, 11 A, 1.75 HP
Drill: 31,000 RPM, 4.5 A, 7/8 HP
Air: 2 CFM at 80 - 100 PSI
Work height: 36"
Footprint: 27.75" x 20.5"
Table Area: 15.75" x 23.75"
Dust Port: 4"
